    PrevEaton 5S UPS
    NextEaton 5SC 1500i Rack2U
    Производитель: EATON

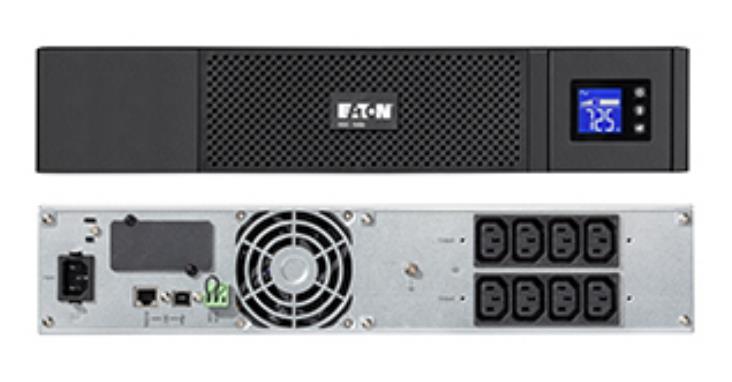

    Eaton 5SC 1000i Rack2U


    €733,34 с налогом

    Артикул: ST02194383
    Код производителя: 5SC1000IR
    Сайт производителя
    гарантия: 12 месяцы
    *
    Склад Доставка Наличие Цена
    LV
    LT
    PL
    LT
    PL

    Характеристики
    UPS стабилизаторы напряжения 1000
    гнездo (IEC320) да
    гнездo (RS232) да
    гнездo (USB) да
    Тип Line Interactive
    Выходная мощность 700
    Apparent power1000 VA
    Active power700 (Watt)
    UPS Architectureline-interactive
    Number of phases input1 (230V)
    No. of batteries1
    Chassis typeRack
    Input power portsIEC-C14
    Output power ports8 x IEC-C13
    I/O connectors1 x RS-232 (COM)
    I/O connectors1 x USB 2.0
    ColorBlack
    Dimensions

    86.2 x 440 x 405
    Weight14.96 (kilogram)
    Video
    Video
    Width540
    Height570
    Depth240
    Weight19100
    UPS topologyLine-Interactive
    Output power capacity1 kVA
    Output power700 W
    Input operation voltage (min)184 V
    Input operation voltage (max)276 V
    Input frequency45/55 Hz
    Output operation voltage (min)220 V
    Output operation voltage (max)240 V
    Output frequency50/60 Hz
    Output frequency regulation45-55 Hz (50Hz system), 55-65Hz (60Hz system)
    Noise level45 dB
    Power protection featuresOverdischarge
    AC outlet typesC13 coupler
    Power plugC14 coupler
    AC outlets quantity8 AC outlet(s)
    USB portYes
    USB 2.0 ports quantity1
    Serial interfaceYes
    Serial interface typeRS-232
    RS-232 ports1
    Form factorRackmount
    Product colourBlack
    Rack capacity2U
    SafetyIEC / EN 62040-1, UL 1778
    CertificationCE, CB report (TÜV)
    Operating temperature (T-T)0 - 40 °C
    Width440 mm
    Depth405 mm
    Height86.2 mm
    Weight15 kg
    Harmonized System (HS) code85078000
    Output voltage230 V
    Description
    Eaton 5SC1000IR. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 700 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 405 mm, Height: 86.2 mm. Output voltage: 230 V
    Description
    700 Watts | 1000 VA | Wave form type Pure sinewave | Topology LineInteractive | Input ports Single, IEC320 C14 (10AMP) | Output power connector type IEC 320 C13 | 1xRS232 | 1xUSB | Rack 2U | Colour Black
    DescriptionEATON 5SC 1000i Rack2U
    VatTypeVAT
    Weight19.560000000
    Height225.000000000
    Width545.000000000
    Length575.000000000
    Description
    EATON 5SC 1000i Rack2U
    ShortDescEaton 5SC 1000i Rack2U
    UPS Power (VA)1000 VA
    UPS Power (W)700 W
    Runtime (min)12/5
    Input Voltage (V)184V–276V
    Output Voltage (V)230V (+6/–10 %) (Adjustable to 220V/230V/240V)
    Input Frequency (Hz)
  • 45–55Hz (50Hz system)
  • 55–65Hz (60Hz system)
    		•
    Output Frequency (Hz)50/60Hz +/–0.1 % (autosensing)
    Input Connections1 IEC-320-C14
    Output Connections(8) IEC-320-C13
    Waveform TypeLine-interactive high frequency with booster + fader, pure sinewave output
    Recharge time (hours)-
    Battery TypeABM, Automatic battery test, deep discharge protection
    TopologyOnline
    USBYes
    SmartSlot-
    RJ-45-
    Other Connections
  • USB port
  • serial RS232 port
  • mini-terminal block for Remote Power Off
  • 1 slot for Network management/relay card
    		•
    Control Panel-
    Alarm-
    ColorBlack
    Form FactorRack
    Package Contents-
    Width440 mm
    Depth405 mm
    Height86.2 mm
    Net Weight14.960 Kg
    Gross Weight19.000 kg
    Gross depth (mm)575
    Gross height (mm)235
    Gross weight19.5
    Gross width (mm)545
    Net weight15.4
    Packing quantity1.00
    Paper/Pasteboard3500.00
    Plastic (No PET)600.00
    Tare weight (kg)4.10
    TI weight (kg)13.00
    Volume (m3)0.073643125
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    Embeeded batteryYes
    WEEE taxYes
    WEE classificationCL109:5:2017-04-01
    Producer product name5SC 1000i Rack2U
    UPS topologyLine-Interactive
    Capacity700
    Special featuresAutomatic Voltage Regulation (AVR); Delivers clean sinewave output; LCD display for real-time status and measurements; Reliable and affordable UPS for rack servers, networking and storage; Compatible with 500 mm depth enclosures; 1 slot for optional com card (Network management card, Relay card or Network and Industrial card); Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat); Fully integrates with Eaton Intelligent Power Manager software; 1 USB port + 1 serial port; Advanced Battery Management (ABM) technology to increase battery lifetime; Hot swappable batteries; Remote ON/OFF and remote Power OFF connectors; Cable locking system
    Capacity1000
    Form factorRack
    Producer product familyUPS
    Colour of productBlack
    Warranty24
    CertificationUL 1778, IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC, cTUVus
    Palette Qty23
    ProducerEaton
    Description
    Eaton 5SC 1000 VA Rack 2UThe Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business server in any kind of installation constraints. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, implements manageability solutions compatible with most of IT platforms and provides sinewave output for compatibility with most sensitive IT equipments.

    Характеристики
    UPS стабилизаторы напряжения 1000
    гнездo (IEC320) да
    гнездo (RS232) да
    гнездo (USB) да
    Тип Line Interactive
    Выходная мощность 700
    Apparent power1000 VA
    Active power700 (Watt)
    UPS Architectureline-interactive
    Number of phases input1 (230V)
    No. of batteries1
    Chassis typeRack
    Input power portsIEC-C14
    Output power ports8 x IEC-C13
    I/O connectors1 x RS-232 (COM)
    I/O connectors1 x USB 2.0
    ColorBlack
    Dimensions

    86.2 x 440 x 405
    Weight14.96 (kilogram)
    Video
    Video
    Width540
    Height570
    Depth240
    Weight19100
    UPS topologyLine-Interactive
    Output power capacity1 kVA
    Output power700 W
    Input operation voltage (min)184 V
    Input operation voltage (max)276 V
    Input frequency45/55 Hz
    Output operation voltage (min)220 V
    Output operation voltage (max)240 V
    Output frequency50/60 Hz
    Output frequency regulation45-55 Hz (50Hz system), 55-65Hz (60Hz system)
    Noise level45 dB
    Power protection featuresOverdischarge
    AC outlet typesC13 coupler
    Power plugC14 coupler
    AC outlets quantity8 AC outlet(s)
    USB portYes
    USB 2.0 ports quantity1
    Serial interfaceYes
    Serial interface typeRS-232
    RS-232 ports1
    Form factorRackmount
    Product colourBlack
    Rack capacity2U
    SafetyIEC / EN 62040-1, UL 1778
    CertificationCE, CB report (TÜV)
    Operating temperature (T-T)0 - 40 °C
    Width440 mm
    Depth405 mm
    Height86.2 mm
    Weight15 kg
    Harmonized System (HS) code85078000
    Output voltage230 V
    Description
    Eaton 5SC1000IR. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 700 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 405 mm, Height: 86.2 mm. Output voltage: 230 V
    Description
    700 Watts | 1000 VA | Wave form type Pure sinewave | Topology LineInteractive | Input ports Single, IEC320 C14 (10AMP) | Output power connector type IEC 320 C13 | 1xRS232 | 1xUSB | Rack 2U | Colour Black
    DescriptionEATON 5SC 1000i Rack2U
    VatTypeVAT
    Weight19.560000000
    Height225.000000000
    Width545.000000000
    Length575.000000000
    Description
    EATON 5SC 1000i Rack2U
    ShortDescEaton 5SC 1000i Rack2U
    UPS Power (VA)1000 VA
    UPS Power (W)700 W
    Runtime (min)12/5
    Input Voltage (V)184V–276V
    Output Voltage (V)230V (+6/–10 %) (Adjustable to 220V/230V/240V)
    Input Frequency (Hz)
  • 45–55Hz (50Hz system)
  • 55–65Hz (60Hz system)
    		•
    Output Frequency (Hz)50/60Hz +/–0.1 % (autosensing)
    Input Connections1 IEC-320-C14
    Output Connections(8) IEC-320-C13
    Waveform TypeLine-interactive high frequency with booster + fader, pure sinewave output
    Recharge time (hours)-
    Battery TypeABM, Automatic battery test, deep discharge protection
    TopologyOnline
    USBYes
    SmartSlot-
    RJ-45-
    Other Connections
  • USB port
  • serial RS232 port
  • mini-terminal block for Remote Power Off
  • 1 slot for Network management/relay card
    		•
    Control Panel-
    Alarm-
    ColorBlack
    Form FactorRack
    Package Contents-
    Width440 mm
    Depth405 mm
    Height86.2 mm
    Net Weight14.960 Kg
    Gross Weight19.000 kg
    Gross depth (mm)575
    Gross height (mm)235
    Gross weight19.5
    Gross width (mm)545
    Net weight15.4
    Packing quantity1.00
    Paper/Pasteboard3500.00
    Plastic (No PET)600.00
    Tare weight (kg)4.10
    TI weight (kg)13.00
    Volume (m3)0.073643125
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    Embeeded batteryYes
    WEEE taxYes
    WEE classificationCL109:5:2017-04-01
    Producer product name5SC 1000i Rack2U
    UPS topologyLine-Interactive
    Capacity700
    Special featuresAutomatic Voltage Regulation (AVR); Delivers clean sinewave output; LCD display for real-time status and measurements; Reliable and affordable UPS for rack servers, networking and storage; Compatible with 500 mm depth enclosures; 1 slot for optional com card (Network management card, Relay card or Network and Industrial card); Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat); Fully integrates with Eaton Intelligent Power Manager software; 1 USB port + 1 serial port; Advanced Battery Management (ABM) technology to increase battery lifetime; Hot swappable batteries; Remote ON/OFF and remote Power OFF connectors; Cable locking system
    Capacity1000
    Form factorRack
    Producer product familyUPS
    Colour of productBlack
    Warranty24
    CertificationUL 1778, IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC, cTUVus
    Palette Qty23
    ProducerEaton
    Description
    Eaton 5SC 1000 VA Rack 2UThe Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business server in any kind of installation constraints. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, implements manageability solutions compatible with most of IT platforms and provides sinewave output for compatibility with most sensitive IT equipments.
