PrevEaton 5SC 1500i Rack2U

NextEaton 5SC 3000i RT2U

Производитель: EATON

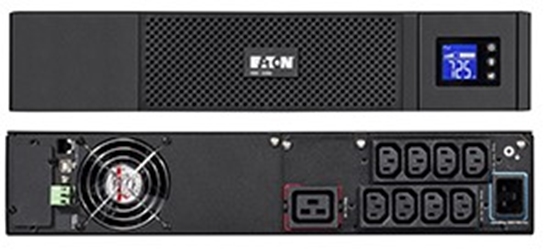

Eaton 5SC 2200i RT2U

€1409,38 с налогом

Артикул: ST02188684

Код производителя: 5SC2200iRT

Сайт производителя

гарантия: 24 месяцы

Stock *

Склад	Доставка	Наличие	Цена
PL	9 - 12 дня	1	€1409,38 с налогом
PL	8 - 15 дня	1	€1445,89 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7

UPS стабилизаторы напряжения	2200
гнездo (USB)	да
Тип	Line Interactive
гнездo (RS232)	да
Выходная мощность	1980
гнездo (IEC320)	да
Выходная мощность	1000

Apparent power	2200 VA
Active power	1980 (Watt)
UPS Architecture	line-interactive
Number of phases input	1 (230V)
No. of batteries	1
Chassis type	Rack
Input power ports	IEC-C20
Output power ports	8 x IEC-C13
Output power ports	1 x IEC-C19
I/O connectors	1 x USB 2.0
I/O connectors	1 x RS-232 (COM)
Color	Black
Dimensions	86.2 x 441 x 522
Weight	26.5 (kilogram)
Video
Video
Width	580
Height	755
Depth	185
Weight	32350

UPS topology	Line-Interactive
Output power capacity	2.2 kVA
Output power	1980 W
Input operation voltage (min)	184 V
Input operation voltage (max)	276 V
Input frequency	45/65 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency regulation	50/60 Hz
Noise level	45 dB
Power protection features	Overdischarge
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
AC outlets quantity	9 AC outlet(s)
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
Serial ports quantity	1
Automatic battery test	Yes
Form factor	Rackmount/Tower
Product colour	Black
Display type	LED
Certification	IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, CB (TUV)
Operating temperature (T-T)	0 - 40 °C
Width	441 mm
Depth	552 mm
Height	86.2 mm
Weight	26.5 kg
Harmonized System (HS) code	85078000
Description
Description	Eaton 5SC2200IRT. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Form factor: Rackmount/Tower, Product colour: Black, Display type: LED. Width: 441 mm, Depth: 552 mm, Height: 86.2 mm

Description
	1980 Watts \| 2200 VA \| Wave form type Sinewave \| Input ports Single, IEC320 C20 (16AMP) \| Output power connector type IEC 320 C13, IEC 320 C19 \| 1xRS232 \| 1xUSB \| Colour Black

Description	EATON 5SC 2200i RT2U
VatType	VAT
Weight	32.500000000
Height	190.000000000
Width	590.000000000
Length	745.000000000
Description
Description	EATON 5SC 2200i RT2U 2200VA/1980W 1000W 5min Runtime

ShortDesc	Eaton 5SC 2200i RT2U
UPS Power (VA)	2200 VA
UPS Power (W)	1980 W
Runtime (min)	7/2
Input Voltage (V)	230V
Output Voltage (V)	230V (+6/–10 %) (Adjustable to 220V/230V/240V)
Input Frequency (Hz)	45–55Hz (50Hz system) 55–65Hz (60Hz system)
Output Frequency (Hz)	50/60Hz +/–0.1 % (autosensing)
Input Connections	IEC-320-C20
Output Connections	(8) IEC-320-C13 IEC-320-C19
Waveform Type	-
Recharge time (hours)	-
Battery Type	-
Topology	Online
USB	Yes
SmartSlot	-
RJ-45	-
Other Connections	USB RS232 serial (USB and RS232 ports cannot be used simultaneously) Mini terminal block for remote ON/OFF and Remote Power Off Slot for Network management card or Relay card
Control Panel	Multilingual graphical LCD display
Alarm	-
Color	-
Form Factor	Rack Tower
Package Contents	-
Width	441 mm
Depth	522 mm
Height	86.2 mm
Net Weight	26.500 Kg
Gross Weight	33.000 kg
Description
Description	03-07 (296)

Gross depth (mm)	750.00
Gross height (mm)	190.00
Gross weight	33.00
Gross width (mm)	580.00
Net weight	26.50
Packing quantity	1.00
Paper/Pasteboard	6000.00
Plastic (No PET)	500.00
Tare weight (kg)	6.50
Volume (m3)	0.08
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:5:2017-04-01
TI weight (kg)	2.30
Palette Qty	14
Producer product name	5SC 2200i RT2U
UPS topology	Line-Interactive
Capacity	1980
Capacity	2200
Form factor	2U
Producer product family	UPS
Colour of product	Black
Warranty	24
Electrical output connections	IEC
Producer	Eaton
