PrevGIGABYTE B760M D3HP LGA1700...

NextGIGABYTE B760M D3HP WIFI6 M...

Производитель: GIGABYTE

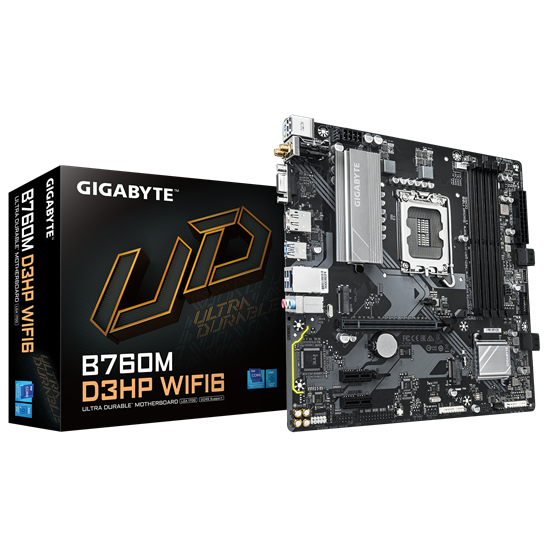

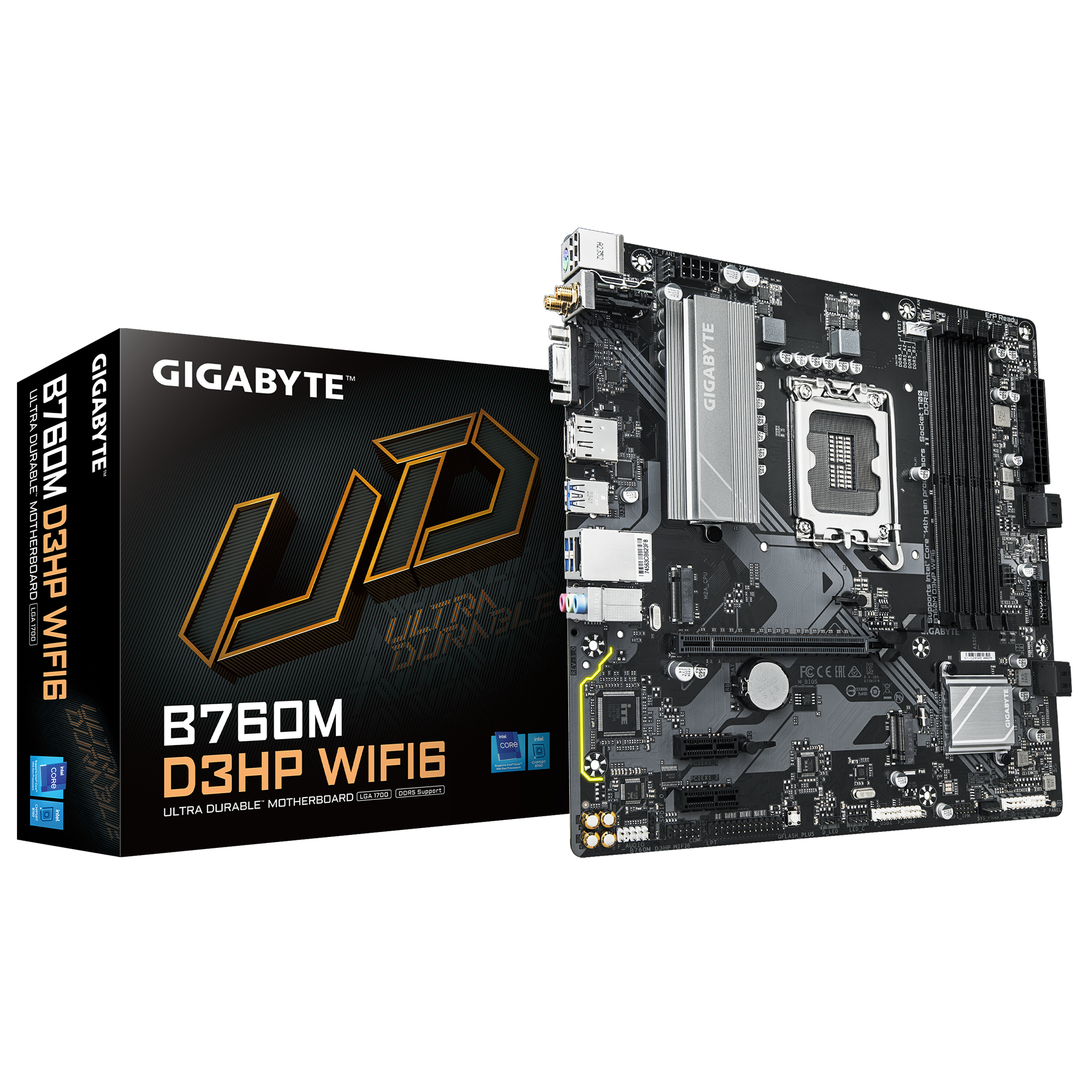

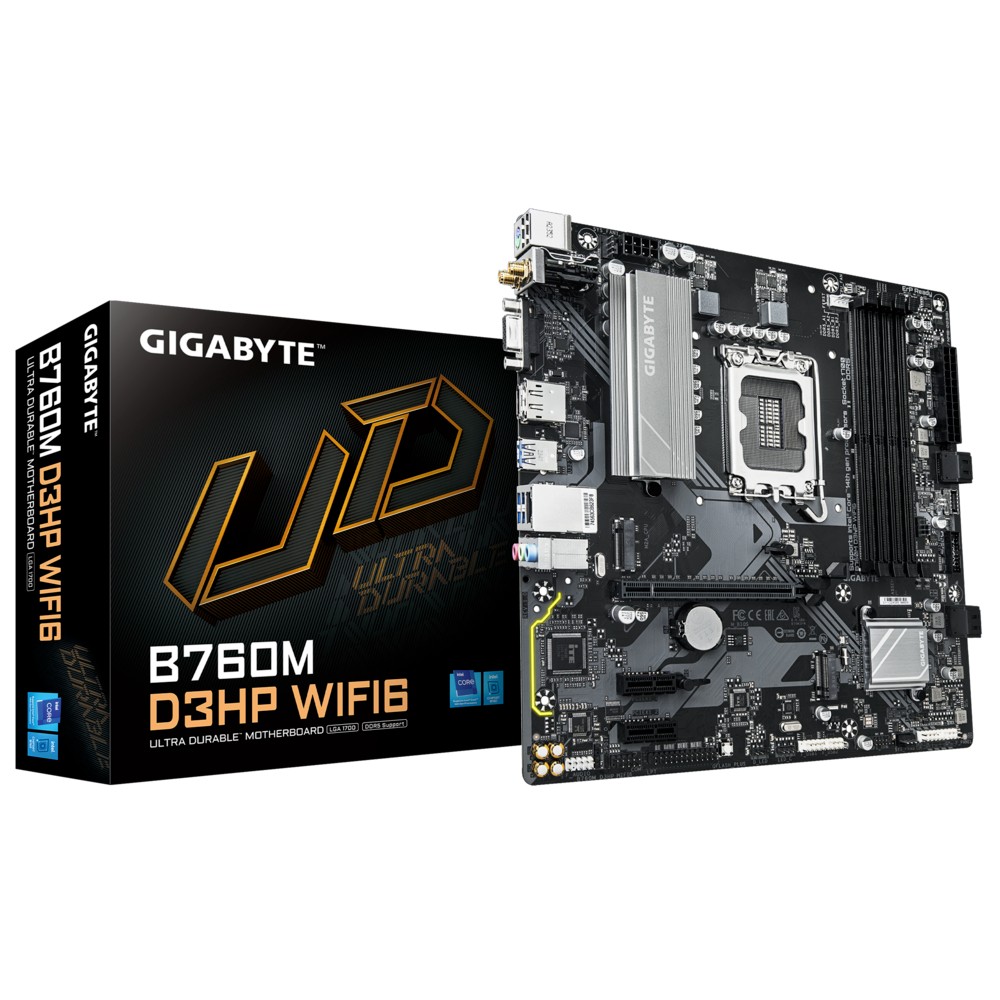

GIGABYTE B760M D3HP WIFI6 LGA1700 MB

€141,26 с налогом

Артикул: ST08976935

Код производителя: B760M D3HP WIFI6

Сайт производителя

гарантия: 36 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	LV	2 - 5 дня	10	€141,26 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3
Details 4

Разъём процессора (Socket)	LGA 1700
Видеоинтерфейс	HDMI
Form Factor	mATX
Видеоинтерфейс	DisplayPort
Видеоинтерфейс	D-Sub

Model	B760M D3HP WIFI6
CPU socket	LGA1700
Processor family	Intel Pentium Gold
Processor family	Intel Core
Processor family	Intel Celeron
Generation	Fourteenth
Generation	Thirteenth
Generation	Twelve
Integrated CPU	No
Chipset manufacturer	Intel
Chipset type	Intel B760 Express Chipset
Memory type	DDR5
Number of DDR5 slots	4
Memory bus frequency	5200 MHz
Memory bus frequency	4800 MHz
Memory bus frequency	5600 MHz
Memory bus frequency	4400 MHz
Max memory size	192 (GigaBajt)
Expansion slots	1 x PCIe 4.0 x 16
Expansion slots	2 x PCIe 3.0 x 1
Expansion slots	2 x M.2
Max. number of SATA devices	4
RAID	Yes
Detailed data on disk/drive interfaces	CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 Złącza SATA CPU 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics	Zintegrowany procesor graficzny - obsługa Intel HD Graphics 1 x port D-Sub, obsługujący maksymalną rozdzielczość 1920x1200@60 Hz 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz * Obsługa wersji HDMI 2.1 i HDCP 2.3. ** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS. 1 x DisplayPort, obsługujący maksymalną rozdzielczość 4096x2304@60 Hz * Obsługa wersji DisplayPort 1.2 i HDCP 2.3.
Sound card	Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1 Wsparcie dla S/PDIF Out
Network interface	Bluetooth
Network interface	Wi-Fi 802.11a/b/g/n/ac/ax
Network interface	1 x 10/100/1000 Mbit/s
Network interface	LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Moduł komunikacji bezprzewodowej Realtek Wi-Fi 6 RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 80MHz wireless standard
USB ports at back panel	5
USB ports on motherboard	7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports	0
FireWire (IEEE 1394)	No
COM connector / port	Yes
LPT connector / port	No
External connectors	3 x USB 3.2 Gen 1 Type-A
External connectors	2 x SMA
External connectors	1 x Line Out
External connectors	1 x MIC
External connectors	1 x RJ-45
External connectors	1 x PS/2 Keyboard/MouseCombo
External connectors	1 x D-Sub
External connectors	1 x DisplayPort
External connectors	1 x HDMI
External connectors	1 x Line In
External connectors	2 x USB 2.0
Onboard connectors	1 x Addressable LED
Onboard connectors	2 x USB 2.0/1.1 header
Onboard connectors	1 x USB 3.2 Gen 1 Type-A
Onboard connectors	1 x USB 3.2 Gen 1 Type-C
Onboard connectors	1 x Serial port header
Onboard connectors	1 x Parallel port header
Onboard connectors	1 x TPM header
Onboard connectors	1 x System panel header
Onboard connectors	1 x Front panel audio header
Onboard connectors	1 x S/PDIF Out header
Onboard connectors	1 x Clear CMOS jumper
Onboard connectors	1 x 8pin 12V power
Onboard connectors	1 x 4pin CPU fan
Onboard connectors	3 x 4pin Chassis fan
Onboard connectors	1 x Reset jumper
Onboard connectors	1 x RGB LED strip header
Onboard connectors	1 x Q-Flash Plus button
Onboard connectors	1 x 24pin ATX zasilanie
Onboard connectors	2 x M.2
Onboard connectors	4 x SATA III 6Gb/s
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor	micro ATX
Dimensions	24.4 x 17.4 cm
Supported operating systems	Windows 10
Supported operating systems	Windows 11
Software	Norton Internet Security (wersja OEM) LAN bandwidth management software
Designation	CE+WEEE
Width	273
Height	268
Depth	70
Weight	1060
Description
Description	Supports Intel Core 14th/ 13th /12th processors Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution Dual Channel DDR5: 4DIMMs XMP Memory Module Support Next Generation Storage: 2PCIe 4.0 x4 M.2 Connectors Fast Networks: Wi-Fi 6 802.11ax, GbE LAN Extended Connectivity: Front USB-C 5Gb/s, DP, HDMI, D-Sub Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Description	GIGABYTE B760M D3HP WIFI6 LGA1700 MB
VatType	VAT
Weight	1.000000000
Height	70.000000000
Width	270.000000000
Length	280.000000000
Description
Description	GIGABYTE B760M D3HP WIFI6 LGA1700 4xDDR5 mATX HDMI DP D-SUB USB MB

Gross depth (mm)	244.00
Gross depth (mm)	244.00
Gross height (mm)	43.00
Gross height (mm)	43.00
Gross weight	0.80
Gross width (mm)	244.00
Gross width (mm)	244.00
Net weight	0.60
Tare weight (kg)	0.20
Tare weight (kg)	0.20
Volume (m3)	0.00
Volume (m3)	0.00

Характеристики

1
Details 2
Details 3
Details 4

Разъём процессора (Socket)	LGA 1700
Видеоинтерфейс	HDMI
Form Factor	mATX
Видеоинтерфейс	DisplayPort
Видеоинтерфейс	D-Sub

Model	B760M D3HP WIFI6
CPU socket	LGA1700
Processor family	Intel Pentium Gold
Processor family	Intel Core
Processor family	Intel Celeron
Generation	Fourteenth
Generation	Thirteenth
Generation	Twelve
Integrated CPU	No
Chipset manufacturer	Intel
Chipset type	Intel B760 Express Chipset
Memory type	DDR5
Number of DDR5 slots	4
Memory bus frequency	5200 MHz
Memory bus frequency	4800 MHz
Memory bus frequency	5600 MHz
Memory bus frequency	4400 MHz
Max memory size	192 (GigaBajt)
Expansion slots	1 x PCIe 4.0 x 16
Expansion slots	2 x PCIe 3.0 x 1
Expansion slots	2 x M.2
Max. number of SATA devices	4
RAID	Yes
Detailed data on disk/drive interfaces	CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 Złącza SATA CPU 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics	Zintegrowany procesor graficzny - obsługa Intel HD Graphics 1 x port D-Sub, obsługujący maksymalną rozdzielczość 1920x1200@60 Hz 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz * Obsługa wersji HDMI 2.1 i HDCP 2.3. ** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS. 1 x DisplayPort, obsługujący maksymalną rozdzielczość 4096x2304@60 Hz * Obsługa wersji DisplayPort 1.2 i HDCP 2.3.
Sound card	Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1 Wsparcie dla S/PDIF Out
Network interface	Bluetooth
Network interface	Wi-Fi 802.11a/b/g/n/ac/ax
Network interface	1 x 10/100/1000 Mbit/s
Network interface	LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Moduł komunikacji bezprzewodowej Realtek Wi-Fi 6 RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 80MHz wireless standard
USB ports at back panel	5
USB ports on motherboard	7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports	0
FireWire (IEEE 1394)	No
COM connector / port	Yes
LPT connector / port	No
External connectors	3 x USB 3.2 Gen 1 Type-A
External connectors	2 x SMA
External connectors	1 x Line Out
External connectors	1 x MIC
External connectors	1 x RJ-45
External connectors	1 x PS/2 Keyboard/MouseCombo
External connectors	1 x D-Sub
External connectors	1 x DisplayPort
External connectors	1 x HDMI
External connectors	1 x Line In
External connectors	2 x USB 2.0
Onboard connectors	1 x Addressable LED
Onboard connectors	2 x USB 2.0/1.1 header
Onboard connectors	1 x USB 3.2 Gen 1 Type-A
Onboard connectors	1 x USB 3.2 Gen 1 Type-C
Onboard connectors	1 x Serial port header
Onboard connectors	1 x Parallel port header
Onboard connectors	1 x TPM header
Onboard connectors	1 x System panel header
Onboard connectors	1 x Front panel audio header
Onboard connectors	1 x S/PDIF Out header
Onboard connectors	1 x Clear CMOS jumper
Onboard connectors	1 x 8pin 12V power
Onboard connectors	1 x 4pin CPU fan
Onboard connectors	3 x 4pin Chassis fan
Onboard connectors	1 x Reset jumper
Onboard connectors	1 x RGB LED strip header
Onboard connectors	1 x Q-Flash Plus button
Onboard connectors	1 x 24pin ATX zasilanie
Onboard connectors	2 x M.2
Onboard connectors	4 x SATA III 6Gb/s
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor	micro ATX
Dimensions	24.4 x 17.4 cm
Supported operating systems	Windows 10
Supported operating systems	Windows 11
Software	Norton Internet Security (wersja OEM) LAN bandwidth management software
Designation	CE+WEEE
Width	273
Height	268
Depth	70
Weight	1060
Description
Description	Supports Intel Core 14th/ 13th /12th processors Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution Dual Channel DDR5: 4DIMMs XMP Memory Module Support Next Generation Storage: 2PCIe 4.0 x4 M.2 Connectors Fast Networks: Wi-Fi 6 802.11ax, GbE LAN Extended Connectivity: Front USB-C 5Gb/s, DP, HDMI, D-Sub Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Description	GIGABYTE B760M D3HP WIFI6 LGA1700 MB
VatType	VAT
Weight	1.000000000
Height	70.000000000
Width	270.000000000
Length	280.000000000
Description
Description	GIGABYTE B760M D3HP WIFI6 LGA1700 4xDDR5 mATX HDMI DP D-SUB USB MB

Gross depth (mm)	244.00
Gross depth (mm)	244.00
Gross height (mm)	43.00
Gross height (mm)	43.00
Gross weight	0.80
Gross width (mm)	244.00
Gross width (mm)	244.00
Net weight	0.60
Tare weight (kg)	0.20
Tare weight (kg)	0.20
Volume (m3)	0.00
Volume (m3)	0.00
