Processor manufacturer | Intel |
Processor socket | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
Maximum number of SMP processors | 1 |
Supported processor sockets | LGA 1700 |
Supported memory types | DDR4-SDRAM |
Number of memory slots | 2 |
Maximum internal memory | 64 GB |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Non-ECC | Yes |
Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
Supported memory clock speed (max) | 3200 MHz |
Supported storage drive interfaces | M.2, SATA III |
RAID support | Yes |
RAID levels | 0, 1, 5, 10 |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Number of SATA III connectors | 4 |
Front panel audio connector | Yes |
Front panel connector | Yes |
ATX Power connector (24-pin) | Yes |
CPU fan connector | Yes |
EPS power connector (8-pin) | Yes |
TPM connector | Yes |
Serial port headers | 1 |
RGB LED pin header | Yes |
USB 2.0 ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Ethernet LAN (RJ-45) ports | 1 |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
HDMI version | 1.4 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Wi-Fi | No |
Ethernet LAN | Yes |
Ethernet interface type | Gigabit Ethernet |
Component for | PC |
Motherboard form factor | micro ATX |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B760 Express |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC897 |
Power source type | ATX |
Windows operating systems supported | Windows 10, Windows 11 |
PCI Express x16 (Gen 4.x) slots | 1 |
Number of M.2 (M) slots | 2 |
BIOS type | UEFI AMI |
BIOS memory size | 128 Mbit |
ACPI version | 5.0 |
Clear CMOS jumper | Yes |
Desktop Management Interface (DMI) version | 2.7 |
System Management BIOS (SMBIOS) version | 2.7 |
Width | 230 mm |
Depth | 215 mm |
Description |

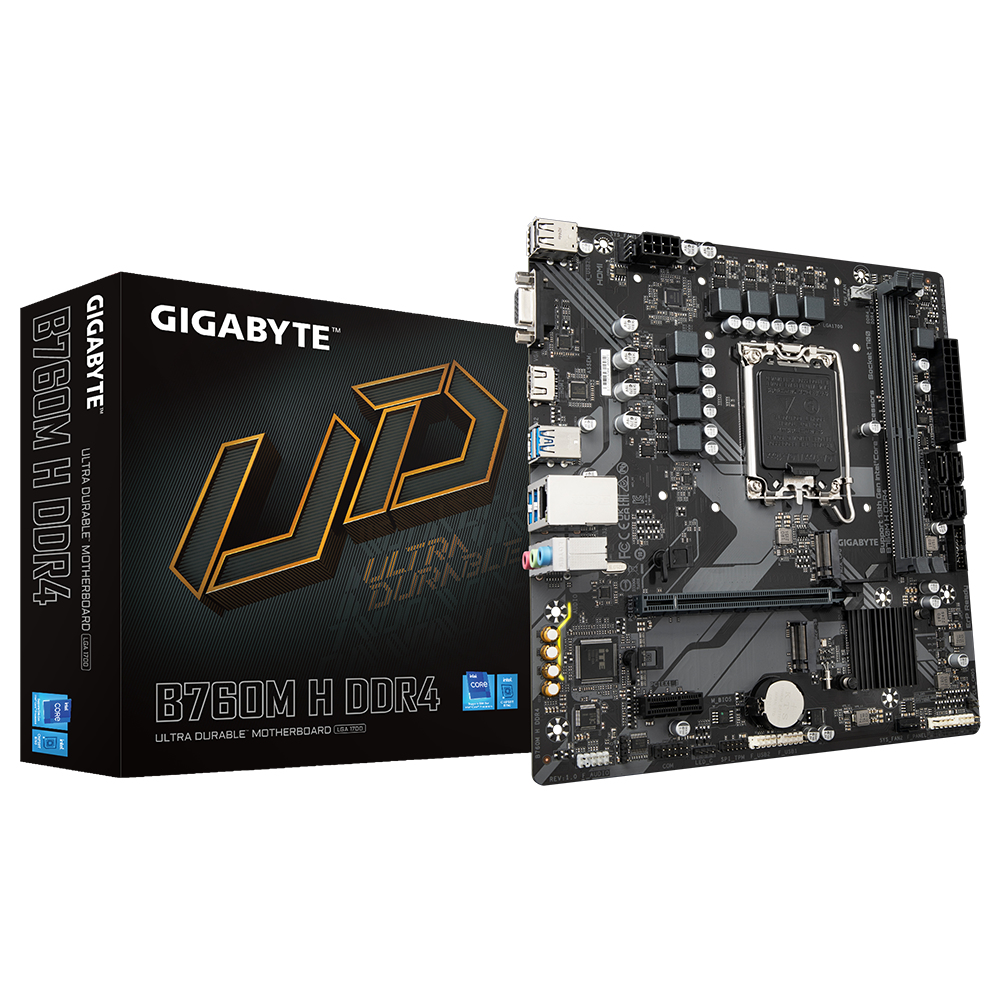

Gigabyte B760M H DDR4 (rev. 1.0). Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel |
