Switch type | Unmanaged |
Basic switching RJ-45 Ethernet ports quantity | 16 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Installed SFP modules quantity | 2 |
Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
10G support | N |
Copper ethernet cabling technology | 100BASE-TX,1000BASE-T |
Cable types supported | Cat5,Cat5e |
Full duplex | Y |
Flow control support | Y |
Auto MDI/MDI-X | Y |
Auto-sensing | Y |
MAC address table | 8192 entries |
Switching capacity | 36 Gbit/s |
Store-and-forward | Y |
Packet forwarding rate (1 Gbps) | 1488000 pps |
Packet forwarding rate (100 Mbps) | 148800 pps |
Packet forwarding rate (10 Mbps) | 14880 pps |
Packet buffer memory | 0.5 MB |
Rack mounting | Y |
Stackable | N |
Product colour | Black |
Housing material | Metal |
LED indicators | Activity, Link, PoE, Power, Speed |
Number of fans | 2 fan(s) |
Certification | FCC A, CE, RoHS |
Noise level | 21.3 dB |
Mean time between failures (MTBF) | 144000 h |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (max) | 420 W |
Power protection features | Over voltage, Overload, Short circuit |
Power over Ethernet (PoE) | Y |
Power over Ethernet plus (PoE+) ports quantity | 16 |
Power over Ethernet (PoE) power per port | 30 W |
Total Power over Ethernet (PoE) budget | 370 W |
Operating temperature (T-T) | 0 - 45 °C |
Storage temperature (T-T) | -10 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Width | 441.1 mm |
Depth | 204.3 mm |
Height | 44 mm |
Weight | 4 kg |
Cables included | AC |
Manual | Y |
Rack mount kit | Y |
Description |

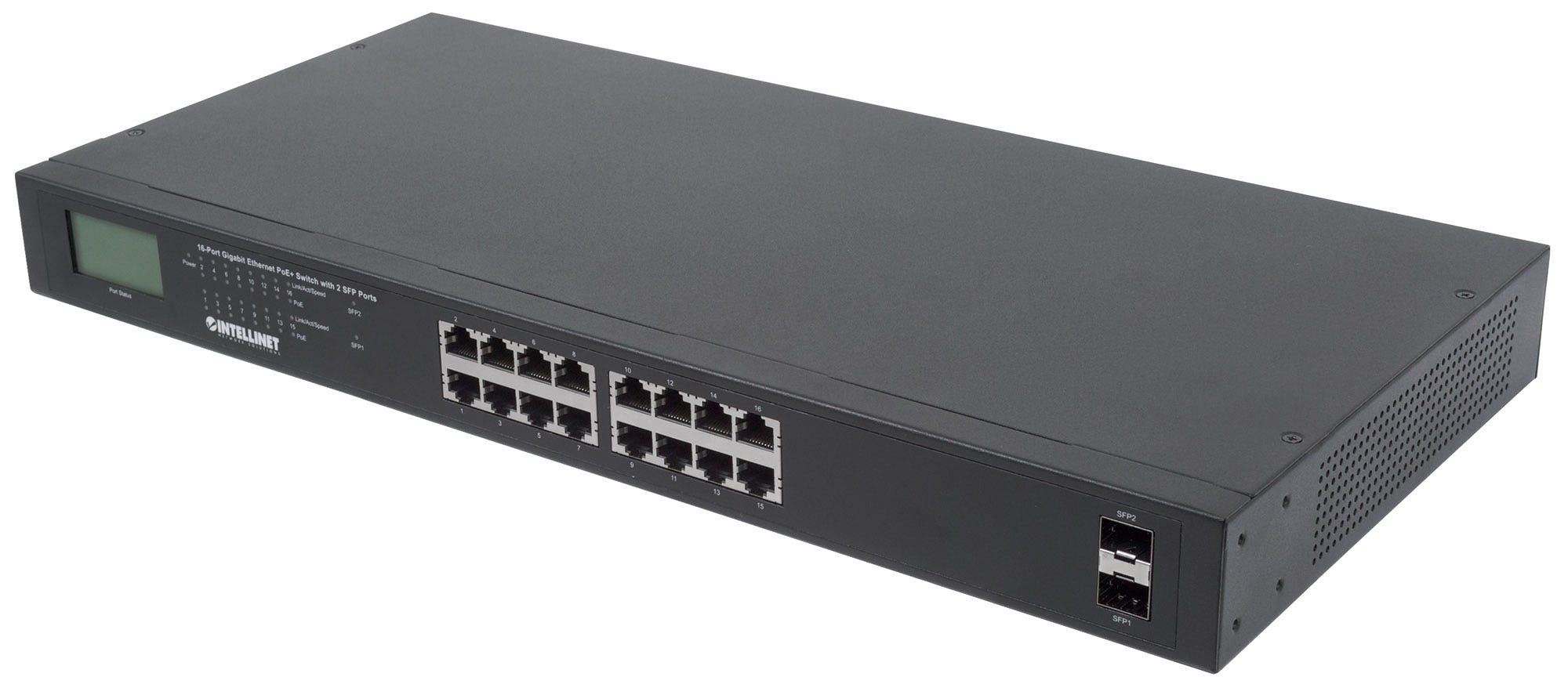

Intellinet 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports, LCD Display, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 370 W, Endspan, 19" Rackmount (Euro 2-pin plug). Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8192 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x. Power over Ethernet (PoE). Rack mounting |
