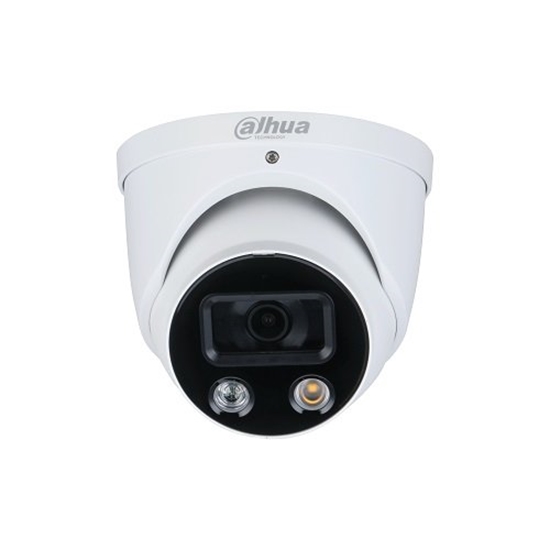

Dahua HDW3449H-AS-PV-S3 IP Network camera 4MP / 3.6mm

Camera:

• Image Sensor: 1/2.7" CMOS
• Max. Resolution: 2688 (H) × 1520 (V)
• ROM: 128 MB
• RAM: 512 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination:
  • 0.003 lux@F1.0 (Color, 30 IRE)
  • 0.0003 lux@F1.0 (B/W, 30 IRE)
  • 0 lux (illuminator on)
• S/N Ratio: > 56 dB
• Illumination Distance:
  • 30 m (98.43 ft) (IR)
  • 30 m (98.43 ft) (warm light)
• Illuminator On/Off Control: Auto; manual
• Illuminator Number:
  • 1 (IR LED)
  • 1 (warm light)
• Pan/Tilt/Rotation Range:
  • Pan: 0°–360°
  • Tilt: 0°–78°
  • Rotation: 0°–360°

Lens:

• Lens Type: Fixed-focal
• Mount Type: M12
• Focal Length: 3.6 mm
• Field of View:
  • 3.6 mm: Horizontal: 82°× Vertical: 44°× Diagonal: 96°
• Iris Type: Fixed
• Close Focus Distance:
  • 3.6 mm: 2.2 m (7.22 ft)

DORI Distance (Lens Performance):

• Detect: 78.0 m (255.91 ft)
• Observe: 31.2 m (102.36 ft)
• Recognize: 15.6 m (51.18 ft)
• Identify: 7.8 m (25.59 ft)

Professional, Intelligent Features:

• IVS (Perimeter Protection): Tripwire; intrusion (Supports classification and accurate detection of vehicles and humans)
• SMD 3.0: Less false alarm, longer detection distance
• Intelligent Search: Works with Smart NVR to refine intelligent search, event extraction, and merging of event videos.

Video:

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub-stream)
• Smart Codec: Smart H.265+; Smart H.264+
• AI Coding: AI H.265; AI H.264
• Video Frame Rate:
  • Main stream: 2688 × 1520 @ (1 fps–30 fps)
  • Sub stream: 704 × 576 @ (1 fps–25 fps) / 704 × 480 @ (1 fps–30 fps)
  • Third stream: 1920 × 1080 @ (1 fps–30 fps)
• Stream Capability: 3 streams
• Resolution:
  • 4M (2688 × 1520 / 2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate:
  • H.264: 3 kbps–20480 kbps
  • H.265: 3 kbps–20480 kbps
• Day/Night: Auto (ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
• Scene Self-adaptation: Yes
• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control: Auto; manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas)
• Region of Interest (RoI): Yes (4 areas)
• Smart Illumination: Yes
• Defog: Yes
• Image Rotation: 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower)
• Mirror: Yes
• Privacy Masking: 8 areas

Audio:

• Built-in MIC: Yes
• Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723

Alarm:

• Alarm Events: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network:

• Network: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
• Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
• Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
• User/Host: 20 (Total bandwidth: 72 M)
• Storage: FTP; SFTP; Micro SD card (Supports max. 256 G); NAS
• Browser: IE8/9/11, Chrome, Firefox
• Management Software: Smart PSS; DSS; DMSS
• Mobile Phone: iOS; Android

Certification:

• Certification:
  • CE-LVD: EN 62368-1
  • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
  • FCC: 47 CFR FCC Part 15, Subpart B
  • UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
