Изображение Lindy 20m Fibre Optic Hybrid DisplayPort 1.2 to HDMI 18G Cable

Производитель: LINDY

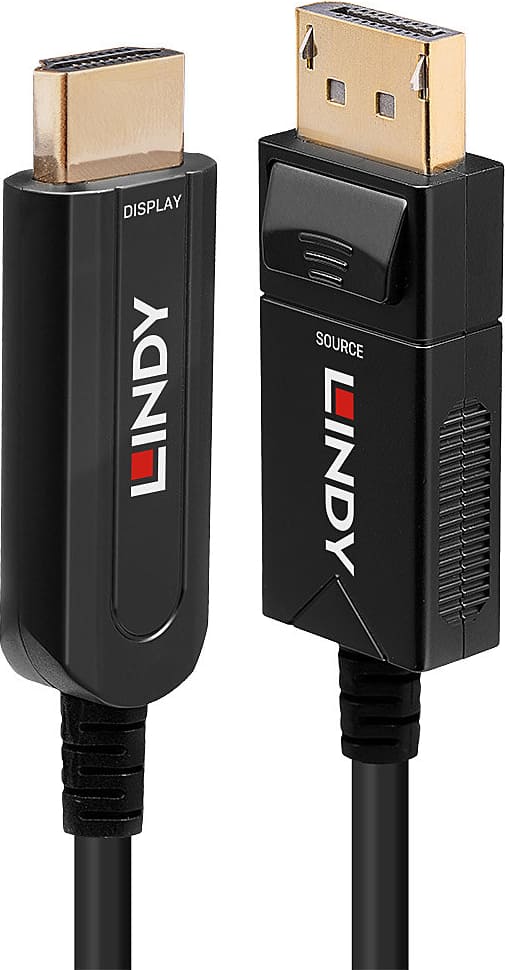

Lindy 20m Fibre Optic Hybrid DisplayPort 1.2 to HDMI 18G Cable

€319,05 с налогом

Артикул: ST08542102

Код производителя: 38491

Сайт производителя

гарантия: 12 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	LV	7 - 12 дня	31	€319,05 с налогом
	PL	8 - 15 дня	4	€337,06 с налогом

Количество:

Specifications

Характеристики

1
Details 2

Свойства	HDMI
Свойства	Display port
цвет	Черный
цвет	Золотой
Длина кабеля (м.)	4.0 m - 4.8 m

weight

181 g

gross weight

1.05

height

34 mm

width

70 mm

depth

39 mm

input voltage

100 - 240 V

country of origin

CN

product colour

Black

operating temperature (t-t)

0 - 40 °C

storage temperature (t-t)

-20 - 70 °C

operating relative humidity (h-h)

0 - 75%

storage relative humidity (h-h)

0 - 95%

certification

EMC LVD ErP UL CCC RCM PSE RoHS REACH California Proposition 65

harmonized system (hs) code

85044095

quantity per pack

1 pc(s)

housing material

Plastic

output voltage

8.55 - 9.45 V

output current

2 A

power supply type

Indoor

output power

18 W

input frequency

50/60 Hz

adjustable output voltage

Yes

power current type

AC-to-DC

net weight

0.79

packaging height

7.40

packaging lenght

23.70

packaging width

22.70

warranty

2

variation of

38490

manuals

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/91/67/97/62/62976791999c8d635dc13d1d/Lindy_38490-4_Man_0121.pdf

Description

Connectors:

Connector A: DisplayPort Male
Connector B: HDMI® Type A Male
Housing Material: Zinc Alloy
Connector Plating: Gold Plated
Pin Construction: Phosphor Bronze
Pin Plating: Gold Plated
Dimensions (approx.) WxDxH:

DisplayPort Connector: 42x20x10mm (1.65x0.79x0.39in)

HDMI® Connector: 44.5x20x10mm (1.75x0.79x0.39in)

Cable Construction:

Length: 20m (65.62ft)
Standard: DisplayPort 1.2, HDMI® 2.0
Colour: Black
Type: Round
Jacket Diameter: 4.5mm (0.18in)
Jacket Material: PVC
Conductor Material: Gold Plated Copper

Specifications:

Supported Bandwidth: 21.6Gbps
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
Nominal Attenuation: -1dB~-2dB
Minimum Bend Radius: 45mm (1.77in)
Operating Temperature: 0°C - 50°C (32°F - 122°F)
Storage Temperature: -40°C - 70°C (-40°F - 158°F)

Miscellaneous:

Packaging Type: Carton Box
Warranty (Years): 2
Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65
No.: 38491
EAN: 4002888384919

This product is also available in other lengths:

38490 - 10m (32.81ft)
38491 - 20m (65.62ft)
38492 - 30m (98.42ft)
38493 - 40m (131.23ft)
38494 - 50m (164.04ft)

Manuals: Lindy_38490-4_Man_0121.pdf
