Производитель: INTELLINET NETWORK SOLUTIONS

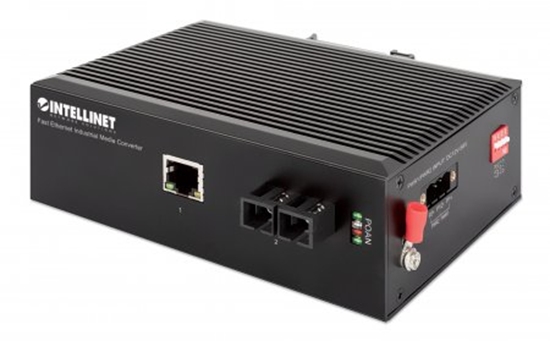

Intellinet Industrial Fast Ethernet Media Converter, 100Base-TX to 100Base-FX (SC) Single-mode, 20 km, IP40-rated Metal Housing, DIN-rail Mount

€137,69 с налогом

Артикул: ST07284095

Код производителя: 508322

Сайт производителя

гарантия: 24 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	PL	8 - 15 дня	1	€137,69 с налогом

Количество:

Характеристики

Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Jumbo frames support	Yes
Cable types supported	Cat5e
Supported network protocols	UTP/STP
Terminal block port	Yes
Maximum transfer distance	20000 m
Wavelength	1310 nm
Fiber mode structure	Single-mode
Fiber cable diameters supported (core/cladding)	8/125,8.3/125,8.7/125,10/125 µm
Tx power (min)	-9 dBmW
Tx power (max)	-3 dBmW
Internal	No
LED indicators	Yes
Product colour	Black
Housing material	Metal
Certification	FCC Class B, CE, RoHS
Input voltage	12 - 58 V
Width	104 mm
Depth	143 mm
Height	48 mm
Weight	600 g
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 90%
Manual	Yes
Harmonized System (HS) code	85176990
Description
Description	Intellinet Industrial Fast Ethernet Media Converter, 100Base-TX to 100Base-FX (SC) Single-mode, 20 km, IP40-rated Metal Housing, DIN-rail Mount. Networking standards: IEEE 802.3, IEEE 802.3u, Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black, Housing material: Metal, Certification: FCC Class B, CE, RoHS. Input voltage: 12 - 58 V. Width: 104 mm, Depth: 143 mm, Height: 48 mm

Характеристики

Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Jumbo frames support	Yes
Cable types supported	Cat5e
Supported network protocols	UTP/STP
Terminal block port	Yes
Maximum transfer distance	20000 m
Wavelength	1310 nm
Fiber mode structure	Single-mode
Fiber cable diameters supported (core/cladding)	8/125,8.3/125,8.7/125,10/125 µm
Tx power (min)	-9 dBmW
Tx power (max)	-3 dBmW
Internal	No
LED indicators	Yes
Product colour	Black
Housing material	Metal
Certification	FCC Class B, CE, RoHS
Input voltage	12 - 58 V
Width	104 mm
Depth	143 mm
Height	48 mm
Weight	600 g
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 90%
Manual	Yes
Harmonized System (HS) code	85176990
Description
Description	Intellinet Industrial Fast Ethernet Media Converter, 100Base-TX to 100Base-FX (SC) Single-mode, 20 km, IP40-rated Metal Housing, DIN-rail Mount. Networking standards: IEEE 802.3, IEEE 802.3u, Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black, Housing material: Metal, Certification: FCC Class B, CE, RoHS. Input voltage: 12 - 58 V. Width: 104 mm, Depth: 143 mm, Height: 48 mm
