Производитель: LEVELONE

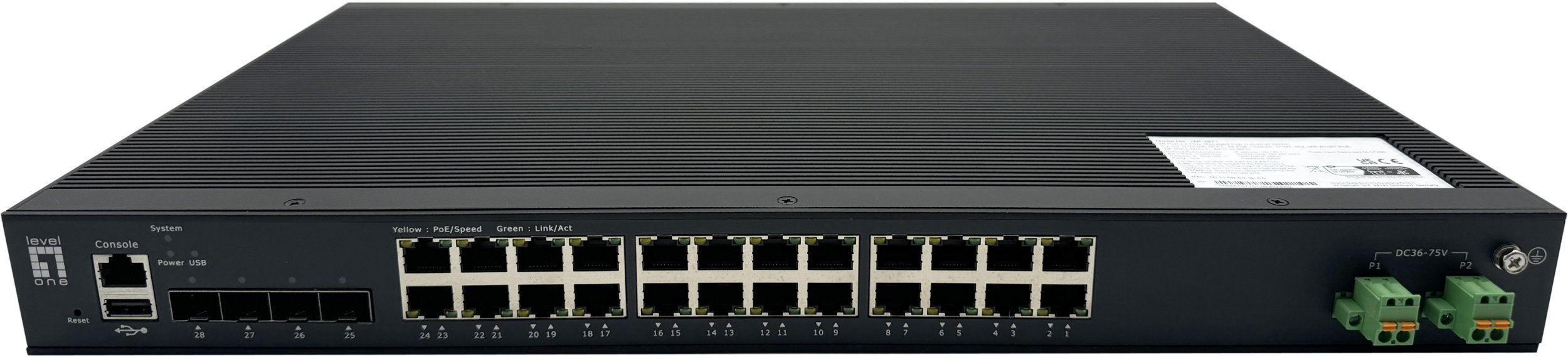

Level One LevelOne IXP-2871 tīkla pārslēgs Vadīts L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Melns

€1395,00 с налогом

Артикул: ST09601369

Код производителя: IXP-2871

Сайт производителя

гарантия: 12 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	LV	7 - 12 дня	2	€1395,00 с налогом

Количество:

Specifications

Характеристики

power over ethernet (poe)

Yes

international protection (ip) code

IP40

telnet

Yes

ethernet ring protection switching (erps)

Yes

dying gasp

Yes

weight

4.14 kg

height

45 mm

width

440 mm

depth

280 mm

switch type

Managed

country of origin

China

switch layer

L2+

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

gigabit ethernet (copper) ports quantity

networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

Yes

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

16000 entries

switching capacity

128 Gbit/s

forwarding rate

190.4 Mpps

packet buffer memory

12 MB

access control list (acl)

Yes

mac address filtering

Yes

multicast support

Yes

rack mounting

Yes

product colour

Black

led indicators

Fault, PoE, Power, Status, USB

mean time between failures (mtbf)

200000 h

power consumption (max)

402 W

power over ethernet (poe) ports quantity

total power over ethernet (poe) budget

370 W

operating temperature (t-t)

-40 - 80 °C

storage temperature (t-t)

-40 - 85 °C

operating relative humidity (h-h)

10 - 90%

storage relative humidity (h-h)

5 - 95%

package width

525 mm

package depth

390 mm

package height

95 mm

package weight

4.8 kg

harmonized system (hs) code

851762

compliance certificates

UKCA, Federal Communications Commission (FCC), RoHS, CE

power source

DC/PoE

cables included

LAN (RJ-45) to DB9

master (outer) case gross weight

10.6 kg

pallet gross height

177.6 cm

master (outer) case width

535 mm

master (outer) case length

205 mm

master (outer) case height

408 mm

products per master (outer) case

2 pc(s)

pallet gross width

120 cm

pallet gross length

80 cm

jumbo frames support

Yes

power consumption (typical)

32 W

security algorithms

HTTPS

quick start guide

Yes

jumbo frames

16000

igmp snooping

Yes

rack mount kit

Yes

surge protection

Yes

spanning tree protocol

Yes

fanless

Yes

power over ethernet (poe) type supported

PoE+, PoE++ (4PPoE)

static route

Yes

vlan support

Yes

system event log

Yes

sfp+ module slots quantity

broadcast storm control

Yes

rate limiting

Yes

dhcp features

DHCP server

ssh/ssl support

Yes

redundant power supply (rps) support

Yes

virtual lan features

IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping

loop protection

Yes

terminal block port

Yes

console port

RJ-45

power over ethernet (poe) power per port

90 W

arp inspection

Yes

cable length detection

Yes

terminal block included

Yes

configuring location settings (cli)

Yes

ip-mac-port binding

Yes

password protection

Yes

garp vlan registration protocol (gvrp)

Yes

authentication type

IEEE 802.1x

port trunking

Yes

surge protection voltage

6 kV

mac address entries

Dynamic MAC address entries, Static MAC address entries

usb type-a ports quantity

Description

LevelOne IXP-2871. Slēdža tips: Vadīts, Slēdža līmenis: L2+. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24, Konsoles pieslēgvieta: RJ-45. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 128 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Statņa montāža
