Производитель: LINDY

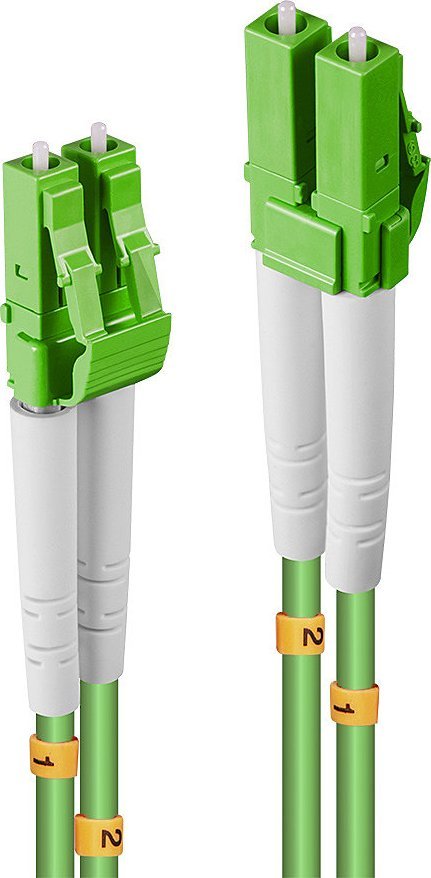

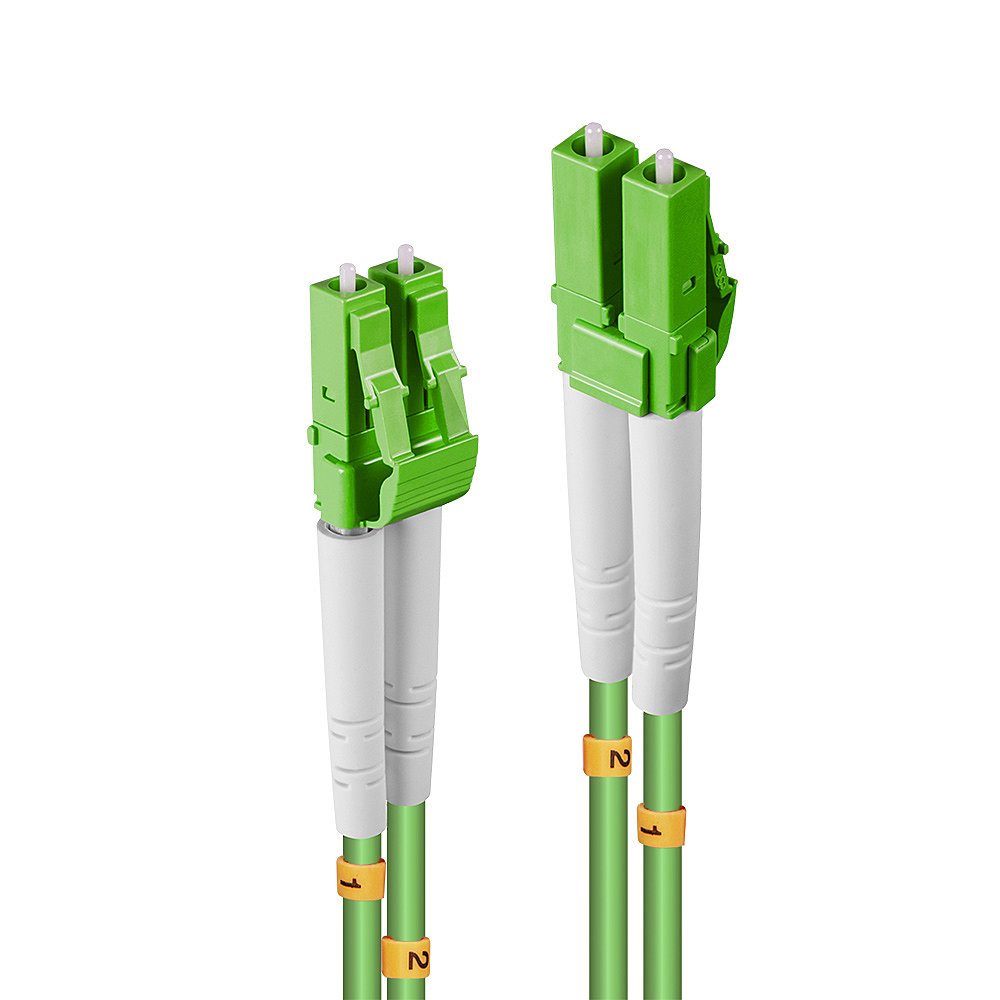

Lindy 1m Fibre Optic Cablel LC/LC, 50/125µm, OM5

€18,96 с налогом

Артикул: ST07256617

Код производителя: 46310

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
PL	8 - 15 дня	18	€18,96 с налогом
LV	7 - 12 дня	273	€23,16 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3
Details 4

Длина кабеля (м.)	1 m
цвет	Зеленый
Длина кабеля (м.)	7.5 m

Cable length	1 m
Fibre optic type	OM5
Connector 1	LC
Connector 2	LC
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Green
Jacket material	Low smoke zero halogen (LSZH)
Core diameter	50 µm
Cladding diameter	125 µm
Fiber mode structure	Multi-mode
Certification	UL
Sustainability certificates	REACH, RoHS
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85447000
Description
Description	Lindy 1m Fibre Optic Cablel LC/LC, 50/125µm, OM5. Cable length: 1 m, Fibre optic type: OM5, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm

Description
	Cable length 1 m \| Fibre optic type OM5 \| Connector 1 LC \| Connector 2 LC \| Connector 1 gender Male \| Connector 2 gender Male \| Colour Green \| Jacket material Low smoke zero halogen (LSZH) \| Operating temperature (T-T) -40 - 85 °C

gross weight

0.02

cable length

1 m

country of origin

product colour

Green

operating temperature (t-t)

-40 - 85 °C

storage temperature (t-t)

-40 - 85 °C

certification

connector 1

connector 2

connector 1 gender

Male

connector 2 gender

Male

harmonized system (hs) code

85447000

quantity per pack

1 pc(s)

compliance certificates

REACH, RoHS

jacket material

Low smoke zero halogen (LSZH)

fiber mode structure

Multi-mode

fibre optic type

OM5

core diameter

50 µm

cladding diameter

125 µm

net weight

0.01

packaging height

19.40

packaging lenght

17.40

packaging width

1.00

warranty

variations

46316,46315,46314,46313,46312,46311

Description

Connectors

Connector A: LC Male
Connector B: LC Male
Housing Material: Plastic (PEI)
Connector Plating: -
Pin Construction: -
Pin Plating: -
Dimensions (approx.) WxDxH: A: 12.5x21.5x10.5mm (0.49x0.85x0.41in)

Cable Construction

Length: 1m (3.28ft)
Standard: OM5
Colour: lime green
Type: Round
Jacket Diameter: 4.0mm (0.16in) x 2
Jacket Material: LSZH
Conductor Material: Fiber
Conductor Gauge: 50/125µm
Shielding: -

Specifications

Supported Bandwidth: 100Gbps
Maximum Resolution: -
Nominal Attenuation:
- < 2.4db@850nm
- < 1.7db@953nm
- < 0.6db@1300nm
Minimum Band Radius: 7.5mm (0.29in)
Operating Temperature: -40°C - 85°C (-40°F - 185°F)
Storage Temperature: -40°C - 85°C (-40°F - 176°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Product Compliance: RoHS, REACH, UL

Purchasing Information

No.: 46310
EAN: 4002888463102

This product is also available in other lengths

46310 - 1m (3.28ft)
46311 - 2m (6.56ft)
46312 - 3m (9.84ft)
46313 - 5m (16.44ft)
46314 - 10m (32.81ft)
46315 - 15m (49.21ft)
46316 - 20m (65.62ft)
