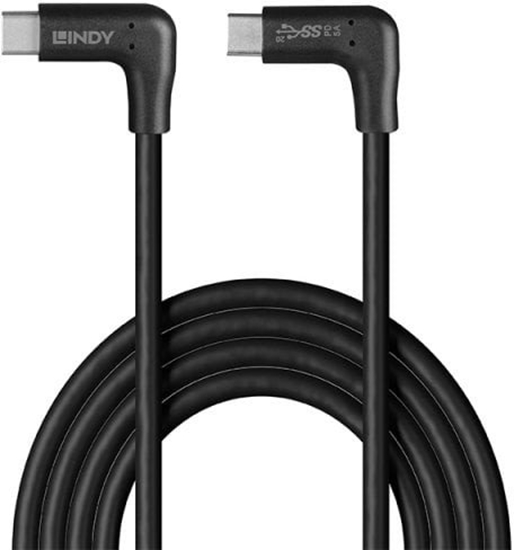

Lindy 1m USB 3.2 Type C Cable, 2 x 90° Right Angle, 10Gbps, 60W PD

	Склад	Доставка	Наличие	Цена
	PL	8 - 15 дня	2	€24,30 с налогом
	LV	7 - 12 дня	760	€27,54 с налогом

gross weight

0.04

maximum data transfer rate

10 Gbit/s

cable length

1 m

cable type

Round cable

country of origin

CN

product colour

Black

operating temperature (t-t)

0 - 40 °C

storage temperature (t-t)

0 - 70 °C

certification

RoHS, REACH, California Proposition 65

connector 1

USB C

connector 2

USB C

connector 1 gender

Male

connector 2 gender

Male

quantity per pack

1 pc(s)

package type

Polybag

connector contacts plating

Nickel

compliance certificates

REACH, RoHS

conductor material

Copper

awg wire size

22/28

connector shielding

Yes

connector shield material

Aluminium

usb version

USB 3.2 Gen 2 (3.1 Gen 2)

connector 1 form factor

Angled

connector 2 form factor

Angled

cable jacket material

Nylon/Polyvinyl Chloride (PVC)

usb power delivery (usb pd)

Yes

warranty period

10 year(s)

cable diameter

5 mm

bend radius (min)

5 cm

connector 1 dimensions (wxdxh)

11.1 x 25.8 x 24.2 mm

connector 2 dimensions (wxdxh)

11.1 x 25.8 x 24.2 mm

connector material

Gold

nominal attenuation

0.5Mhz- 400Mhz < 5.8db

net weight

0.03

usb power delivery revision

2.0

usb power delivery up to

60 W

packaging height

19.40

packaging lenght

17.40

packaging width

0.50

warranty

10

variation of

32022

Description

Connectors

Connector A: USB 3.2 Type C Male 90° Right Angle
Connector B: USB 3.2 Type C Male 90° Right Angle
Housing Material: PVC
Shielding in head shell: -
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: Gold
Dimensions (approx.) WxDxH: 11.1x25.8x24.2mm (0.44x1.02x0.95in)

Cable Construction

Jacket Diameter: 5mm (0.2in)
Jacket Material: PVC
Conductor Material: Copper
Conductor Gauge Power: 22AWG
Conductor Gauge Data: 28AWG
Shielding: Aluminium Foil

Specifications

Length: 1m (3.28ft)
Colour: Black
Type: Round
Standard: USB 3.2 Gen 2x1
Supported Bandwidth: 10Gbps
Maximum Power: PD 3.0 with up to 60W
E-Mark: No
Maximum Resolution: 4K 4096x2160@60Hz
Supported Protocols: USB 3.2, USB 2.0, DisplayPort 1.4
Nominal Attenuation: 0.5Mhz- 400Mhz < 5.8db
Minimum Bend Radius: 50mm (1.97in)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: 0°C - 70°C (32F - 158°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Product Compliance: RoHS, REACH, California Proposition 65

Purchasing Information

No.: 32023
EAN: 4002888320238

This product is also available in other lengths

32022 - 0.5m (1.64ft)
32023 - 1m (3.28ft)
32024 - 1.5m (4.92ft)
