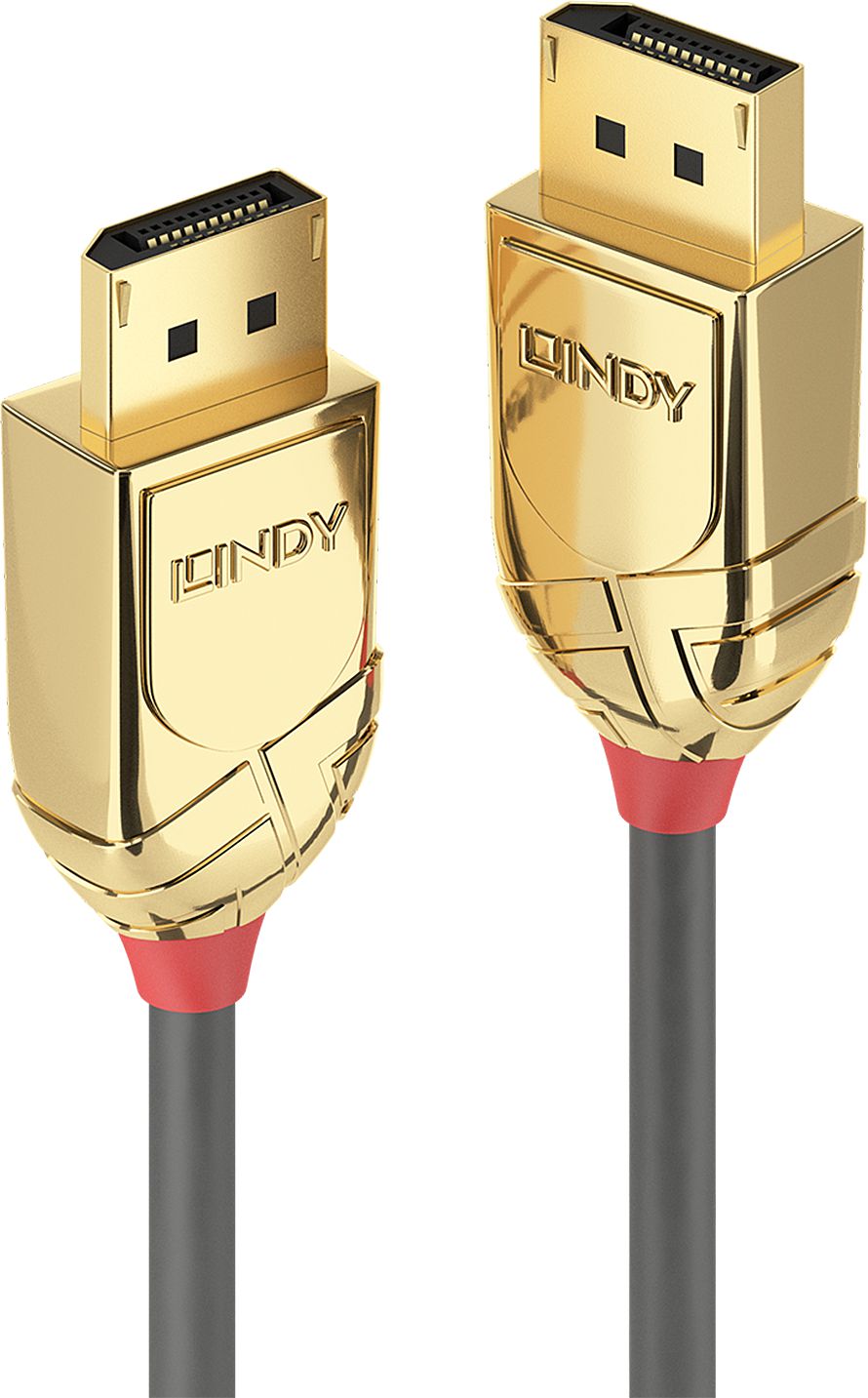

Lindy 3m DisplayPort 1.4Cable, Gold Line

	Склад	Доставка	Наличие	Цена
	PL	8 - 15 дня	5	€76,75 с налогом
	LV	7 - 12 дня	45	€86,49 с налогом

цвет	Золотой
Свойства	Display port
цвет	Серый
Длина кабеля (м.)	7.5 m

gross weight

0.44

cable length

3 m

country of origin

CN

product colour

Gold

connector 1

DisplayPort

connector 2

DisplayPort

connector 1 gender

Male

connector 2 gender

Male

harmonized system (hs) code

84733080

connector contacts plating

Gold

net weight

0.41

packaging height

25.90

packaging lenght

23.60

packaging width

3.00

warranty

25

tech data sheets

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f6/67/97/62/629767f6d0ebe20d37a65f9a/36293_TDS_v1.pdf

ce doc

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/71/55/97/62/62975571a7fecca6d5a65f79/CE_DoC_DE_36290_36298.pdf

variation of

36290

ce docs

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/71/55/97/62/62975571a7fecca6d5a65f79/CE_DoC_DE_36290_36298.pdf

Description

Connectors

Connector A: DisplayPort Male
Connector B: DisplayPort Male
Housing Material: 24 Gold Plated Zinc Alloy
Connector Plating: 24K Gold 3µm
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 15?m
Dimensions (approx.) WxDxH: 19.8x42.5x12.5mm (0.78x1.67x0.49in)

Cable Construction

Length: 3m (9.84ft)
Standard: DisplayPort 1.4
Colour: Grey
Type: Round
Jacket Diameter: 9mm (0.35in)
Jacket Material: PVC
Conductor Material: OFC Copper
Conductor Gauge: 24AWG
Shielding: Copper Braid 85%

Specifications

Supported Bandwidth: 32.4 Gbit/s
Maximum Resolution:
- 8K 7680x4320@60Hz 4:2:2 8bit
- 4K 4096x2160@120Hz 4:4:4 8bit
Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB
Minimum Bend Radius: 90mm (3.5in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 80°C (-13°F - 176°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 25
Product Compliance: RoHS, REACH, UL

Purchasing Information

No. 36293
EAN: 4002888362931

This product is also available in other lengths

36290 - 0.5m (1.64ft)
36291 - 1m (3.28ft)
36292 - 2m (6.56ft)
36294 - 5m (16.40f)
36295 - 7.5m (24.61ft)
36296 - 10m (32.81ft)
36297 - 15m (49.21ft)
36298 - 20m (65.62ft)

CE Doc: CE_DoC_DE_36290_36298.pdf
Tech Data Sheets: 36293_TDS_v1.pdf
