    Производитель: LINDY

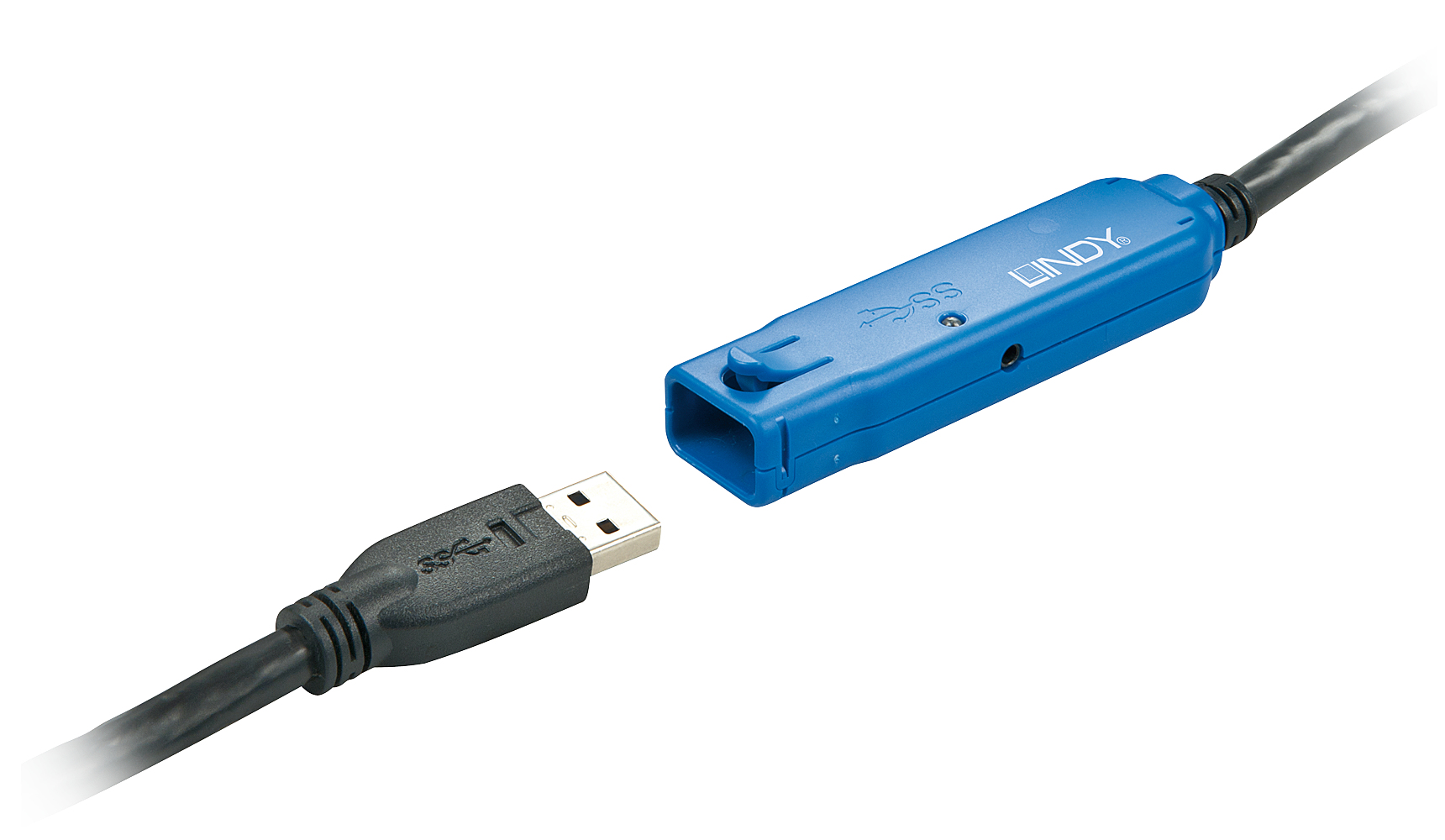

    Lindy 10m USB 3.0 Active Extension Cable Pro


    €87,33 с налогом

    Артикул: ST04898403
    Код производителя: 43157
    Сайт производителя
    гарантия: 24 месяцы
    *
    Склад Доставка Наличие Цена
    LV
    PL
    LV

    Характеристики
    цвет Черный
    Свойства USB 3.0
    цвет Золотой
    Свойства USB
    Cable length10 m
    USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
    Connector 1USB A
    Connector 2USB A
    Connector 1 genderMale
    Connector 2 genderFemale
    Product colourBlack
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    AWG wire size24/24/20
    Connector materialNickel
    Contact materialBrass
    Connector contacts platingGold
    Cable jacket materialPolyvinyl chloride (PVC)
    Conductor materialTinned copper
    Connector shieldingYes
    Connector shield materialAluminium
    Connector housing materialPlastic
    Maximum data transfer rate5000 Mbit/s
    Cable typeRound cable
    Transmission mediumTwisted pair
    Nominal attenuation0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB
    CertificationCE, UKCA, FCC, RoHS, REACH, California Proposition 65
    Power note2.5/0.7mm DC
    Cable diameter7 mm
    Bend radius (min)3.6 cm
    Connector 1 dimensions (WxDxH)15 x 49 x 8 mm
    Connector 2 dimensions (WxDxH)20 x 80 x 13 mm
    Weight750 g
    Quantity per pack1 pc(s)
    Package width240 mm
    Package depth70 mm
    Package height200 mm
    Package weight900 g
    Package typeBox
    ManualYes
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Harmonized System (HS) code84733080
    Description
    Lindy 10m USB 3.0 Active Extension Cable Pro. Cable length: 10 m, Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5000 Mbit/s, Connector contacts plating: Gold, Product colour: Black
    Description
    Connectors USB Type A Male/USB Type A Female | Colour Black
    Status10 dienas
    Description
    High performance, active cable that provides an extended 10m connection between a computer and USB 3.0 device Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of about 40m (depending on the cable configurations used) Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps Easy to use – connects to the device’s existing USB cable (5m maximum) 2 year warranty The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably. This 10m extension cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to about 40m (depending on the cable configurations used). Please note that only the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229) can be connected directly to your computer. If you are creating an extension using multiple units from the Extension Pro System then the first unit must always be the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229). Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any of the three parts of the Extension Pro System. If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it’s power supply as the final part of the extension. This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments. Information about USB 3.0, 3.1 & 3.2 USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface. USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

    Cable length 10 m
    USB version USB 3.2 Gen 1 (3.1 Gen 1)
    Connector 1 USB A
    Connector 2 USB A
    Connector 1 gender Male
    Connector 2 gender Female
    Product colour Black
    Connector 1 form factor Straight
    Connector 2 form factor Straight
    AWG wire size 24/24/20
    Connector material Nickel
    Contact material Brass
    Connector contacts plating Gold
    Cable jacket material Polyvinyl chloride (PVC)
    Conductor material Tinned copper
    Connector shielding Y
    Connector shield material Aluminium
    Connector housing material Plastic
    Maximum data transfer rate 5000 Mbit/s
    Cable type Round cable
    Transmission medium Twisted pair
    Nominal attenuation 0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB
    Certification CE, UKCA, FCC, RoHS, REACH, California Proposition 65
    Power note 2.5/0.7mm DC
    Cable diameter 7 mm
    Bend radius (min) 3.6 cm
    Connector 1 dimensions (WxDxH) 15 x 49 x 8 mm
    Connector 2 dimensions (WxDxH) 20 x 80 x 13 mm
    Weight 750 g
    Quantity per pack 1 pc(s)
    Package width 240 mm
    Package depth 70 mm
    Package height 200 mm
    Package weight 900 g
    Package type Box
    Manual Y
    Operating temperature (T-T) 0 - 50 °C
    Storage temperature (T-T) -20 - 60 °C
    Harmonized System (HS) code 84733080
