| hdcp | Yes |
| weight | 18 g |
| gross weight | 0.03 |
| height | 10 mm |
| width | 50 mm |
| depth | 21 mm |
| data transfer rate | 48 Gbit/s |
| cable length | 0.15 m |
| country of origin | CN |
| product colour | Grey |
| operating temperature (t-t) | -20 - 40 °C |
| storage temperature (t-t) | -40 - 80 °C |
| package width | 133 mm |
| package depth | 144 mm |
| package weight | 23 g |
| connector 1 | USB Type-C |
| connector 2 | HDMI |
| connector 1 gender | Male |
| connector 2 gender | Female |
| compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| connector 1 form factor | Straight |
| connector 2 form factor | Straight |
| maximum resolution | 7680 x 4320 pixels |
| maximum refresh rate | 240 Hz |
| supported graphics resolutions | 7680 x 4320, 3840 x 2160 |
| hdmi version | 2.1 |
| hdcp version | 2.2 |
| net weight | 0.02 |
| packaging height | 14.40 |
| packaging lenght | 13.30 |
| packaging width | 2.00 |
| warranty | 2 |
| Description |
Specifications - AV Interface: USB Type C to HDMI®
- Supported Bandwidth: HDMI® 2.1 with 48Gbps
- Maximum Input Resolution: 7680x4320@60Hz and 3840x2160@240Hz
- Maximum Output Resolution: 7680x4320@60Hz and 3840x2160@240Hz
- Chipset: CH7218A
- Compatibility: USB Type C/Thunderbolt equipped computers with DisplayPort Alternate Mode support (incl. Apple M based processors )
- Power Delivery: -
- HDCP Support: HDCP 2.2
- Supported Audio: -
- Separate Audio Ports: -
- Special Features: DisplayPort Alternate Mode, HDR
Connectors - Inputs: 1 x USB Type C (Male)
- Outputs: 1 x HDMI® (Female)
- Power: Bus-powered
Physical Properties - Dimensions (approx.) WxDxH: 50x21x10mm (1.97x0.83x0.39in)
- (Fixed) Cable Length: 150mm (5.9in)
- Housing Material: Aluminium
- Net Weight: 0.018kg (0.04kg)
- Operating Temperature: -20°C - 40°C (-4°F - 104°F)
- Storage Temperature: -40°C - 80°C (-40°F - 176°F)
- Humidity: 0 - 85% RH ( non-condensing)
- Power Requirements: -
- Colour: Grey
Miscellaneous - Packaging Type: Polybag
- Packaging Dimensions: 133x144mm (5.24x5.67in)
- Gross Weight: 0.023kg (0.05lb)
- Warranty (Years): 2
- Product Compliance: CE, FCC, RoHS & REACH, California Proposition 65

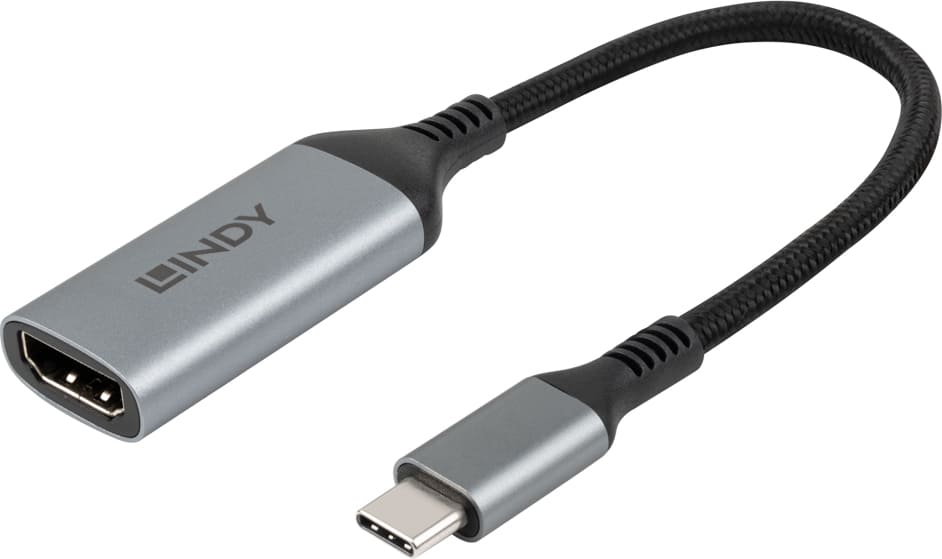

Package Contents - USB Type C to HDMI 8K Converter
Purchasing Information - No.: 43428
- EAN: 4002888434287
|
|
