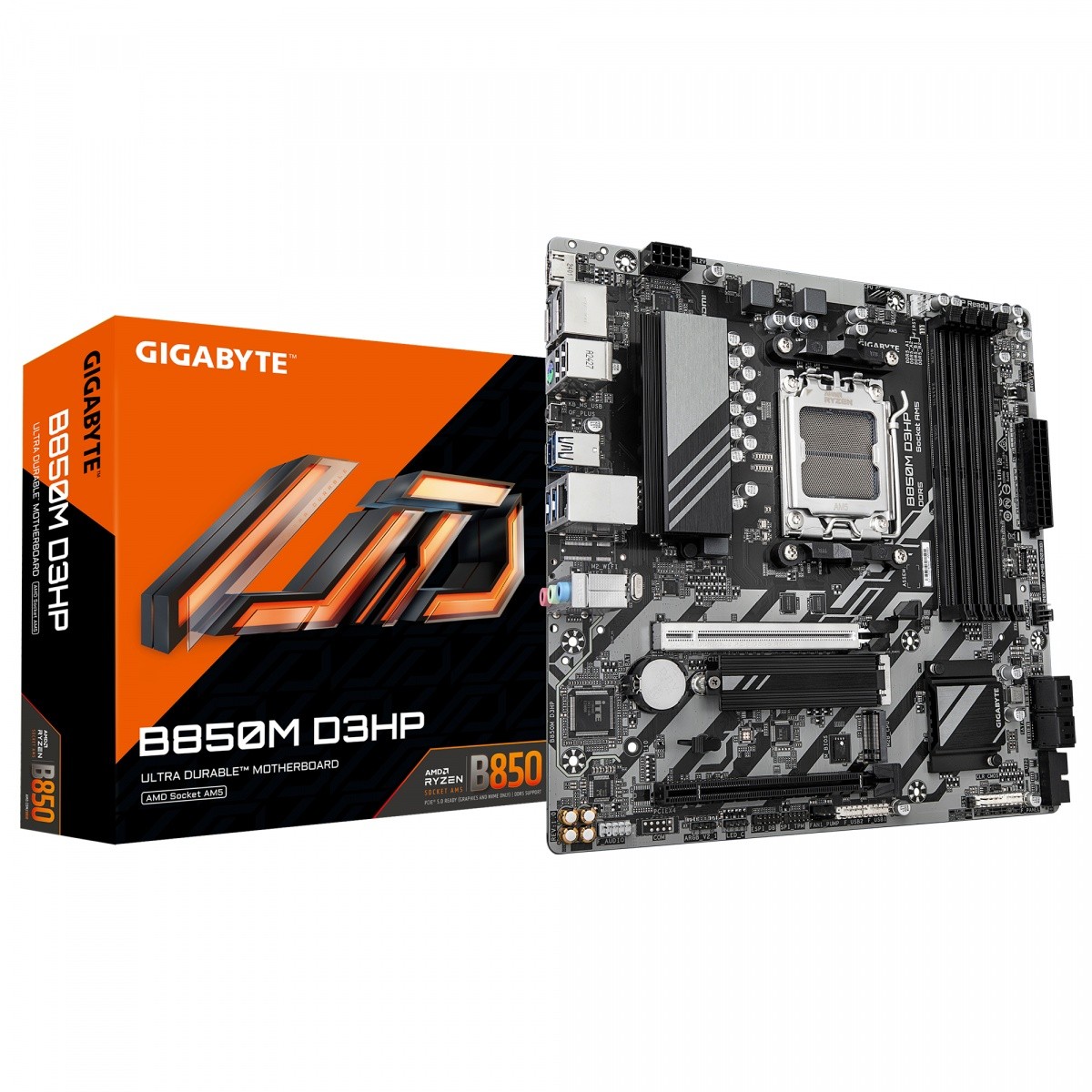

| Model | B850M D3HP |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 9 |
| Processor family | AMD Ryzen 5 |
| Processor family | AMD Ryzen 7 |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD B850 |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 4400 MHz |
| Memory bus frequency | 6666 MHz |
| Memory bus frequency | 8200 MHz |
| Memory bus frequency | 8000 MHz |
| Memory bus frequency | 7800 MHz |
| Memory bus frequency | 7600 MHz |
| Memory bus frequency | 7200 MHz |
| Memory bus frequency | 6800 MHz |
| Memory bus frequency | 7000 MHz |
| Memory bus frequency | 5200 MHz |
| Memory bus frequency | 5600 MHz |
| Memory bus frequency | 6000 MHz |
| Memory bus frequency | 6200 MHz |
| Memory bus frequency | 6400 MHz |
| Memory bus frequency | 6600 MHz |
| Memory bus frequency | 4800 MHz |
| Max memory size | 256 (GigaBajt) |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Expansion slots | 1 x PCIe 4.0 x 4 |
| Expansion slots | 1 x PCIe 4.0 x 8 |
| Expansion slots | 1 x PCIe 3.0 x 4 |
| Expansion slots | 2 x M.2 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | Złącza rozszerzeń - 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- Chipset:
- - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Złącza SATA - 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
- * RAID 5 is only available on AMD Ryzen 9000 Series Processors.
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
|
| Graphics | Zintegrowany procesor graficzny z obsługą grafiki AMD Radeon: - 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz
* Obsługa wersji HDMI 2.1, HDCP 2.3 i HDR.
** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS. - 2 x DisplayPort, obsługujące maksymalną rozdzielczość 3840x2160@144 Hz
* Obsługa wersji DisplayPort 1.4.
|
| Sound card | - Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
|
| Network interface | 1 x 10/100/1000 Mbit/s |
| Network interface | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| USB ports at back panel | 6 |
| USB ports on motherboard | 7 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 7 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 0 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |
| External connectors | 1 x USB 3.2 Gen 1 Type-C |
| External connectors | 3 x USB 3.2 Gen 1 Type-A |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x PS/2 Keyboard/MouseCombo |
| External connectors | 2 x DisplayPort |
| External connectors | 1 x HDMI |
| External connectors | 1 x Line In |
| External connectors | 1 x Line Out |
| External connectors | 1 x MIC |
| External connectors | 1 x Q-Flash Plus button |
| External connectors | 2 x USB 2.0 |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x Clear CMOS jumper |
| Onboard connectors | 1 x Reset jumper |
| Onboard connectors | 2 x M.2 |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x USB 3.2 Gen 1 Type-C |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 1 x 4pin Chassis fan |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 1 x 8pin 12V power |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 2 x Addressable LED |
| BIOS | - 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Form factor | micro ATX |
| Dimensions | 24.4 cm x 24.4 cm |
| Supported operating systems | Windows 10 |
| Supported operating systems | Windows 11 |
| Software | - Norton Internet Security (OEM version)
- LAN bandwidth management software
|
| Designation | CE+WEEE |
| Width | 265 |
| Height | 270 |
| Depth | 55 |
| Weight | 990 |
| Description |
Tryb X3D Turbo
Uwolnij wydajność gier nowej ery dzięki aktywacji jednym kliknięciem.
Unikalne parametry optymalizacji trybu X3D Turbo pozwalają nawet procesorom Ryzen 9000 X3D na zwiększenie wydajności gier i procesorom Ryzen 9000 bez X3D osiągnąć podobny poziom wydajności gier, jak ich odpowiedniki Ryzen X3D. Ciesz się płynniejszą rozgrywką, wyższą liczbą klatek na sekundę i mniejszym opóźnieniem dzięki innowacji BIOS-u GIGABYTE - trybowi X3D Turbo. - Tryb X3D Turbo, który uwolni wydajność gier nowej ery
- Gniazdo AMD AM5: obsługuje procesory AMD Ryzen serii 9000 / 8000 / 7000
- Cyfrowe rozwiązanie VRM 5+2+2 faz
- Dwukanałowa pamięć DDR5: 4*DIMM z obsługą modułu pamięci AMD EXPO
- EZ-Latch: gniazdo PCIe x16 z konstrukcją Quick Release
- Przyjazny interfejs użytkownika: Multi-Theme, sterowanie wentylatorem AIO i automatyczne skanowanie Q-Flash w BIOS-ie i oprogramowaniu.
- Ultraszybkie przechowywanie: 2*gniazda M.2, w tym 1* PCIe 5.0 x4
- Szybka sieć: GbE LAN
- Rozszerzona łączność: 2*DP, HDMI
|
