    PrevMainboard|MSI|AMD B840|SAM5...
    NextMainboard|MSI|AMD B850|SAM5...
    Производитель: MSI

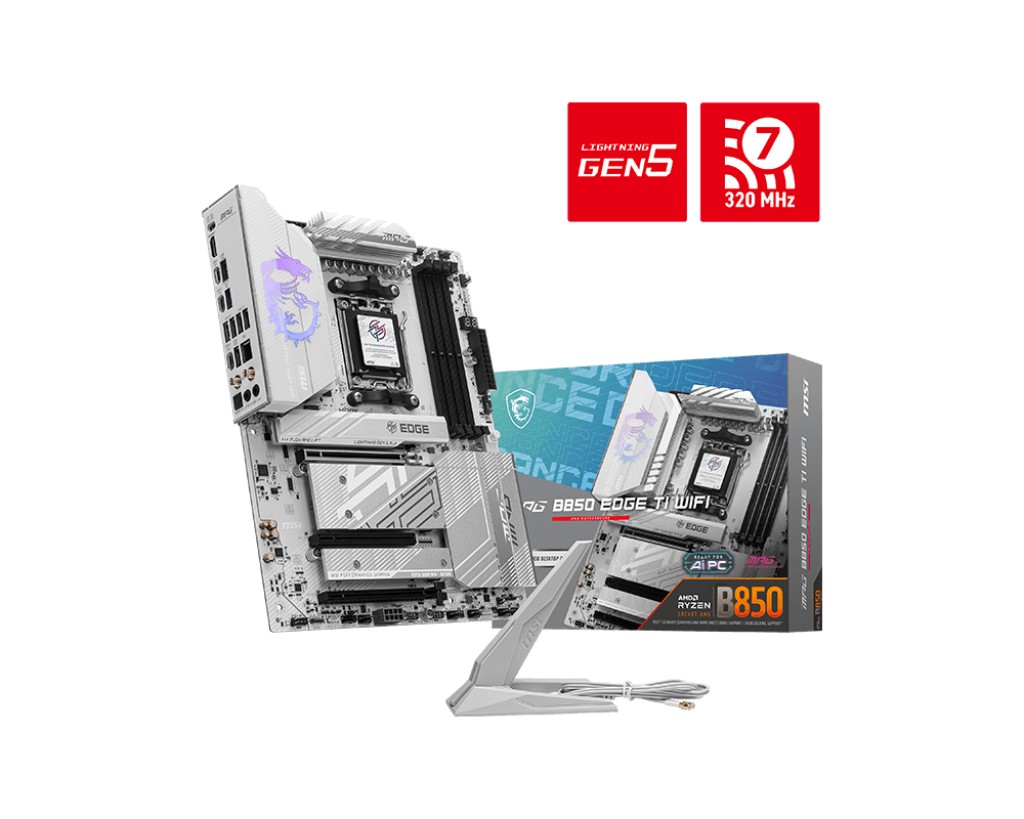

    Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 16x|4xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|1xUSB 3.0|2xUSB 3.2|3xUSB-C|1xOptical S/PDIF|1xRJ45|MPGB850EDGETIWIFI


    €309,76 с налогом

    Артикул: ST08848666
    Код производителя: MPG B850 EDGE TI WIFI
    Сайт производителя
    гарантия: 36 месяцы
    *
    Склад Доставка Наличие Цена
    PL

    Характеристики
    Видеоинтерфейс HDMI
    Form Factor ATX
    Model

    MPG B850 EDGE TI WIFI
    CPU socketSocket AM5
    Processor familyAMD Ryzen 5
    Processor familyAMD Ryzen 7
    Processor familyAMD Ryzen 9
    Integrated CPUNo
    Chipset manufacturerAMD
    Chipset type

    AMD B850
    Memory type DDR5
    Number of DDR5 slots4
    Memory bus frequency4800 MHz
    Memory bus frequency5600 MHz
    Memory bus frequency6400 MHz
    Memory bus frequency8400 MHz
    Max memory size 256 (GigaBajt)
    Expansion slots4 x M.2
    Expansion slots1 x PCIe 3.0 x 1
    Expansion slots1 x PCIe 4.0 x 4
    Expansion slots1 x PCIe 5.0 x 16
    Max. number of SATA devices 4
    RAIDYes
    Detailed data on disk/drive interfaces

    4x M.2

    • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
    • M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
    • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    • 4x SATA 6G

    M.2_1 slot

    • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)

    M.2_2 slot

    • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600 / 8400 Series processors)
    • Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
    • Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices
    Graphics
    • 1x HDMI
    • Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz
    Sound card
    • Realtek ALC4080 Codec
    • 7.1-Channel USB High-Performance Audio
    • Supports up to 32-Bit/384 kHz playback on front panel
    • Supports S/PDIF output
    Network interfaceBluetooth
    Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
    Network interface1 x 10/100/1000/2500/5000 Mbit/s
    Network interface
    • 1x Realtek 8126 5G LAN
    • Wi-Fi 7
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
    • Supports Bluetooth 5.4**, MLO, 4KQAM
    USB ports at back panel10
    USB ports on motherboard9
    Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports5
    Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports6
    FireWire (IEEE 1394)No
    COM connector / portNo
    LPT connector / portNo
    External connectors2 x USB 3.2 Gen 2 Type-C
    External connectors1 x HDMI
    External connectors1 x Line Out
    External connectors1 x MIC
    External connectors1 x RJ-45
    External connectors1 x S/PDIF
    External connectors1 x USB 3.2 Gen 1 Type-A
    External connectors2 x USB 3.2 Gen 2 Type-A
    External connectors2 x SMA
    External connectors1 x Przycisk Clear CMOS
    External connectors1 x Flash BIOS Button
    Onboard connectors1 x RGB LED strip header
    Onboard connectors1 x 4pin CPU fan
    Onboard connectors6 x 4pin wentylator obudowy
    Onboard connectors1 x 4-pin water-pump-fan
    Onboard connectors1 x 8pin 12V power
    Onboard connectors1 x 24pin ATX zasilanie
    Onboard connectors4 x USB 2.0/1.1
    Onboard connectors4 x USB 3.0
    Onboard connectors1 x USB 3.2 Gen 2 Type-C
    Onboard connectors1 x TPM header
    Onboard connectors2 x System panel header
    Onboard connectors1 x Front panel audio header
    Onboard connectors1 x Chassis intrusion header
    Onboard connectors1 x EZ Conn-header
    Onboard connectors3 x Addressable LED
    Form factorATX
    Dimensions

    304.8 mm x 243.84 mm
    Supported operating systemsWindows 11
    DesignationCE+WEEE
    Width270
    Height340
    Depth70
    Weight2235
    Description

    MPG B850 EDGE TI WIFI

    MPG B850 EDGE TI WIFI jest pokryty srebrno-białym schematem kolorów dla miłośników białych komputerów PC, aby pokazać inną tożsamość. Jest również wydajny dzięki prawdziwemu rozwiązaniu Wi-Fi 7, 5G LAN i najnowszej kompatybilności z PCIe 5.0, dodatkowej mocy PCIe i jest najlepszą białą płytą główną B850 ATX dla procesorów AMD Ryzen serii 9000.

    • Obsługuje procesory stacjonarne AMD Ryzen serii 9000 / 8000 / 7000
    • Obsługuje pamięć DDR5, dwukanałową DDR5 8400+ MT/s (OC)
    • Ultra wydajność: 14+2+1 Duet Rail Power System, dwa 8-pinowe złącza zasilania procesora, Core Boost, Memory Boost, 8-warstwowa płytka PCB wykonana z 2-uncjowej pogrubionej miedzi i materiału klasy serwerowej
    • Frozr Guard: Powiększony radiator, podkładki termiczne MOSFET o mocy 7 W/mk, dodatkowe podkładki termiczne dławików i M.2 Shield Frozr są zbudowane z myślą o wysokiej wydajności systemu i nieprzerwanym graniu
    • EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II i EZ Antenna
    • Błyskawiczne wrażenia z gry: gniazdo PCIe 5.0, Lightning Gen 5 M.2
    • Szybka łączność: 5G LAN z rozwiązaniem Wi-Fi 7 i USB 20 Gb/s - najnowsze rozwiązanie do zastosowań profesjonalnych i multimedialnych, zapewniające bezpieczne, stabilne i szybkie sieciowanie i transmisję danych
    • Audio Boost 5: Nagradzaj swoje uszy jakością dźwięku klasy studyjnej, aby uzyskać najbardziej wciągające wrażenia z gry
    Description
    AMD B850 | ATX | Audio 7.1 channels | CPU AMD | Socket Socket AM5 | Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series | Supported memory types DDR5-SDRAM | 4xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,Micro SATA III | 4xUSB 2.0 ports quantity | 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1xEthernet LAN (RJ-45) ports | 1xHDMI ports quantity | Wi-Fi Yes | Bluetooth Yes
    DescriptionMSI MPG B850 EDGE TI WIFI AM5 DDR5 MB
    VatTypeVAT
    Weight2.245000000
    Height74.000000000
    Width272.000000000
    Length344.000000000
    Description
    MSI MPG B850 EDGE TI WIFI AM5 4xDDR5 ATX HDMI USB MB
    Gross depth (mm)268
    Gross height (mm)342
    Gross weight2.12
    Gross width (mm)70
    Net weight1.67
    Packing quantity1.00
    Paper/Pasteboard359.00
    Plastic (No PET)90.00
    Tare weight (kg)0.45
    TI weight (kg)0.02
    Volume (m3)0.00641592
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    Embeeded batteryYes
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    ProducerMSI
    Palette Qty269
    Producer product nameMPG B850 EDGE TI WIFI
    Supported hard disk drive interfacesSATA, M.2
    Processor familyAMD
    Supported memory typesDDR5
    Processor socketAM5
    Number of SATA connectors4
    Warranty36
