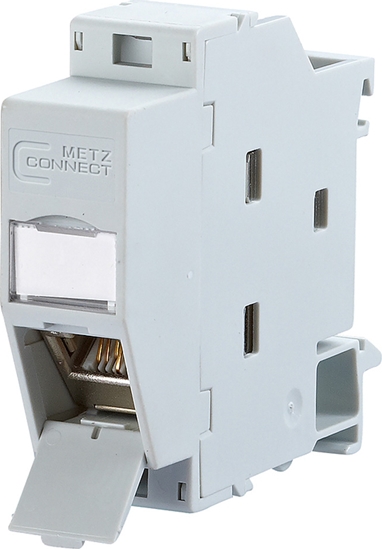

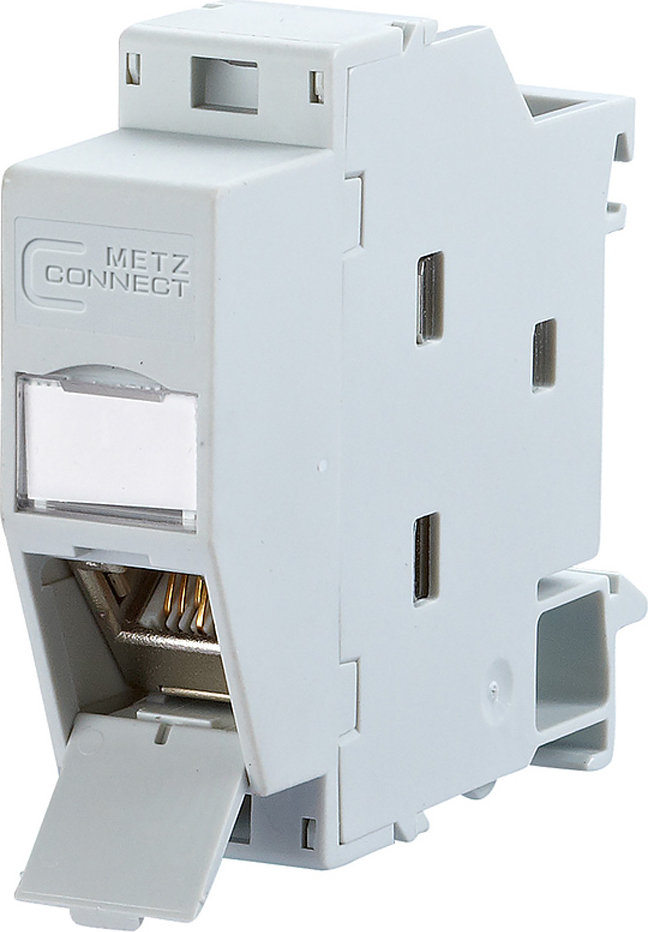

Metz Connect REGplus IP20 E-DAT modul

Termination unit for mounting on TH35 rails to DIN EN 60715 in electrical distribution panels for home and industrial installations, equipped with individual E-DAT modul RJ45 module.

• cable feed 45° from the top, plug direction 45° downwards
• Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
• compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
• tested: Link up to 500 MHz
• suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
• easy to install connection of 2 to 4 pair data lines AWG 26/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 - 22/7 to BTR 8-fold insulation displacement connectors (IDC)
• marking of conductor assignment to T568A and T568B
• easy and fast insertion of wire pairs in E-DAT modul stuffer cap
• width of 1HP allows mounting up to 12 REG plus in standard electrical distribution panels
• when mounted as a device of protection class I, the equipotential bonding is realized directly over the top hat rail by means of an integrated equipotential plate. This has to be connected to the equipotential bonding of the building by means of a bonding terminal

• a cover protects the module against direct contact. If mounted in distributor panels with protective insulation, protection class II is guaranteed. In this case, it is necessary to remove the equipotential bonding spring.
• integrated dust protection cover
