Извините, продукт не доступен для заказа

Производитель: ASROCK

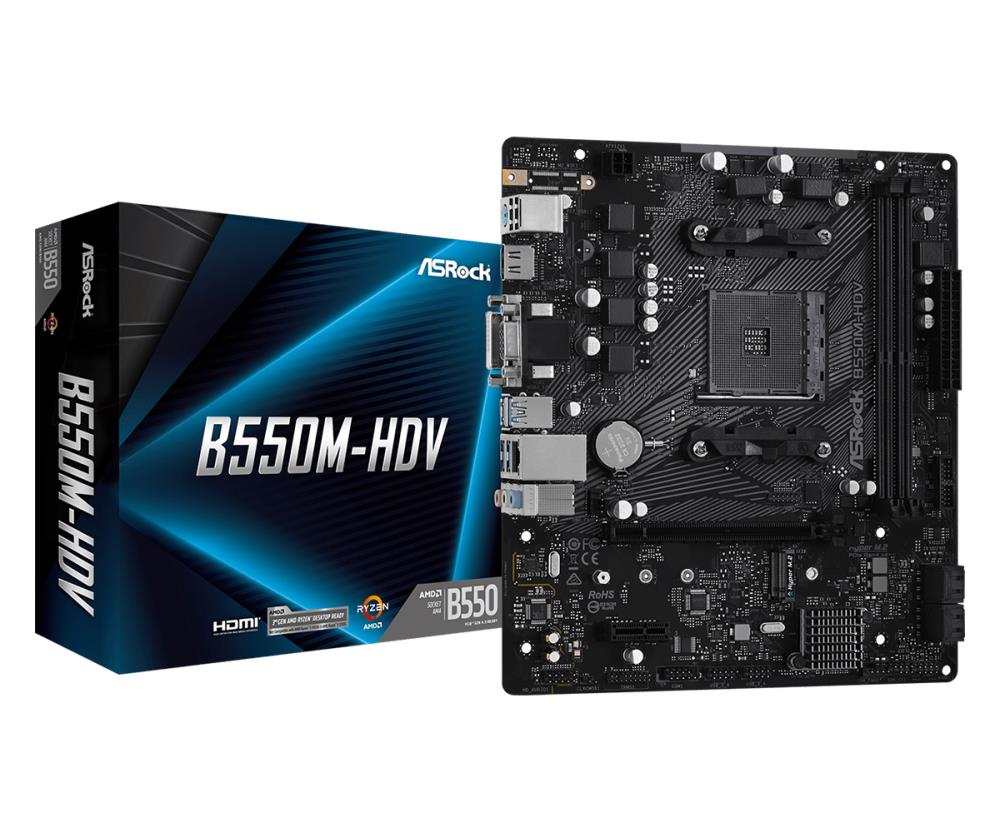

Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 2|1x15pin D-sub|1xDVI|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B550M-HDV

€0,00 с налогом

Артикул: ST04415981

Код производителя: B550M-HDV

Сайт производителя

Количество:

Specifications

Характеристики

1
Details 2
Details 3
Details 4

Разъём процессора (Socket)	Socket AM4
Form Factor	mATX
Видеоинтерфейс	DVI
Тип памяти	DDR4
Видеоинтерфейс	HDMI
Видеоинтерфейс	D-Sub

Model	B550M-HDV
CPU socket	Socket AM4
Processor family	AMD Ryzen
Integrated CPU	No
Chipset manufacturer	AMD
Chipset type	AMD B550
Memory type	DDR4
Number of DDR4 slots	2
Memory bus frequency	3466 MHz
Memory bus frequency	4333 MHz
Memory bus frequency	2133 MHz
Memory bus frequency	4266 MHz
Memory bus frequency	4400 MHz
Memory bus frequency	4200 MHz
Memory bus frequency	4133 MHz
Memory bus frequency	2400 MHz
Memory bus frequency	2667 MHz
Memory bus frequency	4600 MHz
Memory bus frequency	3733 MHz
Memory bus frequency	3200 MHz
Memory bus frequency	4000 MHz
Memory bus frequency	2933 MHz
Memory bus frequency	3800 MHz
Max memory size	64 (GigaBajt)
Expansion slots	1 x PCIe 4.0 x 16
Expansion slots	1 x PCIe 3.0 x 1
Max. number of SATA devices	4
RAID	Yes
Detailed data on disk/drive interfaces	RAID 0, RAID 1 and RAID 10
Graphics	Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB.** Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) Supports HDR (High Dynamic Range) with HDMI 2.1 Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port Supports Microsoft PlayReady
Sound card	7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection
Network interface	1 x 10/100/1000 Mbit/s
Network interface	PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
USB ports at back panel	6
USB ports on motherboard	6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	6
COM connector / port	Yes
External connectors	4 x USB 3.0
External connectors	1 x RJ-45
External connectors	1 x MIC
External connectors	1 x Line Out
External connectors	1 x D-Sub
External connectors	1 x DVI-D
External connectors	1 x HDMI
External connectors	1 x Line In
External connectors	1 x PS/2 Keyboard/MouseCombo
External connectors	2 x USB 2.0
Onboard connectors	2 x USB 3.0 header
Onboard connectors	2 x 4pin Chassis fan
Onboard connectors	1 x Chassis intrusion header
Onboard connectors	1 x M.2
Onboard connectors	4 x SATA III 6Gb/s
Onboard connectors	4 x USB 2.0/1.1
Onboard connectors	1 x 24pin ATX zasilanie
Onboard connectors	1 x 4pin 12V power
Onboard connectors	1 x 4pin CPU fan
Onboard connectors	1 x TPM header
Onboard connectors	1 x Front panel audio header
Onboard connectors	1 x USB 3.1
Onboard connectors	1 x Serial port header
Special functions	ASRock Super Alloy Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
BIOS	256Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Form factor	micro ATX
Dimensions	23.0 cm x 20.1 cm
Supported operating systems	Windows 11
Supported operating systems	Windows 10
Software	Software: ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI: ASRock Full HD UEFI ASRock Instant Flash
Designation	CE+WEEE
Width	275
Height	60
Depth	240
Weight	840
Description
Description	Płyta główna B550M-HDV ASRock.

Description

Description	ASROCK B550M-HDV AM4 mATX MB
VatType	VAT
Weight	0.818000000
Height	240.000000000
Width	60.000000000
Length	275.000000000
Description
Description	ASROCK B550M-HDV AM4 Socket DDR4 4733+ 1 x3.0 PCIe 16x4.0 HDMI DVI-D D-Sub 7.1 CH HD 4 SATA3 6 USB 3.2 Gen1 mATX MB
