Производитель: ASROCK

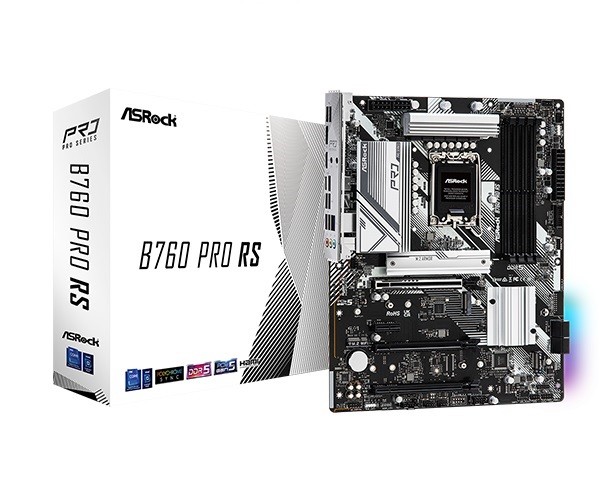

ASROCK B760 PRO RS Socket 1700 DDR5 ATX

€131,45 с налогом

Артикул: ST06844916

Код производителя: B760 PRO RS

Сайт производителя

гарантия: 24 месяцы

Stock *

Склад	Доставка	Наличие	Цена
PL	9 - 12 дня	4	€131,45 с налогом
PL	8 - 15 дня	5	€138,73 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3

Разъём процессора (Socket)	LGA 1700
Видеоинтерфейс	DisplayPort
Видеоинтерфейс	HDMI
Form Factor	ATX

Model	B760 Pro RS
CPU socket	LGA1700
Processor family	Intel Core i9
Processor family	Intel Core i7
Processor family	Intel Core i3
Processor family	Intel Core i5
Processor family	Intel Pentium
Processor family	Intel Celeron
Integrated CPU	No
Chipset manufacturer	Intel
Chipset type	Intel B760
Memory type	DDR5
Number of DDR5 slots	4
Memory bus frequency	7200 MHz
Max memory size	128 (GigaBajt)
Expansion slots	1 x PCIe 4.0 x 16
Expansion slots	1 x PCIe 5.0 x 16
Expansion slots	1 x PCIe 3.0 x 16
Expansion slots	1 x PCIe 3.0 x 1
Max. number of SATA devices	4
RAID	Yes
Detailed data on disk/drive interfaces	CPU: 1 x Hyper M.2 Socket (M2_1, Key M), obsługuje tryb 2260/2280 PCIe Gen4x4 (64 Gb/s) Chipset: 1 x M.2 Socket (M2_2, Key M), obsługuje tryb 2260/2280 PCIe Gen4x2 (32 Gb/s) 1 x Hyper M.2 Socket (M2_3, Key M), obsługuje tryb 2260/2280 PCIe Gen4x4 (64 Gb/s) 4 x złącze SATA3 6.0 Gb/s
Graphics	Architektura graficzna Intel Xe (12. generacji) eDP 1.4, obsługuje maks. rozdzielczość do Full HD 60 Hz HDMI 2.1 kompatybilny z TMDS, obsługuje HDCP 2.3 i maks. rozdzielczość do 4K 60 Hz DisplayPort 1.4 z DSC (skompresowany), obsługuje HDCP 2.3 i maks. rozdzielczość do 8K 60Hz / 5K 120Hz *Wbudowane grafiki Intel UHD i wyjścia VGA mogą być obsługiwane tylko przez procesory ze zintegrowanym GPU
Sound card	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interface	1 x 10/100/1000/2500 Mbit/s
Network interface	2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Obsługuje Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
USB ports at back panel	8
USB ports on motherboard	5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports	3
FireWire (IEEE 1394)	No
COM connector / port	No
LPT connector / port	No
External connectors	1 x Line In
External connectors	1 x Line Out
External connectors	1 x MIC
External connectors	1 x RJ-45
External connectors	2 x USB 2.0
External connectors	4 x USB 3.0
External connectors	1 x USB 3.1
External connectors	1 x USB 3.1 Type-C
External connectors	1 x DisplayPort
External connectors	1 x HDMI
Onboard connectors	2 x 8pin 12V
Onboard connectors	2 x Addressable LED
Onboard connectors	1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors	5 x 4pin case fan liquid cooling
Onboard connectors	1 x 4pin CPU fan
Onboard connectors	2 x RGB LED Strip
Onboard connectors	1 x Front panel audio header
Onboard connectors	4 x SATA III 6Gb/s
Onboard connectors	2 x USB 2.0/1.1 header
Onboard connectors	2 x USB 3.0 header
Onboard connectors	1 x USB C
Onboard connectors	1 x Thunderbolt header
Onboard connectors	1 x Power LED and Speaker Header
Onboard connectors	3 x M.2
Onboard connectors	1 x TPM header
Onboard connectors	1 x 24pin ATX zasilanie
Onboard connectors	1 x eDP
Special functions	Superb Productivity: PCIe Gen5 (Graphics) Dual Channel DDR5 Rock-Solid Durability: 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT Pre-Installed I/O Shield Ultrafast Connectivity 2.5G LAN EZ Update ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker
BIOS	128 MB AMI UEFI Legal BIOS z obsługą GUI
Form factor	ATX
Dimensions	30.5 x 24.4 cm
Accessories included	Instrukcja obsługi 2 x Kabel danych SATA 4 x Śruby do gniazd M.2 Dystans dla gniazda M.2
Supported operating systems	Windows 10
Supported operating systems	Windows 11
Software	Software: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Designation	CE+WEEE
Width	360
Height	300
Depth	75
Weight	1500
Description
Description	Płyta główna B760 Pro RS Obsługuje procesory Intel Core 13-ej i 12-ej generacji (LGA1700) 10+1+1 Power Phase, Dr.MOS for VCore+GT Obsługuje DDR5 7200MHz (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi Wyjścia grafiki: HDMI, DisplayPort, eDP Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2) 2 USB 3.2 Gen2 Typ-C (1 Tył, 1 Przód), 1 USB 3.2 Gen2 Typ-A (Tył), 6 USB 3.2 Gen1 (4 Tył, 2 Przód), 4 USB 2.0 (2 Tył, 2 Przód) Dragon 2.5G LAN Obsługuje ASRock Auto Driver Installer

Description	ASROCK B760 PRO RS Socket 1700 DDR5 ATX
VatType	VAT
Weight	1.575000000
Height	74.000000000
Width	305.000000000
Length	357.000000000
Description
Description	ASROCK B760 PRO RS Socket 1700 DDR5 ATX
