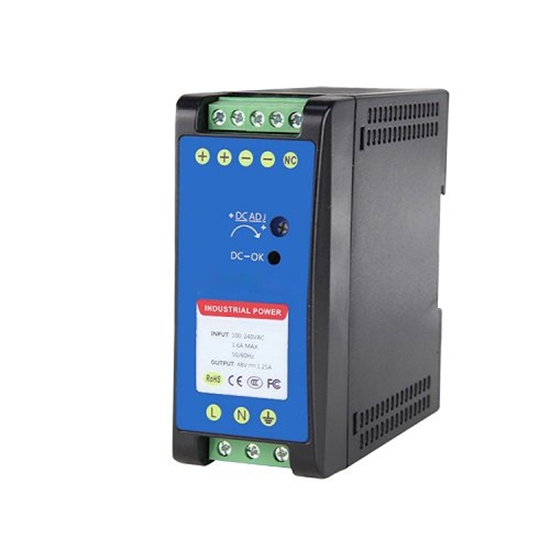

Изображение Power Adapter DR-60-48 48V / 60W

Производитель: EXTRADIGITAL

Power Adapter DR-60-48 48V / 60W

€45,11 с налогом

Артикул: ST09811731

Код производителя: DR-60-48

Сайт производителя

Stock *

	Склад	Доставка	Наличие	Цена
	LV	2 - 5 дня	2	€45,11 с налогом

Количество:

Specifications

Характеристики

Weight	0.1
Gross weight	0.12
Description
	Power supply 48V, 1.25A, 60W, DIN. Features Economical slim 60W DIN Rail industrial power supply. Can be installed on DIN rails: TS-35/7.5 or TS-35/15. Cooling by free air convection. Operation at the ambient temperature between -40°C to 70°C. Protections: short circuit / overload / over voltage. High efficiency, durability, reliability, narrow profile. Meets the EU standards EMC for harmonic current emissions EN61000-3-2. Specifications Input range AC: 90-264V. Frequency 47-63Hz. Output voltage DC: 48V. DC voltage adjustable range: 47 ~ 56V. Rated current: 1.25A. Rated power: 60W. AC current: 1.4A / 115V, 0.8A / 230V. Ripple and noise: 100mV p-p. Efficiency: >89%. Leakage current: <0.25mA / 264V AC. Operating temperature: from -40°C to + 70°C. Operating humidity: 20% -95% RH. Dimension: 93x102.5x41mm. Certificates: RoHS, CE.
	Barošanas bloks 48V, 1.25A, 60W, DIN. Īpašības Economical slim 60W DIN Rail industrial Barošanas bloks. Can be installed on DIN rails: TS– 35/7.5 or TS– 35/15. Cooling by free air convection. Operation at the ambient temperature between– 40°C to 70°C. Aizsardzība: īssavienojums / pārslodze / pārspriegums High efficiency, durability, reliability, narrow profile. Meets the EU standards EMC for harmonic current emissions EN61000– 3– 2. Specifikācijas Ievades sprieguma diapazons AC: 90– 264V. Frequency 47– 63Hz. Izejas spriegums DC: 48V. DC sprieguma regulēšanas diapazons: 47 ~ 56V. Nominālā strāva: 1.25A. Nominālā jauda: 60W. strāva AC: 1.4A / 115V, 0.8A / 230V. Pulsācijas un troksnis: 100mV p– p. Efficiency: >89%. Noplūdes strāva: <0.25mA / 264V AC. Operating temperature: from– 40°C to + 70°C. Operating humidity: 20%– 95% RH. Izmēri: 93x102.5x41mm. Certificates: RoHS, CE.
	Блок питания 48V, 1.25A, 60W, DIN. Особенности Economical slim 60W DIN Rail industrial Блок питания. Can be installed on DIN rails: TS-35/7.5 or TS-35/15. Cooling by free air convection. Operation at the ambient temperature between -40°C to 70°C. Защиты: короткое замыкание / перегрузка / перенапряжение High efficiency, durability, reliability, narrow profile. Meets the EU standards EMC for harmonic current emissions EN61000-3-2. Характеристики Диапазон входного напряжения AC: 90-264V. Frequency 47-63Hz. Выходное напряжение DC: 48V. Диапазон регулировки напряжения DC: 47 ~ 56V. Номинальный ток: 1.25A. Номинальная мощность: 60W. Ток AC: 1.4A / 115V, 0.8A / 230V. Пульсации и шум: 100mV p-p. Efficiency: >89%. Ток утечки: <0.25mA / 264V AC. Operating temperature: from -40°C to + 70°C. Operating humidity: 20% -95% RH. Габариты: 93x102.5x41mm. Certificates: RoHS, CE.

Характеристики

Weight	0.1
Gross weight	0.12
Description
	Power supply 48V, 1.25A, 60W, DIN. Features Economical slim 60W DIN Rail industrial power supply. Can be installed on DIN rails: TS-35/7.5 or TS-35/15. Cooling by free air convection. Operation at the ambient temperature between -40°C to 70°C. Protections: short circuit / overload / over voltage. High efficiency, durability, reliability, narrow profile. Meets the EU standards EMC for harmonic current emissions EN61000-3-2. Specifications Input range AC: 90-264V. Frequency 47-63Hz. Output voltage DC: 48V. DC voltage adjustable range: 47 ~ 56V. Rated current: 1.25A. Rated power: 60W. AC current: 1.4A / 115V, 0.8A / 230V. Ripple and noise: 100mV p-p. Efficiency: >89%. Leakage current: <0.25mA / 264V AC. Operating temperature: from -40°C to + 70°C. Operating humidity: 20% -95% RH. Dimension: 93x102.5x41mm. Certificates: RoHS, CE.
	Barošanas bloks 48V, 1.25A, 60W, DIN. Īpašības Economical slim 60W DIN Rail industrial Barošanas bloks. Can be installed on DIN rails: TS– 35/7.5 or TS– 35/15. Cooling by free air convection. Operation at the ambient temperature between– 40°C to 70°C. Aizsardzība: īssavienojums / pārslodze / pārspriegums High efficiency, durability, reliability, narrow profile. Meets the EU standards EMC for harmonic current emissions EN61000– 3– 2. Specifikācijas Ievades sprieguma diapazons AC: 90– 264V. Frequency 47– 63Hz. Izejas spriegums DC: 48V. DC sprieguma regulēšanas diapazons: 47 ~ 56V. Nominālā strāva: 1.25A. Nominālā jauda: 60W. strāva AC: 1.4A / 115V, 0.8A / 230V. Pulsācijas un troksnis: 100mV p– p. Efficiency: >89%. Noplūdes strāva: <0.25mA / 264V AC. Operating temperature: from– 40°C to + 70°C. Operating humidity: 20%– 95% RH. Izmēri: 93x102.5x41mm. Certificates: RoHS, CE.
	Блок питания 48V, 1.25A, 60W, DIN. Особенности Economical slim 60W DIN Rail industrial Блок питания. Can be installed on DIN rails: TS-35/7.5 or TS-35/15. Cooling by free air convection. Operation at the ambient temperature between -40°C to 70°C. Защиты: короткое замыкание / перегрузка / перенапряжение High efficiency, durability, reliability, narrow profile. Meets the EU standards EMC for harmonic current emissions EN61000-3-2. Характеристики Диапазон входного напряжения AC: 90-264V. Frequency 47-63Hz. Выходное напряжение DC: 48V. Диапазон регулировки напряжения DC: 47 ~ 56V. Номинальный ток: 1.25A. Номинальная мощность: 60W. Ток AC: 1.4A / 115V, 0.8A / 230V. Пульсации и шум: 100mV p-p. Efficiency: >89%. Ток утечки: <0.25mA / 264V AC. Operating temperature: from -40°C to + 70°C. Operating humidity: 20% -95% RH. Габариты: 93x102.5x41mm. Certificates: RoHS, CE.
