Производитель: ZYXEL

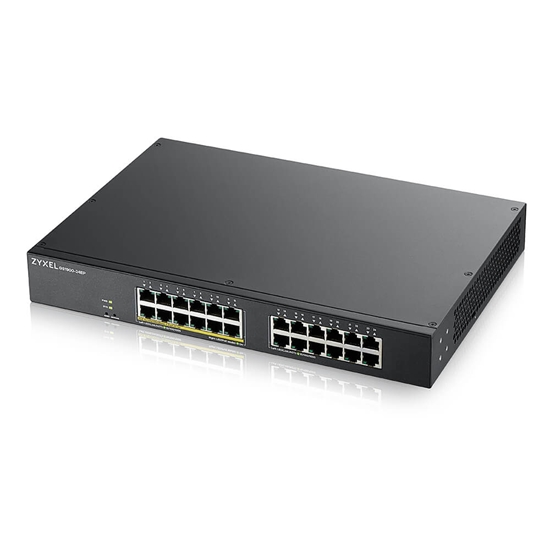

Zyxel GS1900-24EP 24-Port Switch, 12 PoE+ Ports

€270,91 с налогом

Артикул: ST04470835

Код производителя: GS1900-24EP-EU0101F

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
PL	9 - 12 дня	1	€270,91 с налогом
PL	8 - 15 дня	1	€272,19 с налогом
LV	7 - 12 дня	37	€312,97 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3
Details 4

Количество портов RJ-45	24
Свойства	RJ-45

Switch class	SMART
Application	Home and small office
Switch layer	L2
Network architecture	GigabitEthernet
Number of 10/100/1000 Mbps ports	24
Number of PoE ports (PoE & PoE+)	12
Throughput	48 (Gigabajty na sek.)
Forwarding rate	35.7 (Mpps)
Packet buffer	525 (Kilobajt)
MAC address table size	8000
Support for Jumbo frames	Yes
Jumbo frame size	9 (Kilobajt)
Supported protocols and standards	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab (1000BASE-T) Ethernet IEEE 802.3x flow control IEEE 802.3az EEE support IEEE 802.1p CoS support IEEE 802.3af PoE (GS1900-8HP/10HP/24HP/48HP) IEEE 802.3at PoE plus (GS1900-8HP/10HP/24HP/48HP) IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure Store and forward Auto MDI/MID-X
QoS	IEEE 802.1p class of service(SPQ, WRR) Port-based CoS IP TOS precedence
Security	IEEE 802.1x Port security Layer 2 MAC filtering Static MAC forwarding RADIUS TACACS+ SSL Management VLAN CPU defense engine DoS prevention
L2 features	IGMP snooping (v1, v2, v3)
Chassis type	Rack
Fan	No
Power supply	Internal
Power consumption	166.5 (Watt)
Dimensions	330 x 230 x 44 mm
Weight	2.48 (kilogram)
Designation	CE+WEEE
Width	80
Height	390
Depth	340
Weight	3490
Description
Description	Inteligentny zarządzalny przełącznik GS1900. Idealny wybór do prostej konfiguracji SMB.

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
MIB support	RFC 1213 MIB II RFC 2819 RMON (group 1, 2, 3, 9) RFC 1215 generic traps RFC 1493 bridge Zyxel private common MIB
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	AC-in jack
Networking standards	IEEE 802.1D, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1s, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
10G support	No
Cable types supported	Cat5, Cat5e
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	No
Ethernet LAN data rates	10,100,1000 Mbit/s
MAC address auto-learning supported	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Forwarding rate	35.7 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	0.525 MB
DHCP features	DHCP client
IGMP snooping	Yes
Security algorithms	802.1x RADIUS
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
Password protection	Yes
Authentication type	HWTACACS+, IEEE 802.1x, RADIUS
Multicast support	Yes
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Reset button	Yes
Noise level	26 dB
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	206.5 W
Power over Ethernet (PoE)	Yes
Width	330 mm
Depth	330 mm
Height	44 mm
Weight	2.48 kg
Cables included	AC
Quick start guide	Yes
User guide	Yes
Manual	Yes
Package type	Box
Harmonized System (HS) code	85176990
Description
Description	Zyxel GS1900-24EP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1s, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az,.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

auto mdi/mdi-x

Yes

power over ethernet (poe)

Yes

manufacturer

ZYXEL COMMUNICATIONS

product type

Network Switches

weight

2.48 kg

height

44 mm

width

330 mm

depth

330 mm

full duplex

Yes

switch type

Managed

stackable

Yes

switch layer

quality of service (qos) support

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

power connector

AC-in jack

networking standards

IEEE 802.1D, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1s, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x

10g support

cable types supported

Cat5, Cat5e

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

8000 entries

switching capacity

48 Gbit/s

forwarding rate

35.7 Mpps

store-and-forward

Yes

packet buffer memory

0.525 MB

mac address filtering

Yes

multicast support

Yes

rack mounting

Yes

product colour

Black

noise level

26 dB

harmonized system (hs) code

85176990

package type

Box

ac input voltage

100 - 240 V

ac input frequency

50 - 60 Hz

manual

Yes

ethernet lan data rates

10,100,1000 Mbit/s

cables included

user guide

Yes

jumbo frames support

Yes

power consumption (typical)

206.5 W

security algorithms

802.1x RADIUS

reset button

Yes

quick start guide

Yes

jumbo frames

9000

igmp snooping

Yes

power supply included

Yes

spanning tree protocol

mac address auto-learning supported

Yes

vlan support

Yes

dhcp features

DHCP client

static port security

Yes

ssh/ssl support

Yes

virtual lan features

Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN

mib support

RFC 1213 MIB II RFC 2819 RMON (group 1, 2, 3, 9) RFC 1215 generic traps RFC 1493 bridge Zyxel private common MIB

password protection

Yes

authentication type

HWTACACS+, IEEE 802.1x, RADIUS

Description

Zyxel GS1900-24EP. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24. Pilns duplekss. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 48 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1s, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az,.... Saspraudnis: AC barošanas spraudnis. Power over Ethernet (PoE). Statņa montāža

Характеристики

1
Details 2
Details 3
Details 4

Количество портов RJ-45	24
Свойства	RJ-45

Switch class	SMART
Application	Home and small office
Switch layer	L2
Network architecture	GigabitEthernet
Number of 10/100/1000 Mbps ports	24
Number of PoE ports (PoE & PoE+)	12
Throughput	48 (Gigabajty na sek.)
Forwarding rate	35.7 (Mpps)
Packet buffer	525 (Kilobajt)
MAC address table size	8000
Support for Jumbo frames	Yes
Jumbo frame size	9 (Kilobajt)
Supported protocols and standards	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab (1000BASE-T) Ethernet IEEE 802.3x flow control IEEE 802.3az EEE support IEEE 802.1p CoS support IEEE 802.3af PoE (GS1900-8HP/10HP/24HP/48HP) IEEE 802.3at PoE plus (GS1900-8HP/10HP/24HP/48HP) IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure Store and forward Auto MDI/MID-X
QoS	IEEE 802.1p class of service(SPQ, WRR) Port-based CoS IP TOS precedence
Security	IEEE 802.1x Port security Layer 2 MAC filtering Static MAC forwarding RADIUS TACACS+ SSL Management VLAN CPU defense engine DoS prevention
L2 features	IGMP snooping (v1, v2, v3)
Chassis type	Rack
Fan	No
Power supply	Internal
Power consumption	166.5 (Watt)
Dimensions	330 x 230 x 44 mm
Weight	2.48 (kilogram)
Designation	CE+WEEE
Width	80
Height	390
Depth	340
Weight	3490
Description
Description	Inteligentny zarządzalny przełącznik GS1900. Idealny wybór do prostej konfiguracji SMB.

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
MIB support	RFC 1213 MIB II RFC 2819 RMON (group 1, 2, 3, 9) RFC 1215 generic traps RFC 1493 bridge Zyxel private common MIB
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	AC-in jack
Networking standards	IEEE 802.1D, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1s, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
10G support	No
Cable types supported	Cat5, Cat5e
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	No
Ethernet LAN data rates	10,100,1000 Mbit/s
MAC address auto-learning supported	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Forwarding rate	35.7 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	0.525 MB
DHCP features	DHCP client
IGMP snooping	Yes
Security algorithms	802.1x RADIUS
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
Password protection	Yes
Authentication type	HWTACACS+, IEEE 802.1x, RADIUS
Multicast support	Yes
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Reset button	Yes
Noise level	26 dB
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	206.5 W
Power over Ethernet (PoE)	Yes
Width	330 mm
Depth	330 mm
Height	44 mm
Weight	2.48 kg
Cables included	AC
Quick start guide	Yes
User guide	Yes
Manual	Yes
Package type	Box
Harmonized System (HS) code	85176990
Description
Description	Zyxel GS1900-24EP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1s, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az,.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

auto mdi/mdi-x

Yes

power over ethernet (poe)

Yes

manufacturer

ZYXEL COMMUNICATIONS

product type

Network Switches

weight

2.48 kg

height

44 mm

width

330 mm

depth

330 mm

full duplex

Yes

switch type

Managed

stackable

Yes

switch layer

quality of service (qos) support

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

power connector

AC-in jack

networking standards

IEEE 802.1D, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1s, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x

10g support

cable types supported

Cat5, Cat5e

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

8000 entries

switching capacity

48 Gbit/s

forwarding rate

35.7 Mpps

store-and-forward

Yes

packet buffer memory

0.525 MB

mac address filtering

Yes

multicast support

Yes

rack mounting

Yes

product colour

Black

noise level

26 dB

harmonized system (hs) code

85176990

package type

Box

ac input voltage

100 - 240 V

ac input frequency

50 - 60 Hz

manual

Yes

ethernet lan data rates

10,100,1000 Mbit/s

cables included

user guide

Yes

jumbo frames support

Yes

power consumption (typical)

206.5 W

security algorithms

802.1x RADIUS

reset button

Yes

quick start guide

Yes

jumbo frames

9000

igmp snooping

Yes

power supply included

Yes

spanning tree protocol

mac address auto-learning supported

Yes

vlan support

Yes

dhcp features

DHCP client

static port security

Yes

ssh/ssl support

Yes

virtual lan features

Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN

mib support

RFC 1213 MIB II RFC 2819 RMON (group 1, 2, 3, 9) RFC 1215 generic traps RFC 1493 bridge Zyxel private common MIB

password protection

Yes

authentication type

HWTACACS+, IEEE 802.1x, RADIUS

Description
