Производитель: SECOMP

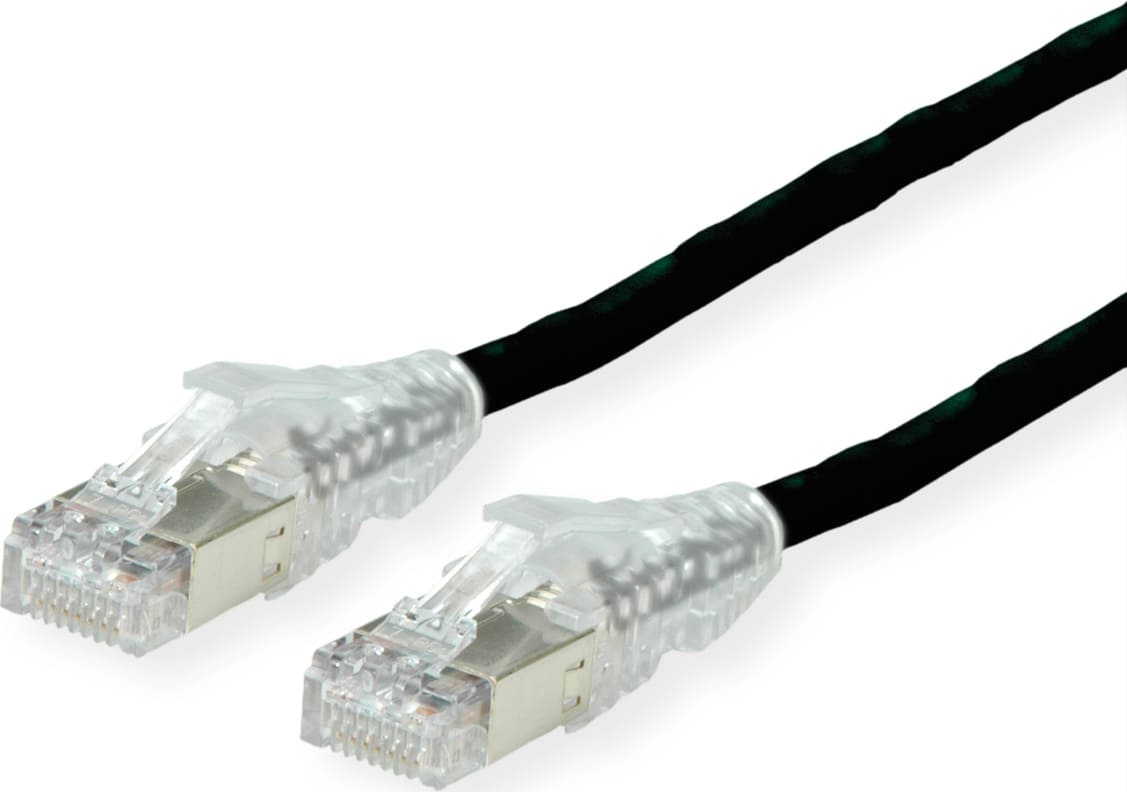

Secomp DÄTWYLER Cat.6A (Class EA) S/FTP patch cable, CU 7702 flex LSOH, AMP v2, black, 10 m

€50,94 с налогом

Артикул: ST10475980

Код производителя: 21.05.0605

Сайт производителя

гарантия: 12 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	LV	7 - 12 дня	5	€50,94 с налогом

Количество:

Specifications

Характеристики

manufacturer

SECOMP

product group

Twisted Pair Cable

product type

S/FTP patch cord (PiMF)

colour

black

side 1 connector type

RJ-45

side 1 connector gender

Male

side 2 connector type

RJ-45

side 2 connector gender

Male

height of packaging (single piece)

40

width of packaging (single piece)

250

depth of packaging (single piece)

280

package weight (single piece)

0.382

gross weight

0.382

transfer quality

Cat6A / Class EA

cable lsoh

yes

shield type

S/FTP (PiMF)

quantity of wires

8

impedance

100 Ohm

conductor cross section (awg)

AWG 26

conductor type

Stranded

crossed

no

assignment

EIA/TIA 568A

locking lever

yes

anti-kink sleeve

Put-on

colour (spout)

transparent

external cable diameter

6,0 mm

connector type rj45

AMP v2

garums

10

inner conductor material

BC (Bare Copper)

Description

DÄTWYLER data cable CU 7702 flex LS0H, assembled on both sides with AMP v2 connectors for use in 10 Gigabit Ethernet networks, Cat.6A, 1.2 GHz. Halogen-free, flame-retardant, low-smoke.

High-quality flexible patch cable with pair and overall shielding based on DÄTWYLER CU 7702 (Cat.7)
Assembled on both sides with Cat.6A connectors (AMP EMT connectors)
Kink protection and protective tab for locking pin
8-wire TP copper stranded wire, pair shielding: laminated aluminium foil, overall shielding: tinned copper braid
Cable sheath: flame-retardant, low-smoke, halogen-free polyolefin (FRNC/LSOH)
Outer diameter 6.0 mm (approximate)
Cat.6A Class EA according to ANSI / TIA
Pin assignment 8 wires 1:1 according to EIA/TIA 568A

Характеристики

manufacturer

SECOMP

product group

Twisted Pair Cable

product type

S/FTP patch cord (PiMF)

colour

black

side 1 connector type

RJ-45

side 1 connector gender

Male

side 2 connector type

RJ-45

side 2 connector gender

Male

height of packaging (single piece)

40

width of packaging (single piece)

250

depth of packaging (single piece)

280

package weight (single piece)

0.382

gross weight

0.382

transfer quality

Cat6A / Class EA

cable lsoh

yes

shield type

S/FTP (PiMF)

quantity of wires

8

impedance

100 Ohm

conductor cross section (awg)

AWG 26

conductor type

Stranded

crossed

no

assignment

EIA/TIA 568A

locking lever

yes

anti-kink sleeve

Put-on

colour (spout)

transparent

external cable diameter

6,0 mm

connector type rj45

AMP v2

garums

10

inner conductor material

BC (Bare Copper)

Description

DÄTWYLER data cable CU 7702 flex LS0H, assembled on both sides with AMP v2 connectors for use in 10 Gigabit Ethernet networks, Cat.6A, 1.2 GHz. Halogen-free, flame-retardant, low-smoke.

High-quality flexible patch cable with pair and overall shielding based on DÄTWYLER CU 7702 (Cat.7)
Assembled on both sides with Cat.6A connectors (AMP EMT connectors)
Kink protection and protective tab for locking pin
8-wire TP copper stranded wire, pair shielding: laminated aluminium foil, overall shielding: tinned copper braid
Cable sheath: flame-retardant, low-smoke, halogen-free polyolefin (FRNC/LSOH)
Outer diameter 6.0 mm (approximate)
Cat.6A Class EA according to ANSI / TIA
Pin assignment 8 wires 1:1 according to EIA/TIA 568A
