Производитель: LEVELONE

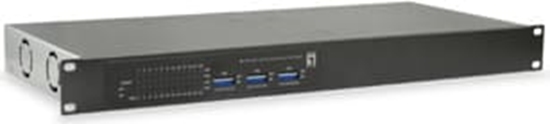

Level One LevelOne Switch 24x FE FGP-2602 2xGSFP 19" 380W 24xPoE

€497,06 с налогом

Артикул: ST04527277

Код производителя: FGP-2602W380

Сайт производителя

гарантия: 24 месяцы

Stock *

Склад	Доставка	Наличие	Цена
LV	7 - 12 дня	1	€497,06 с налогом
PL	8 - 15 дня	1	€524,79 с налогом

Количество:

Specifications

Характеристики

1
Details 2

Свойства	RJ-45

Status

10 dienas

Description

The LevelOne FGP-2602 series are unmanaged PoE switches with 24 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 150/250/380/500/630W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FGP-2602 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	26
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	24
Gigabit Ethernet (copper) ports quantity	2
SFP module slots quantity	2
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7
Full duplex	Y
Flow control support	Y
MAC address table	4000 entries
Switching capacity	8.8 Gbit/s
Jumbo frames support	Y
Jumbo frames	10000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	Y
Product colour	Black
Housing material	Metal
LED indicators	LAN, PoE, Power, Uplink
Safety	FCC Class A, CE
Buffer size	512 KB
Mean time between failures (MTBF)	50000 h
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power protection features	Over current, Over voltage, Overheating
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	380 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	200 mm
Depth	44 mm
Height	440 mm
Weight	2.9 kg
Cables included	AC
Manual	Y
Package width	260 mm
Package depth	95 mm
Package height	540 mm
Package weight	3.5 kg
Harmonized System (HS) code	85176990
Regulatory Approvals	EMI:EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013 EMS:EN55024:2010, IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004

Характеристики

1
Details 2

Свойства	RJ-45

Status

10 dienas

Description

The LevelOne FGP-2602 series are unmanaged PoE switches with 24 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 150/250/380/500/630W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FGP-2602 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	26
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	24
Gigabit Ethernet (copper) ports quantity	2
SFP module slots quantity	2
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7
Full duplex	Y
Flow control support	Y
MAC address table	4000 entries
Switching capacity	8.8 Gbit/s
Jumbo frames support	Y
Jumbo frames	10000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	Y
Product colour	Black
Housing material	Metal
LED indicators	LAN, PoE, Power, Uplink
Safety	FCC Class A, CE
Buffer size	512 KB
Mean time between failures (MTBF)	50000 h
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power protection features	Over current, Over voltage, Overheating
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	380 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	200 mm
Depth	44 mm
Height	440 mm
Weight	2.9 kg
Cables included	AC
Manual	Y
Package width	260 mm
Package depth	95 mm
Package height	540 mm
Package weight	3.5 kg
Harmonized System (HS) code	85176990
Regulatory Approvals	EMI:EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013 EMS:EN55024:2010, IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004
