Производитель: D-LINK

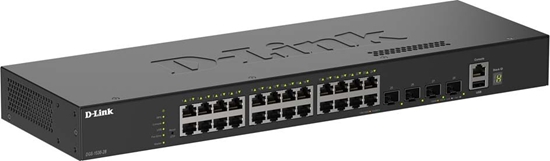

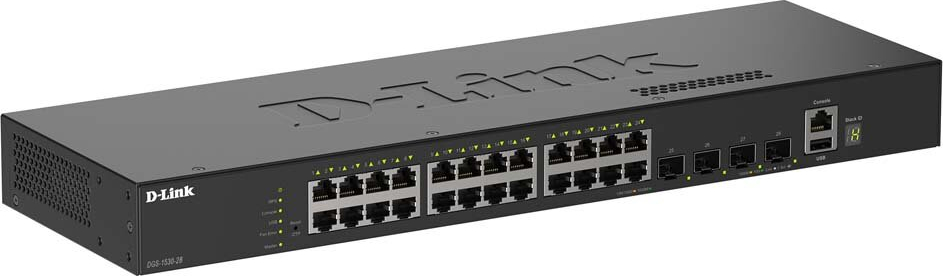

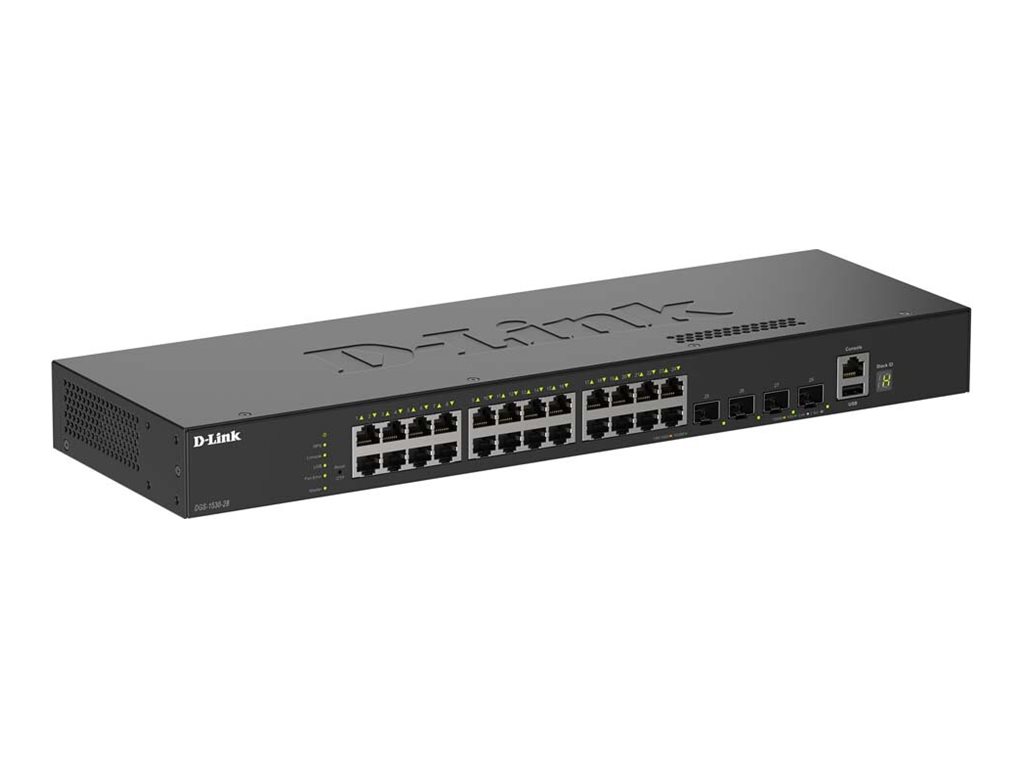

D-Link DGS-1530-28/E tīkla pārslēgs Vadīts L2 Gigabit Ethernet (10/100/1000) Melns

€783,55 с налогом

Артикул: ST09764709

Код производителя: DGS-1530-28/E

Сайт производителя

гарантия: 24 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	PL	8 - 15 дня	1	€783,55 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3

Свойства	RJ-45
WRL stadarti	802.11b
Количество портов RJ-45	24
Свойства	USB

auto mdi/mdi-x

Yes

power over ethernet (poe)

No

weight

2.15 kg

height

44 mm

width

440 mm

depth

140 mm

full duplex

Yes

auto-negotiation

Yes

switch type

Managed

stackable

Yes

switch layer

L2

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports quantity

24

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x

10g support

Yes

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

16000 entries

switching capacity

128 Gbit/s

forwarding rate

95.24 Mpps

store-and-forward

Yes

packet buffer memory

1.5 MB

access control list (acl)

Yes

mac address filtering

Yes

multicast support

Yes

rack mounting

Yes

product colour

Black

led indicators

Yes

noise level

40.9 dB

mean time between failures (mtbf)

530607 h

power consumption (max)

32 W

operating temperature (t-t)

-5 - 50 °C

storage temperature (t-t)

-20 - 70 °C

operating relative humidity (h-h)

0 - 95%

storage relative humidity (h-h)

0 - 95%

heat dissipation

109.1 BTU/h

power source

AC

ac input voltage

100 - 240 V

ac input frequency

50/60 Hz

ethernet lan data rates

10,1000,100 Mbit/s

usb 2.0 ports quantity

1

jumbo frames support

Yes

security algorithms

SNMP, SNMPv2, SNMPv3

number of fans

1 fan(s)

igmp snooping

Yes

spanning tree protocol

Yes

vlan support

Yes

policy-based routing

Yes

sfp+ module slots quantity

4

broadcast storm control

Yes

ssh/ssl support

Yes

number of vlans

4096

loop protection

Yes

console port

RJ-45

traffic classification

Yes

arp inspection

Yes

configuring location settings (cli)

Yes

password protection

Yes

authentication type

RADIUS, TACACS+

access control list (acl) ingress

2000

access control list (acl) egress

1000

usb type-a ports quantity

1

Description

D-Link DGS-1530-28/E. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24, USB 2.0 pieslēgvietu skaits: 1, Konsoles pieslēgvieta: RJ-45. Pilns duplekss. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 128 Gbit/s. Tīkla standarts: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x. Statņa montāža

Gross depth (mm)	440.00
Gross depth (mm)	440.00
Gross height (mm)	44.00
Gross height (mm)	44.00
Gross weight	2.45
Gross width (mm)	140.00
Gross width (mm)	140.00
Net weight	2.15
Tare weight (kg)	0.30
Tare weight (kg)	0.30
Volume (m3)	0.00
Volume (m3)	0.00
TI weight (kg)	0.5
TI weight (kg)	0.5
