PrevTP-LINK CPE220 wireless acc...

NextTP-Link CPE510 wireless acc...

Производитель: TP-LINK

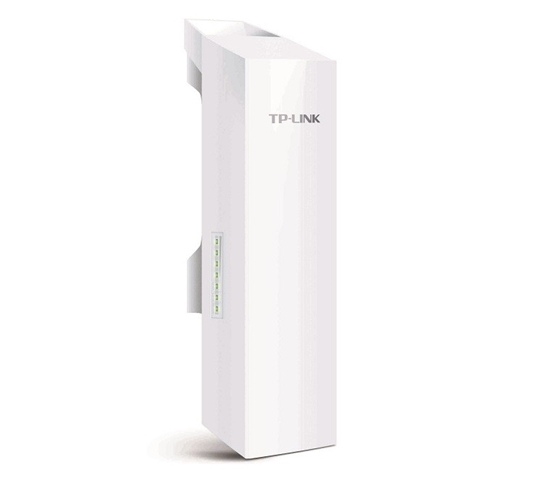

TP-LINK CPE510 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

€57,11 с налогом

Артикул: ST00598774

Код производителя: CPE510

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
LV	2 - 4 дня	5	€57,11 с налогом
PL	8 - 15 дня	4	€62,77 с налогом
DE	5 - 15 дня	8	€64,12 с налогом
LV	2 - 5 дня	5	€67,20 с налогом
PL	9 - 12 дня	30	€68,69 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7

WRL stadarti	802.11n
WRL stadarti	802.11a
Количество портов RJ-45	1
Свойства	RJ-45
Количество портов RJ-45	12
Свойства	Power

Type	Directional
Network architecture	FastEthernet
Usage	Outside
I/O ports	2 x 10/100 Mbit/s
Operating frequency	5 GHz
Polarization	Linear horizontal
Polarization	Linear vertical
Standards	802.11n
Standards	802.11a
Number of antennas	1
Antenna	Built-in
Antenna gain	13 (dBi)
Security	WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP
Power supply	Pasywny adapter PoE 24V 1A
System Requirements	- Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 8, Windows 7, MAC OS, NetWare, UNIX, Linux. - Zalecamy korzystanie z przeglądarek: Google Chrome, Safari oraz Firefox.
Accessories included	- Urządzenie CPE510 - Pasywny adapter PoE 24V 1A - Paski do montażu - Przewód zasilający - Skrócona instrukcja obsługi
Color	White
Dimensions	224 x 79 x 60 mm
Processor	Qualcomm Atheros Enterprise AR9350B 560MHz, MIPS 74Kc
Designation	CE+WEEE
Built-in RAM memory	64 (MegaBajt)
Built-in flash memory	8 (MegaBajt)
Width	135
Height	270
Depth	110
Weight	900
Description
Description	Zewnętrzne urządzenie CPE 5GHz 300Mbps Wyróżnione funkcje: - Wbudowana kierunkowa antena MIMO 2x2 o wzmocnieniu 13dBi - Regulowana moc nadajnika - System zoptymalizowany pod kątem transmisji na długie dystanse - Technologia TP-LINK Pharos MAXtream TDMA poprawia wydajność przesyłu danych i zmniejsza opóźnienia w transmisji do zastosowań w połączeniach typu punkt-wielopunkt - Centralny system zarządzania - Pharos Control - Tryby pracy Access Point / Client / Repeater / AP Router / WISP - Dołączony adapter Pasywnego PoE pozwala na zasilenie uzrądzenia oddalonego do 60 metrów oraz na jego zdalny reset

Maximum data transfer rate	300 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	5.15 - 5.85 GHz
Bandwidth	5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11n
Maximum outdoor range	15000 m
Receiver sensitivity	802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Management protocols	TDMA
Web-based management	Yes
Management platform	Pharos Control
Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45)
Power over Ethernet (PoE)	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.8 A
Power consumption (typical)	13 W
Product colour	White
Reset button	Yes
LED indicators	Yes
Certification	FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS
Internal	No
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	13 dBi
Built-in processor	Yes
Flash memory	8 MB
Internal memory	64 MB
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Width	224 mm
Depth	75 mm
Height	60 mm
Cables included	AC
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Harmonized System (HS) code	85176990
Description
Description	TP-Link CPE510. Maximum data transfer rate: 300 Mbit/s, Wi-Fi data rate (max): 300 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Management protocols: TDMA. Management platform: Pharos Control. WAN connection: Ethernet (RJ-45)

Description
	Data transmission speed 300 Mbps \| Antenna Type Built-in \| Antenna Gain 13 dB \| Wireless Frequency Range 5.15~5.85GHz \| Included Accessories Outdoor wireless access point, 24 V 0.5 A Passive PoE adapter, Pole mount kit, Power cable, Installation guide \| Colour White \| Dimensions 85.8×43.9×29.7 mm

Description

TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).

Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference

15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.

Gross depth (mm)	105
Gross height (mm)	268
Gross weight	0.73
Gross width (mm)	131
Net weight	0.48
Packing quantity	1.00
Paper/Pasteboard	200.00
Plastic (No PET)	50.00
Tare weight (kg)	0.25
Volume (m3)	0.00368634
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:5:2017-04-01
Ethernet LAN data rates	10/100
Producer product name	CPE510
Producer product family	5GHz 300Mbps 13dBi Outdoor CPE
Ethernet LAN (RJ-45) ports	1
Wi-Fi band	802.11n
Mesh Support	No
MU-MiMO	Yes
Antenna type	1xInternal
Mobile Broadband	No mobile broadband
Wi-Fi data rate (max)	300
Wi-Fi standards	802.11a/n
Other features	Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely.
Palette Qty	469
Producer	TP-LINK
Warranty	36

Description
	TP-LINK TPLINK Access Point Outdoor (CPE510)
