Производитель: UNI-T

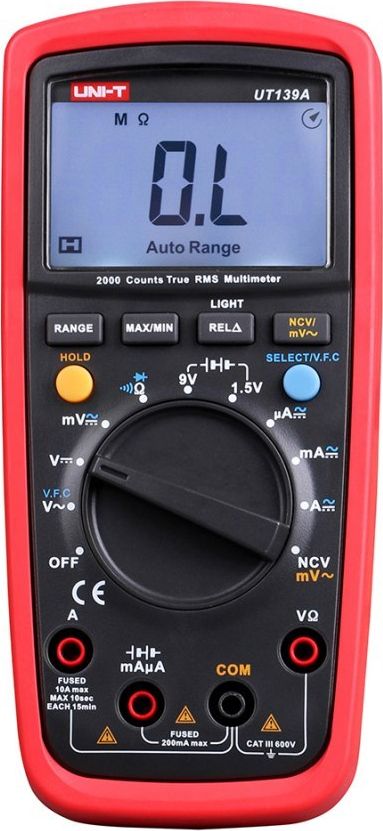

Uni-T Miernik uniwersalny Uni-T UT139A

€43,29 с налогом

Артикул: ST06302623

Код производителя: UT139A

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
PL	8 - 15 дня	14	€43,29 с налогом
	6 - 12 дня	60	€44,54 с налогом
PL	8 - 15 дня	59	€50,77 с налогом

Количество:

Specifications

Характеристики

Details 1
Details 2

ManufacturerModelTypeDC VoltageAC VoltageDC CurrentAC CurrentResistanceCapacitanceFrequencyBattery testMaximum readingAC frequency rangeRange switchingFunctionsSafetyPower supplyWeightDimensionsDisplay dimensionsCertifications

Description
Description	Uni-T UT139A True RMS Digital Multimeter The Uni-T UT139A is a True RMS digital multimeter designed for electricians who need a convenient and safe tool for everyday measurements. The device operates in CAT III 600V category, offers an NCV function for quick inspection of installation status, and features an easy-to-read display supported by a 31-segment analog bar graph. This model combines the series’ basic functionality with practical solutions that facilitate field work. Basic measurements with additional functions The UT139A model allows for the measurement of DC and AC voltage up to 600 V, DC and AC current up to 10 A, resistance, capacitance, and frequency, and additionally offers 1.5 V and 9 V battery testing. It stands out from other models with a maximum reading of 2000 and the inclusion of the V.F.C. (low-pass filter) function. Automatic and manual range switching allows you to adapt the operation to a specific measurement and enhances user convenience. Ease of use and safety The UT139A is equipped with a diode test, continuity buzzer, duty cycle measurement, Data Hold function, Relative mode, and LCD backlight. The UT139 series also offers full protection up to 600 V, automatic shut-off, and a True RMS function that increases measurement accuracy. It is a practical solution for users looking for a reliable multimeter for standard electrical tasks. Included Digital Multimeter AA Batteries x2 Test Leads x1 Specifications
Uni-T
UT139A
True RMS Digital Multimeter
20mV / 200mV / 2V / 20V / 200V / 600V ±(0.5%+2)
20 mV / 200 mV / 2 V / 20 V / 200 V / 600 V ±(1.0%+3)
200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.0%+2)
200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.2%+3)
200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ ±(1.0%+2)
9.999 nF ~ 99.99 mF ±(4.0%+5)
10 Hz ~ 10 MHz ±(0.1%+4)
1.5 V / 9 V ±(1.0%+2)
2000
45 Hz ~ 400 Hz
Automatic and manual
True RMS, NCV, diode test, continuity buzzer, duty cycle, Data Hold, Relative mode, LCD backlight, V.F.C
CAT III 600 V
2x 1.5V AA batteries
354 g
175 mm x 81 mm x 48.5 mm
58 mm x 36 mm
CE, UKCA, cETLus

Description

Uni-T UT139A True RMS digital multimeter The Uni-T UT139A is a True RMS digital multimeter designed for electricians who need a convenient and safe tool for everyday measurements. The device operates in CAT III 600V category, offers an NCV function for quick inspection of the installation, and features an easy-to-read display supported by a 31-segment analog bar graph. This model combines the series’ basic functionality with practical solutions that facilitate field work. Basic measurements with additional features The UT139A model allows for the measurement of DC and AC voltage up to 600 V, DC and AC current up to 10 A, resistance, capacitance, and frequency, and additionally offers 1.5 V and 9 V battery testing. It stands out from other models with a maximum reading of 2000 and the inclusion of the V.F.C. (low-pass filter) function. Automatic and manual range switching allows you to adapt the operation to a specific measurement and enhances user convenience. Ease of use and safety The UT139A is equipped with a diode test, continuity buzzer, duty cycle measurement, Data Hold function, Relative mode, and LCD backlight. The UT139 series also offers full protection up to 600 V, automatic shut-off, and a True RMS function that increases measurement accuracy. It is a practical solution for users looking for a reliable multimeter for standard electrical tasks. Included Digital multimeter 2 AA batteries Test leads (1 pair) Specifications Manufacturer Uni-T Model UT139A Product type True RMS digital multimeter DC voltage range 20 mV / 200 mV / 2 V / 20 V / 200 V / 600 V ±(0.5% + 2) AC voltage range 20 mV / 200 mV / 2 V / 20 V / 200 V / 600 V ±(1.0% + 3) DC current range 200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.0% + 2) AC current range 200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.2% + 3) Resistance measurement range 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ ±(1.0% + 2) Capacitance measurement range 9.999 nF – 99.99 mF ±(4.0% + 5) Frequency range 10 Hz – 10 MHz ±(0.1% + 4) Battery test range 1.5 V / 9 V ±(1.0% + 2) Maximum display reading 2000 AC frequency range 45 Hz – 400 Hz Range selection Automatic and manual Functions True RMS, NCV, diode test, continuity buzzer, duty cycle, Data Hold, Relative mode, LCD backlight, V.F.C. Measurement category CAT III 600 V Power supply 2 × 1.5 V AA batteries Weight 354 g Dimensions 175 × 81 × 48.5 mm Display dimensions 58 × 36 mm Certifications CE, UKCA, cETLus

Характеристики

Details 1
Details 2

Description
Description	Uni-T UT139A True RMS Digital Multimeter The Uni-T UT139A is a True RMS digital multimeter designed for electricians who need a convenient and safe tool for everyday measurements. The device operates in CAT III 600V category, offers an NCV function for quick inspection of installation status, and features an easy-to-read display supported by a 31-segment analog bar graph. This model combines the series’ basic functionality with practical solutions that facilitate field work. Basic measurements with additional functions The UT139A model allows for the measurement of DC and AC voltage up to 600 V, DC and AC current up to 10 A, resistance, capacitance, and frequency, and additionally offers 1.5 V and 9 V battery testing. It stands out from other models with a maximum reading of 2000 and the inclusion of the V.F.C. (low-pass filter) function. Automatic and manual range switching allows you to adapt the operation to a specific measurement and enhances user convenience. Ease of use and safety The UT139A is equipped with a diode test, continuity buzzer, duty cycle measurement, Data Hold function, Relative mode, and LCD backlight. The UT139 series also offers full protection up to 600 V, automatic shut-off, and a True RMS function that increases measurement accuracy. It is a practical solution for users looking for a reliable multimeter for standard electrical tasks. Included Digital Multimeter AA Batteries x2 Test Leads x1 Specifications
Uni-T
UT139A
True RMS Digital Multimeter
20mV / 200mV / 2V / 20V / 200V / 600V ±(0.5%+2)
20 mV / 200 mV / 2 V / 20 V / 200 V / 600 V ±(1.0%+3)
200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.0%+2)
200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.2%+3)
200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ ±(1.0%+2)
9.999 nF ~ 99.99 mF ±(4.0%+5)
10 Hz ~ 10 MHz ±(0.1%+4)
1.5 V / 9 V ±(1.0%+2)
2000
45 Hz ~ 400 Hz
Automatic and manual
True RMS, NCV, diode test, continuity buzzer, duty cycle, Data Hold, Relative mode, LCD backlight, V.F.C
CAT III 600 V
2x 1.5V AA batteries
354 g
175 mm x 81 mm x 48.5 mm
58 mm x 36 mm
CE, UKCA, cETLus
