    Производитель: UNI-T

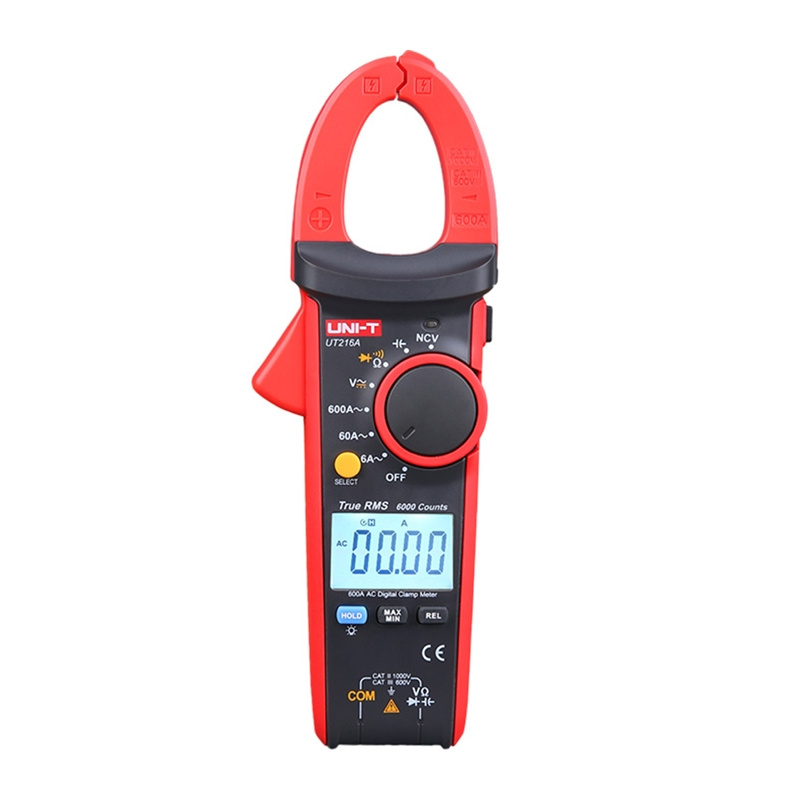

    Uni-T UT216A Digital Clamp Meter


    €62,99 с налогом

    Артикул: ST10472308
    Код производителя: UT216A
    Сайт производителя
    гарантия: 12 месяцы
    *
    Склад Доставка Наличие Цена
    PL

    Характеристики
    ManufacturerModelTypeAC currentAC current rangeAC voltageAC voltage rangeDC voltageResistanceCapacitanceMaximum readingFunctionsJaw openingPower supplyDisplayDimensionsWeightColorCertifications
    Description

    Uni-T UT216A Digital Clamp Meter

    The Uni-T UT216A digital clamp meter is a versatile tool designed for use with electrical installations and high-frequency systems, such as IT infrastructure and server rooms. The clamp design allows for quick current measurement without disrupting the circuit, which significantly simplifies daily diagnostics.

    Wide measurement range and high-frequency operation

    The UT216A model enables measurement of AC current up to 600A and AC voltage up to 750V and DC voltage up to 1000V, making it suitable for more demanding applications. Support for higher voltage frequencies allows operation in environments such as electronic device power supply systems.

    Features for accurate analysis

    True RMS ensures reliable measurement results, while MAX/MIN and Relative modes allow for better analysis of parameter changes. The NCV function enables quick non-contact voltage detection, and Data Hold makes it easier to read results in hard-to-reach places.

    Convenient design and everyday functionality

    The ergonomic housing and 30 mm jaw opening ensure comfort even during extended use. The display backlight and built-in flashlight facilitate work in low light, while the auto-off feature and low battery indicator assist with daily use.

    Included

    • Clamp meter
    • Batteries x3
    • Test leads
    • Carrying case
    • User manual

    Specifications

    Uni-T
    UT216A
    True RMS clamp meter
    600A ±(2.5%+5)
    50/60Hz
    750V ±(1.2%+5)
    40Hz ~ 400Hz
    1000V ±(0.8%+1)
    60MΩ ±(1%+2)
    60mF ±(4%+5)
    6000
    True RMS, NCV, diode test, continuity test, Data Hold, Relative mode, MAX/MIN, LCD backlight, flashlight, auto-range, auto-off, low battery indicator
    30 mm
    3x 1.5V battery (R03)
    38 x 24 mm
    220 x 75 x 40 mm
    280 g
    Red and gray
    CE, UKCA, cETLus
    Description
    Uni-T UT216A digital clamp meter The Uni-T UT216A is a digital clamp meter designed for use with electrical installations and systems operating at high frequencies, such as IT infrastructure and server rooms. The clamp design allows for quick current measurement without the need to disconnect the circuit, which significantly streamlines diagnostics. The model can measure AC current up to 600 A, AC voltage up to 750 V, and DC voltage up to 1000 V, making it suitable for both routine maintenance and more demanding measurements. Support for higher voltage frequencies expands its application in modern electronic and power supply systems. Features that enhance convenience and measurement accuracy The meter is equipped with a True RMS function, which ensures accurate measurements of alternating signals, while the MAX/MIN and Relative modes facilitate the analysis of parameter changes. Non-contact voltage detection (NCV) allows you to quickly check for the presence of voltage without touching the wire, while the Data Hold function allows you to conveniently freeze the result on the screen. The ergonomic housing, 30 mm jaw opening, backlit display, and built-in flashlight enhance comfort in various working conditions, while the auto-off feature and low-battery indicator assist in daily use. Included Clamp meter Test leads (1 pair) 3 AAA batteries Carrying case User manual Specifications Manufacturer Uni-T Model UT216A Product type True RMS digital clamp meter AC current range 600 A ±(2.5% + 5) AC current frequency response 50 / 60 Hz AC voltage range 750 V ±(1.2% + 5) AC voltage frequency response 40 Hz – 400 Hz DC voltage range 1000 V ±(0.8% + 1) Resistance measurement range 60 MΩ ±(1% + 2) Capacitance measurement range 60 mF ±(4% + 5) Maximum display reading 6000 Functions True RMS, NCV, diode test, continuity test, Data Hold, Relative mode, MAX/MIN, LCD backlight, flashlight, auto-range, auto-off, low battery indicator Jaw opening 30 mm Power supply 3 × 1.5 V (R03) Display dimensions 38 × 24 mm Dimensions 220 × 75 × 40 mm Weight 280 g Color Red and gray Certifications CE, UKCA, cETLus

    Характеристики
    ManufacturerModelTypeAC currentAC current rangeAC voltageAC voltage rangeDC voltageResistanceCapacitanceMaximum readingFunctionsJaw openingPower supplyDisplayDimensionsWeightColorCertifications
    Description

    Uni-T UT216A Digital Clamp Meter

    The Uni-T UT216A digital clamp meter is a versatile tool designed for use with electrical installations and high-frequency systems, such as IT infrastructure and server rooms. The clamp design allows for quick current measurement without disrupting the circuit, which significantly simplifies daily diagnostics.

    Wide measurement range and high-frequency operation

    The UT216A model enables measurement of AC current up to 600A and AC voltage up to 750V and DC voltage up to 1000V, making it suitable for more demanding applications. Support for higher voltage frequencies allows operation in environments such as electronic device power supply systems.

    Features for accurate analysis

    True RMS ensures reliable measurement results, while MAX/MIN and Relative modes allow for better analysis of parameter changes. The NCV function enables quick non-contact voltage detection, and Data Hold makes it easier to read results in hard-to-reach places.

    Convenient design and everyday functionality

    The ergonomic housing and 30 mm jaw opening ensure comfort even during extended use. The display backlight and built-in flashlight facilitate work in low light, while the auto-off feature and low battery indicator assist with daily use.

    Included

    • Clamp meter
    • Batteries x3
    • Test leads
    • Carrying case
    • User manual

    Specifications

    Uni-T
    UT216A
    True RMS clamp meter
    600A ±(2.5%+5)
    50/60Hz
    750V ±(1.2%+5)
    40Hz ~ 400Hz
    1000V ±(0.8%+1)
    60MΩ ±(1%+2)
    60mF ±(4%+5)
    6000
    True RMS, NCV, diode test, continuity test, Data Hold, Relative mode, MAX/MIN, LCD backlight, flashlight, auto-range, auto-off, low battery indicator
    30 mm
    3x 1.5V battery (R03)
    38 x 24 mm
    220 x 75 x 40 mm
    280 g
    Red and gray
    CE, UKCA, cETLus
    Description
    Uni-T UT216A digital clamp meter The Uni-T UT216A is a digital clamp meter designed for use with electrical installations and systems operating at high frequencies, such as IT infrastructure and server rooms. The clamp design allows for quick current measurement without the need to disconnect the circuit, which significantly streamlines diagnostics. The model can measure AC current up to 600 A, AC voltage up to 750 V, and DC voltage up to 1000 V, making it suitable for both routine maintenance and more demanding measurements. Support for higher voltage frequencies expands its application in modern electronic and power supply systems. Features that enhance convenience and measurement accuracy The meter is equipped with a True RMS function, which ensures accurate measurements of alternating signals, while the MAX/MIN and Relative modes facilitate the analysis of parameter changes. Non-contact voltage detection (NCV) allows you to quickly check for the presence of voltage without touching the wire, while the Data Hold function allows you to conveniently freeze the result on the screen. The ergonomic housing, 30 mm jaw opening, backlit display, and built-in flashlight enhance comfort in various working conditions, while the auto-off feature and low-battery indicator assist in daily use. Included Clamp meter Test leads (1 pair) 3 AAA batteries Carrying case User manual Specifications Manufacturer Uni-T Model UT216A Product type True RMS digital clamp meter AC current range 600 A ±(2.5% + 5) AC current frequency response 50 / 60 Hz AC voltage range 750 V ±(1.2% + 5) AC voltage frequency response 40 Hz – 400 Hz DC voltage range 1000 V ±(0.8% + 1) Resistance measurement range 60 MΩ ±(1% + 2) Capacitance measurement range 60 mF ±(4% + 5) Maximum display reading 6000 Functions True RMS, NCV, diode test, continuity test, Data Hold, Relative mode, MAX/MIN, LCD backlight, flashlight, auto-range, auto-off, low battery indicator Jaw opening 30 mm Power supply 3 × 1.5 V (R03) Display dimensions 38 × 24 mm Dimensions 220 × 75 × 40 mm Weight 280 g Color Red and gray Certifications CE, UKCA, cETLus
