Производитель: UNI-T

UNI-T UT373 non-contact tachometer

€25,58 с налогом

Артикул: ST09791204

Код производителя: UT373

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
	6 - 12 дня	574	€25,58 с налогом
PL	8 - 15 дня	574	€28,02 с налогом

Количество:

Specifications

Характеристики

Details 1
Details 2

Description

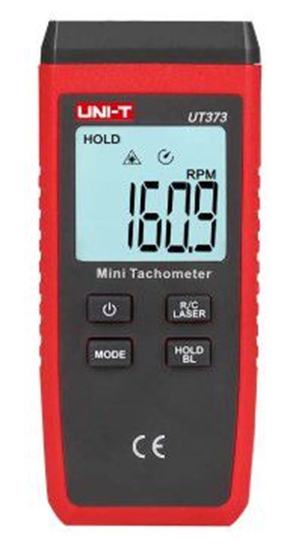

UNI-T UT373 non-contact tachometer

The UNI-T UT373 non-contact tachometer is a reliable tool for measuring the speed of motors and other machines, providing safe and precise results without the need for contact with a rotating object. The device allows measurement in RPM units, offering automatic range selection and displaying values up to 99999, with an overload ("OL") indication function. The UT373 features Max/Min functions, result retention (Data Hold), active measurement indication (Signal Trigger/Laser-On), as well as a low charge indicator and automatic shutdown. The backlit LCD display ensures readability in all operating conditions, and CE and UKCA certifications confirm high quality and safety standards.

Functionality that makes everyday work easier

The UT373 is designed for quick and easy operation - automatic range selection allows for instant accurate results, and Max/Min functions help monitor extreme values during tests. The data retention function allows you to conveniently save the result on the display, which is extremely useful when analyzing measurements. The tachometer indicates laser activity and low charge status, ensuring uninterrupted operation without unnecessary interruptions.

Robust design and convenience of use

The UNI-T UT373 features a lightweight, ergonomic design and the ruggedness necessary for industrial and workshop environments. Thanks to the backlit LCD display, reading the results is possible even in dimly lit areas. Automatic shutdown of the device after a period of inactivity helps save energy and prolongs battery life. The UT373 is the ideal solution for professionals who value safety, precision and comfort every day.

Included

tachometer

batteries

reflective tape

user's manual

Manufacturer
UNI-T

Model
UT373

Power supply
3 × battery 1.5 V (R03)

Display
5-digit segment code; maximum value 99999

Color
Red, gray

Weight
85 g (without battery)

Dimensions
183.8 × 56 × 34 mm

Speed measurement (RPM)
10.0 ~ 9999.9 RPM (resolution: 0.1 RPM)

Speed measurement (RPM)
10000 ~ 99999 RPM (resolution: 1 RPM)

RPM counting
0 ~ 99999 counts (resolution: 1)

Accuracy:
Speed measurement: ±(0.04%+2); RPM counting: ±1

Automatic range selection
Supported

Automatic shutdown
Supported

Low battery indicator
Built-in

Active laser indication
Supported

Data hold function
Supported

Maximum and minimum value recording (MAX/MIN)
Supported

Switching of speed/counting function
Supported

Overload signaling
Supported

LCD display backlighting
Built-in

Refresh rate
1 s to 7 s (for speeds >120 RPM: 1 s)

Sensor type
Photodiode and laser tube

Measurement distance
50 mm ~ 200 mm

Measurement angle
±30° from the perpendicular axis

Drop test
1 m
