PrevZyxel GS-108B

NextZyxel GS1100-16 V3 16 Port ...

Производитель: ZYXEL

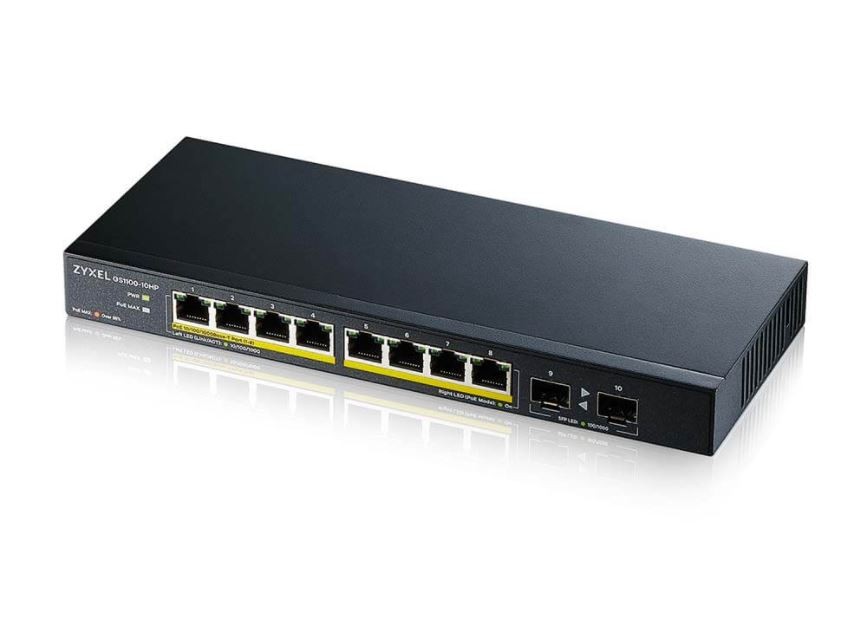

Zyxel GS1100-10HP v2 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

€140,51 с налогом

Артикул: ST05355635

Код производителя: GS1100-10HP-EU0102F

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
PL	9 - 12 дня	2	€140,51 с налогом
LV	7 - 12 дня	1	€172,53 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3
Details 4

Свойства	RJ-45
WRL stadarti	802.11b
Количество портов RJ-45	8

Switch class	Unmanaged
Application	Home and small office
Network architecture	GigabitEthernet
Number of 10/100/1000 Mbps ports	8
Number of PoE ports (PoE & PoE+)	8
Number of SFP ports	2
Console port	No
Forwarding mode	Store-and-forward
Throughput	20 (Gigabity na sek.)
Forwarding rate	14.88 (Mpps)
Packet buffer	256 (Kilobajt)
MAC address table size	8000
Support for Jumbo frames	Yes
Jumbo frame size	9000 (Kilobajt)
Supported protocols and standards	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3az EEE support IEEE 802.3x flow control IEEE 802.3z 1000BASE-X IEEE 802.1p CoS IEEE 802.3af PoE (GS1100-10HP) IEEE 802.3at PoE+ (GS1100-10HP)
Chassis type	Desktop
Fan	No
Power supply	External
Power consumption	156.1 (Watt)
Mean time between failures (MTBF)	1000070 (Hour)
Accessories included	Zasilacz Kabel zasilający Zestaw do montażu na ścianie
Power supply	100 - 240 V AC, 50/60 Hz
Dimensions	250 x 104 x 27 mm
Weight	0.73 (kilogram)
Designation	CE+WEEE
Width	300
Height	65
Depth	250
Weight	1800
Description
Description	Szept cichej pracy Bezwentylatorowa konstrukcja GS1100 zapewnia cichą pracę w małych i cichych pomieszczeniach biurowych. Model PoE GS1100-10HP jest wyposażony w zewnętrzny zasilacz, który eliminuje potrzebę dodatkowego wentylatora chłodzącego urządzenie, dzięki czemu idealnie nadaje się do cichych zastosowań PoE. Oszczędność energii GS1100 jest wyposażony w energooszczędny Ethernet (IEEE 802. 3az), który automatycznie wykrywa ruch sieciowy i dynamicznie dostosowuje zużycie energii. Zielone funkcje Zyxel dostosowują również zużycie energii, wykrywając stan łącza i długość kabla oraz zmniejszając koszty eksploatacji. Obsługa PoE+ Model GS1100-10HP obsługuje technologię PoE+ (IEEE 802. 3at), która zapewnia maksymalnie 30 W na port i zapewnia w pełni automatyczne wsparcie dla kompatybilnych telefonów IP, kamer nadzoru wideo lub bezprzewodowych punktów dostępowych.

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Power connector	DC-in jack
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	100,1000 Mbit/s
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	0.256 MB
Product colour	Black
LED indicators	Yes
Wall mountable	Yes
Country of origin	China
Mean time between failures (MTBF)	1000070 h
Power source	AC/DC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC input voltage	54 V
Power consumption (max)	156.1 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Total Power over Ethernet (PoE) budget	130 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Heat dissipation	89 BTU/h
Width	250 mm
Depth	104 mm
Height	27 mm
Weight	730 g
Package width	228 mm
Package depth	304 mm
Package height	67 mm
Package weight	1.97 kg
Sustainability compliance	Yes
Sustainability certificates	RoHS
Master (outer) case width	323 mm
Master (outer) case length	558 mm
Master (outer) case height	275 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	13.7 kg
Products per master (outer) case	8 pc(s)
Description
Description	Zyxel GS1100-10HP v2. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

auto mdi/mdi-x

Yes

power over ethernet (poe)

Yes

manufacturer

ZYXEL COMMUNICATIONS

product type

Network Switches

weight

730 g

height

27 mm

width

250 mm

depth

104 mm

switch type

Unmanaged

wall mountable

Yes

country of origin

China

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

sfp module slots quantity

power connector

DC-in jack

networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

mac address table

8000 entries

switching capacity

20 Gbit/s

forwarding rate

14.88 Mpps

packet buffer memory

0.256 MB

product colour

Black

led indicators

Yes

mean time between failures (mtbf)

1000070 h

power consumption (max)

156.1 W

power over ethernet (poe) ports quantity

total power over ethernet (poe) budget

130 W

operating temperature (t-t)

0 - 50 °C

storage temperature (t-t)

-40 - 70 °C

operating relative humidity (h-h)

10 - 90%

storage relative humidity (h-h)

10 - 95%

heat dissipation

89 BTU/h

package width

228 mm

package depth

304 mm

package height

67 mm

package weight

1.97 kg

harmonized system (hs) code

85176990

compliance certificates

RoHS

power source

AC/DC

ac input voltage

100 - 240 V

ac input frequency

50 - 60 Hz

ethernet lan data rates

100,1000 Mbit/s

master (outer) case gross weight

13.7 kg

master (outer) case width

323 mm

master (outer) case length

558 mm

master (outer) case height

275 mm

products per master (outer) case

8 pc(s)

jumbo frames support

Yes

sustainability compliance

Yes

number of fans

0 fan(s)

jumbo frames

9000

power supply included

Yes

dc input voltage

54 V

Description

Zyxel GS1100-10HP v2. Slēdža tips: Nepārvaldīts. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 8. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 20 Gbit/s. Tīkla standarts: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... DC ievades spriegums: 54 V. Saspraudnis: DC-ligzda. Power over Ethernet (PoE). Pie sienas piestiprināms
