| manufacturer | ATEN |
| product group | KVM (IP) extensions |

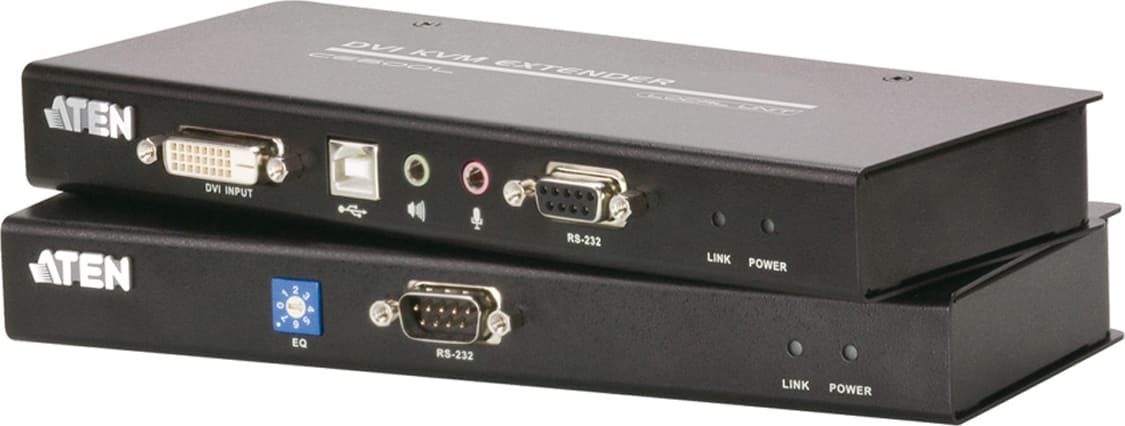

| product type | KVM-Extender, DVI |
| colour | black |
| weight | 490 g |
| height of packaging (single piece) | 100 mm |
| width of packaging (single piece) | 220 mm |
| depth of packaging (single piece) | 320 mm |
| package weight (single piece) | 1.819 kg |
| gross weight | 1.819 |
| current catalog edition | 24.1 |
| technical particularity | RS232, Audio |
| scope of delivery | 1x CE600L DVI KVM Extender (Local Unit), 1x CE600R DVI KV... |
| height | 25 mm |
| width | 200 mm |
| depth | 80 mm |
| dimensions (hxwxd) | 25 x 200 x 80 mm |
| material (casing) | metal |
| supported pc-systems | USB |
| max. resolution (nominal) | 1920 x 1200 (30m); 1024 x 768 (60m) |
| colour (design profile) | black |
| power supply unit required | yes |
| power supply output | DC5,3V/3W |
| pc/switch: monitor connection | 1x HD 15-pin M |
| pc/switch: mouse/keyboard connection | USB |
| pc/switch: connection on moulded cables | no |
| local console connection | yes |
| remote console: monitor connection | 1x HD 15-pin F |
| remote console: mouse/keyboard connection | 2x USB |
| remote console: cable connector type | yes |
| network connection | RJ45 |
| max. distance local-remote unit | 60 m |
| mains connection | Appliance Europlug, Type-C |
| audio extender | Speakers and microphones |
| max. distance pc-extension unit (local unit) | 3 m |
