| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| Console ports | DVI-D, USB A |
| DVI-D ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Audio connections | Yes |
| DC-in jack | No |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| HDCP | Yes |
| Product colour | Black |
| Cable length | 1.2 m |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | No |
| AC input voltage | 5 V |
| Power consumption (typical) | 5 W |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Sustainability certificates | RoHS |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 75.4 mm |
| Depth | 123 mm |
| Height | 22.8 mm |
| Weight | 330 g |
| Manual | Yes |
| Description |

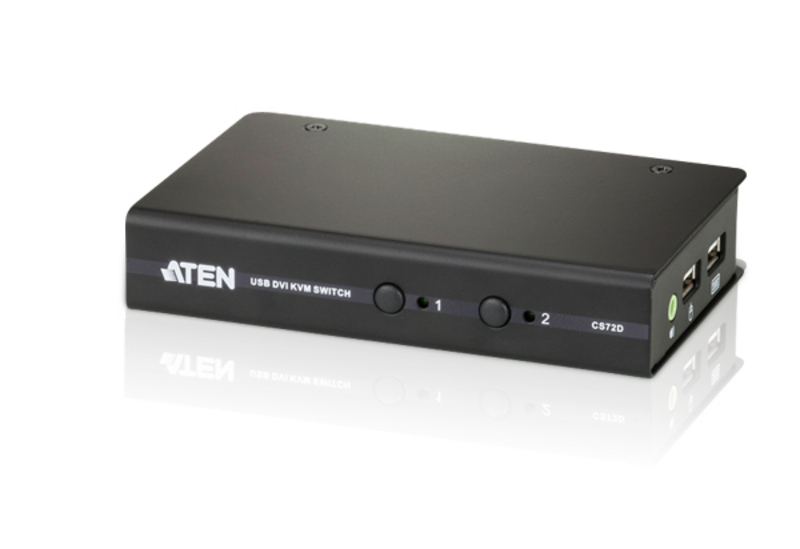

| ATEN CS72D. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-D. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Cable length: 1.2 m. AC input voltage: 5 V, Power consumption (typical): 5 W. Sustainability certificates: RoHS |
