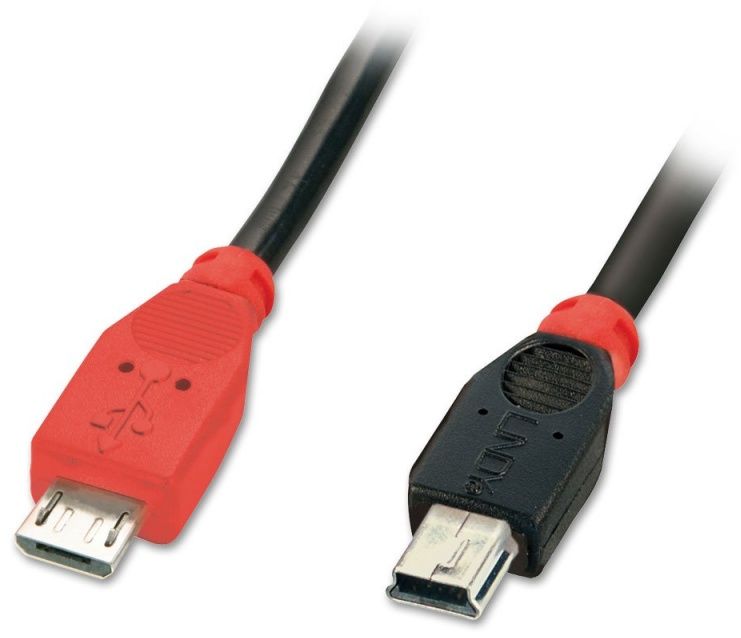

Lindy USB 2.0 Cable Micro-B/ Mini-B OTG, 1m

 Connectors

• Connector A: USB 2.0 Type Micro-B Male
• Connector B: USB 2.0 Type Mini-B Male
• Housing Material: PVC
• Shielding in head shell: -
• Connector Plating: Nickel
• Pin Construction: Copper Alloy
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:

• Micro-B: 22.75x10.2x6mm (0.9x0.4x0.24in)
• Mini-B: 22.75x10.2x6mm (0.9x0.4x0.24in)

Cable Construction

• Length: 1m (3.28ft)
• Standard: USB 2.0
• Colour: Black
• Type: Round
• Jacket Diameter: 3.5mm (0.14in)
• Jacket Material: PVC
• Conductor Material: Copper
• Conductor Gauge Power: 28AWG
• Conductor Gauge Data: 28AWG
• Shielding: Aluminium Magnesium Braid

Specifications

• Supported Bandwidth: 480Mbps
• Nominal attenuation: 1-400MHz < 5.8dB
• Minimum Bend Radius: 42mm (1.65in)
• Operating Temperature: -10°C - 40°C (14°F - 104°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL & California Proposition 65

Purchasing Information

• No.: 31718
• EAN: 4002888317184

This product is also available in other lengths

• 31717 - 0.5m (1.64ft)
• 31718 - 1m (3.28ft)
• 31719 - 2m (6.56ft)
