    Iepriekšējais produktsLindy 7,5m DVI-D Dual Link ...
    Nākamais produktsLindy 7.5m 8K60Hz HDMI Cabl...
    Ražotājs: LINDY

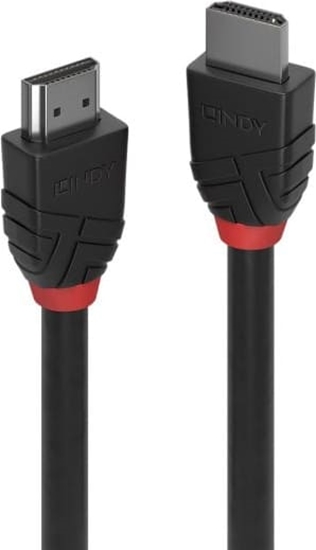

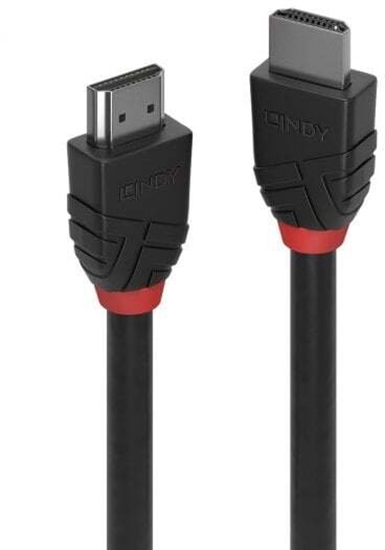

    Lindy 7.5m 4K60Hz HDMI Cable, LSZH


    €40,05 ar pvn

    Artikuls: ST10095780
    Preces kods: 36506
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Krāsa Zelta
    Krāsa Melna
    Vada garums (m.) 7.5 m
    Īpašības HDMI
    plug and playYes
    gross weight0.46
    data transfer rate18 Gbit/s
    cable length7.5 m
    cable materialCopper
    cable typeRound cable
    country of originCN
    product colourBlack
    operating temperature (t-t)-10 - 80 °C
    storage temperature (t-t)-20 - 85 °C
    connector 1HDMI Type A (Standard)
    connector 2HDMI Type A (Standard)
    connector 1 genderMale
    connector 2 genderMale
    quantity per pack1 pc(s)
    package typePolybag
    connector contacts platingGold
    compliance certificatesREACH, RoHS
    awg wire size28
    connector 1 form factorStraight
    connector 2 form factorStraight
    magnetically shieldedYes
    cable jacket materialLow smoke zero halogen (LSZH), Polyvinyl chloride (PVC)
    maximum refresh rate60 Hz
    3dYes
    supported graphics resolutions3840 x 2160
    doesn't containHalogen
    supported video modes2160p
    cable diameter5.5 mm
    dolby technologiesDTS-HD Master Audio, Dolby TrueHD
    nominal attenuation300kHz~825MHz<5dB 825MHz~2.475GHz<5dB 2.475GHz~4.125GHz<12dB 4.125GHz~5.1GHz<20dB
    shield materialAluminium
    bending radius (min)6 cm
    colour sampling4:4:4
    net weight0.46
    supported digital audio channels (uncompressed)32
    hdmi cable typeHigh Speed HDMI cable
    packaging height0.70
    packaging lenght750.00
    packaging width2.00
    variation of36501
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/a2/8c/2d/68/682d8ca2f3fdaf1c2e9e7f16/CE_36501-7.pdf
    Description

    Connectors

    • Connector A: HDMI® Type A Male
    • Connector B: HDMI® Type A Male
    • Housing material: LSZH PVC
    • Connector plating: Gold Plating
    • Pin construction: Copper Alloy
    • Pin Plating: Gold Plated
    • Dimensions (WxDxH): 20.3 x 35.8 x 10.5mm (0.79 x 1.40 x 0.41in)

    Cable Construction

    • Length: 7.5m (24.60ft)
    • Standard: High Speed HDMI®
    • Colour: Black
    • Type: Round
    • Jacket diameter: 7.0mm (0.27in)
    • Jacket material: LSZH PVC
    • Conductor material: Bare Copper
    • Conductor gauge: 28AWG
    • Shielding: Aluminum Foil
    • Braid Shielding: Aluminum-Magnesium

    Technical Information

    • Supported bandwidth: 18Gbps
    • Maximum resolution: 3840x2160@60Hz 4:4:4,8bit
    • Nominal attenuation:
      • 300kHz~825MHz<5dB
      • 825MHz~2.475GHz<5dB
      • 2.475GHz~4.125GHz<12dB
      • 4.125GHz~5.1GHz<20dB
    • Minimum bend radius: 60mm (2.36in)
    • Operating Temperature: -10°C - 80°C (14°F - 176°F)
    • Storage Temperature: -20°C - 85°C (-4°F - 185°F)
    • ATC Approved: No

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS & REACH, California Proposition 65

    Purchasing Information

    • No.: 36506
    • EAN: 4002888365062

    This product is also available in other lengths

    • 36501 - 0.5m (1.64ft)
    • 36502 - 1m (3.28ft)
    • 36503 - 2m (6.56ft)
    • 36504 - 3m (9.84ft)
    • 36505 - 5m (16.44ft)
    • 36506 - 7.5m (24.60ft)
    • 36507 - 10m (32.80ft)


    CE Doc: CE_36501-7.pdf

    Specifikācija
    Krāsa Zelta
    Krāsa Melna
    Vada garums (m.) 7.5 m
    Īpašības HDMI
    plug and playYes
    gross weight0.46
    data transfer rate18 Gbit/s
    cable length7.5 m
    cable materialCopper
    cable typeRound cable
    country of originCN
    product colourBlack
    operating temperature (t-t)-10 - 80 °C
    storage temperature (t-t)-20 - 85 °C
    connector 1HDMI Type A (Standard)
    connector 2HDMI Type A (Standard)
    connector 1 genderMale
    connector 2 genderMale
    quantity per pack1 pc(s)
    package typePolybag
    connector contacts platingGold
    compliance certificatesREACH, RoHS
    awg wire size28
    connector 1 form factorStraight
    connector 2 form factorStraight
    magnetically shieldedYes
    cable jacket materialLow smoke zero halogen (LSZH), Polyvinyl chloride (PVC)
    maximum refresh rate60 Hz
    3dYes
    supported graphics resolutions3840 x 2160
    doesn't containHalogen
    supported video modes2160p
    cable diameter5.5 mm
    dolby technologiesDTS-HD Master Audio, Dolby TrueHD
    nominal attenuation300kHz~825MHz<5dB 825MHz~2.475GHz<5dB 2.475GHz~4.125GHz<12dB 4.125GHz~5.1GHz<20dB
    shield materialAluminium
    bending radius (min)6 cm
    colour sampling4:4:4
    net weight0.46
    supported digital audio channels (uncompressed)32
    hdmi cable typeHigh Speed HDMI cable
    packaging height0.70
    packaging lenght750.00
    packaging width2.00
    variation of36501
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/a2/8c/2d/68/682d8ca2f3fdaf1c2e9e7f16/CE_36501-7.pdf
    Description

    Connectors

    • Connector A: HDMI® Type A Male
    • Connector B: HDMI® Type A Male
    • Housing material: LSZH PVC
    • Connector plating: Gold Plating
    • Pin construction: Copper Alloy
    • Pin Plating: Gold Plated
    • Dimensions (WxDxH): 20.3 x 35.8 x 10.5mm (0.79 x 1.40 x 0.41in)

    Cable Construction

    • Length: 7.5m (24.60ft)
    • Standard: High Speed HDMI®
    • Colour: Black
    • Type: Round
    • Jacket diameter: 7.0mm (0.27in)
    • Jacket material: LSZH PVC
    • Conductor material: Bare Copper
    • Conductor gauge: 28AWG
    • Shielding: Aluminum Foil
    • Braid Shielding: Aluminum-Magnesium

    Technical Information

    • Supported bandwidth: 18Gbps
    • Maximum resolution: 3840x2160@60Hz 4:4:4,8bit
    • Nominal attenuation:
      • 300kHz~825MHz<5dB
      • 825MHz~2.475GHz<5dB
      • 2.475GHz~4.125GHz<12dB
      • 4.125GHz~5.1GHz<20dB
    • Minimum bend radius: 60mm (2.36in)
    • Operating Temperature: -10°C - 80°C (14°F - 176°F)
    • Storage Temperature: -20°C - 85°C (-4°F - 185°F)
    • ATC Approved: No

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS & REACH, California Proposition 65

    Purchasing Information

    • No.: 36506
    • EAN: 4002888365062

    This product is also available in other lengths

    • 36501 - 0.5m (1.64ft)
    • 36502 - 1m (3.28ft)
    • 36503 - 2m (6.56ft)
    • 36504 - 3m (9.84ft)
    • 36505 - 5m (16.44ft)
    • 36506 - 7.5m (24.60ft)
    • 36507 - 10m (32.80ft)


    CE Doc: CE_36501-7.pdf
