    Iepriekšējais produktsLindy 15m USB 3.0 Active Ex...
    Nākamais produktsLindy 15m USB 3.0 Active Ex...
    Ražotājs: LINDY

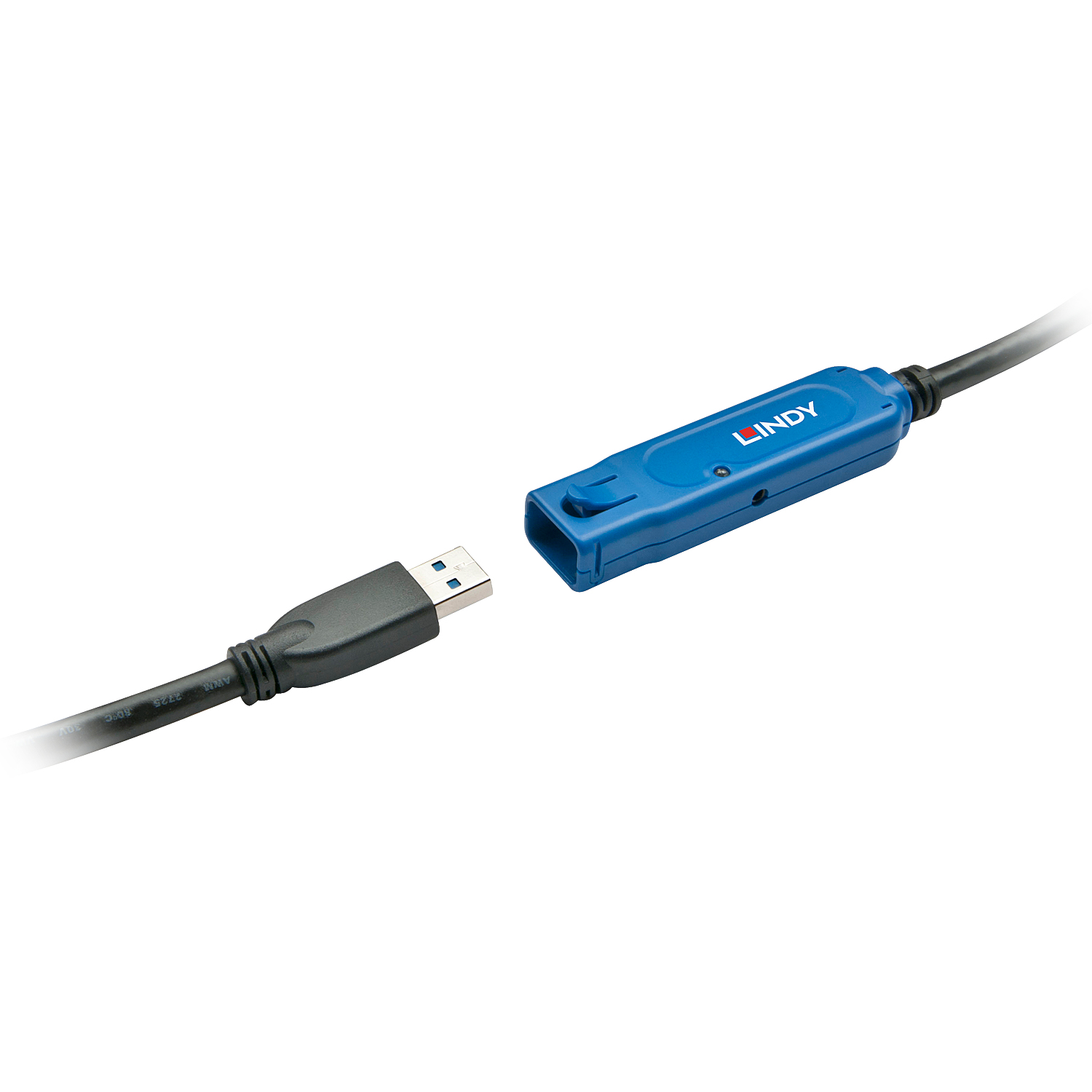

    Lindy 15m USB 3.0 Active Extension Cable


    €146,30 ar pvn

    Artikuls: ST05097316
    Preces kods: 43229
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Īpašības USB 3.0
    Krāsa Zelta
    Krāsa Melna
    Īpašības USB
    Cable length15 m
    USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
    Connector 1USB A
    Connector 2USB A
    Connector 1 genderMale
    Connector 2 genderFemale
    Product colourBlack
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    AWG wire size24/24/20
    Connector materialNickel
    Contact materialBrass
    Connector contacts platingGold
    Cable jacket materialPolyvinyl chloride (PVC)
    Conductor materialTinned copper
    Connector housing materialPlastic
    Maximum data transfer rate5000 Mbit/s
    Cable typeRound cable
    Transmission mediumTwisted pair
    Nominal attenuation0.064MHz - 0.08dB .256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB
    CertificationCE, UKCA, FCC, RoHS, REACH, California Proposition 65
    Power note2.5/0.7mm DC Connector
    Cable diameter7 mm
    Bend radius (min)3.6 cm
    Connector 1 dimensions (WxDxH)15 x 49 x 8 mm
    Connector 2 dimensions (WxDxH)20 x 80 x 13 mm
    Weight1 kg
    Quantity per pack1 pc(s)
    Package width280 mm
    Package depth180 mm
    Package height10 mm
    Package weight1.35 kg
    Package typeBox
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Harmonized System (HS) code84733080
    Description
    Lindy 15m USB 3.0 Active Extension Cable. Cable length: 15 m, Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5000 Mbit/s, Connector contacts plating: Gold, Product colour: Black
    Description
    15m USB 3.0 Active Extension Pro | Cable length 15 m | Weight 1 kg | Ver. USB 3.2 Gen 1 (3.1 Gen 1) | Connector 1 USB A | Connector 2 USB A | Connector 1 gender Male | Connector 2 gender Female | Cable jacket material Polyvinyl chloride (PVC) | Maximum data transfer rate 5 Gbit/s | Maximum data transfer rate 5000 Mbit/s | Colour Black | Operating temperature (T-T) 0 - 50 °C
    weight1 kg
    gross weight1.35
    maximum data transfer rate5 Gbit/s
    cable length15 m
    cable typeRound cable
    country of originTW
    product colourBlack
    operating temperature (t-t)0 - 50 °C
    storage temperature (t-t)-20 - 60 °C
    package width280 mm
    package depth180 mm
    package height10 mm
    package weight1.35 kg
    certificationCE, UKCA, FCC, RoHS, REACH, California Proposition 65
    connector 1USB A
    connector 2USB A
    connector 1 genderMale
    connector 2 genderFemale
    harmonized system (hs) code84733080
    quantity per pack1 pc(s)
    package typeBox
    connector contacts platingGold
    conductor materialTinned copper
    awg wire size24/24/20
    usb versionUSB 3.2 Gen 1 (3.1 Gen 1)
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    cable diameter7 mm
    bend radius (min)3.6 cm
    connector housing materialPlastic
    connector 1 dimensions (wxdxh)15 x 49 x 8 mm
    connector 2 dimensions (wxdxh)20 x 80 x 13 mm
    connector materialNickel
    nominal attenuation0.064MHz - 0.08dB .256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB
    contact materialBrass
    power note2.5/0.7mm DC Connector
    transmission mediumTwisted pair
    net weight1.00
    packaging height11.50
    packaging lenght32.50
    packaging width20.00
    warranty2
    tech data sheetshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f3/67/97/62/629767f3d0ebe20d37a65eec/43229_TDS_v2.pdf
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6e/55/97/62/6297556ea7fecca6d5a65ee1/CE_DoC_DE_43229.pdf
    variation of43158
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6e/55/97/62/6297556ea7fecca6d5a65ee1/CE_DoC_DE_43229.pdf
    manualshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/90/67/97/62/62976790999c8d635dc13cdd/Lindy_43157_8_9_43229_MAN_0222.pdf
    Description

    Connectors

    • Connector A: USB Type A Male
    • Connector B: USB Type A Female
    • Power: 2.5/0.7mm DC Connector
    • Housing Material: Plastic
    • Connector Plating: Nickel
    • Pin Construction: Brass
    • Pin Plating: Gold Flash
    • Dimensions (approx.) WxDxH:
      • USB A Male: 15x49x8mm (0.59x1.93x0.31in)
      • USB A Female: 20x80x13mm (0.79x3.15x0.51in)
      • Repeater (1x): 84.5x15.5mm (3.33x0.61in)

    Cable Construction

    • Length: 15m (49.21ft)
    • Standard: USB 3.2 / 3.1 Gen 1 / 3.0
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 7mm +/- 0.15mm (0.28in +/- 0.01in)
    • Jacket Material: Half matt PVC low toxic
    • Conductor Material: Tinned Copper
    • Conductor Gauge: 24/24/20AWG
    • Shielding: AL Mylar and braid

    Specifications

    • Supported Bandwidth: 5 Gbps
    • Nominal Attenuation:
      • 0.064MHz - <0.08dB
      • .256MHz - <0.11dB
      • 0.512MHz - <0.13dB
      • 0.772MHz - <0.15dB
      • 1.0MHz - <0.20dB
      • 4MHz - <0.39dB
      • 8MHz - <0.57dB
      • 12MHz - <0.67dB
      • 24MHz - <0.95dB
      • 48MHz - <1.35dB
      • 96MHz - <1.90dB
      • 200MHz - <3.20dB
      • 400MHz - <5.80dB
    • Minimum Bend Radius: 36mm (1.42in)
    • Maximum Tensile Load: -
    • Operating Temperature: 0°C - 50°C (32°F - 122°F)
    • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
    • Transmission Medium: Twisted Pair
    • Transmission Technology: USB 3.1 Gen 1 /  3.0

    Miscellaneous

    • Packaging Type: Carton Box
    • Packaging Dimensions: 325x200x115mm (12.8x7.87x4.43in)
    • Net Weight: 1kg (2.2lb)
    • Gross Weight: 1.351kg (2.98lb)
    • Warranty (Years): 2
    • Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65, TAA

    Packaging Content

    • USB 3.0 Active Extension Pro 15m
    • Power Adapter Cable Nr. 70265
    • Lindy Manual

    Purchasing Information

    • No.: 43229
    • EAN: 4002888432290

    This product is also available in other lengths

    • 43158 - 8m (26.25ft)
    • 43157 - 10m (32.81ft)
    • 43159 - 10m (32.81ft) with Hub
    • 43361 - 20m (65.62ft)
    • 43362 - 30m (98.42ft)



    CE Doc: CE_DoC_DE_43229.pdf
    Tech Data Sheets: 43229_TDS_v2.pdf
    Manuals: Lindy_43157_8_9_43229_MAN_0222.pdf
