Iepriekšējais produktsLindy USB 2.0 type C/A Adap...

Nākamais produktsLindy USB 3.0 Active Extens...

Ražotājs: LINDY

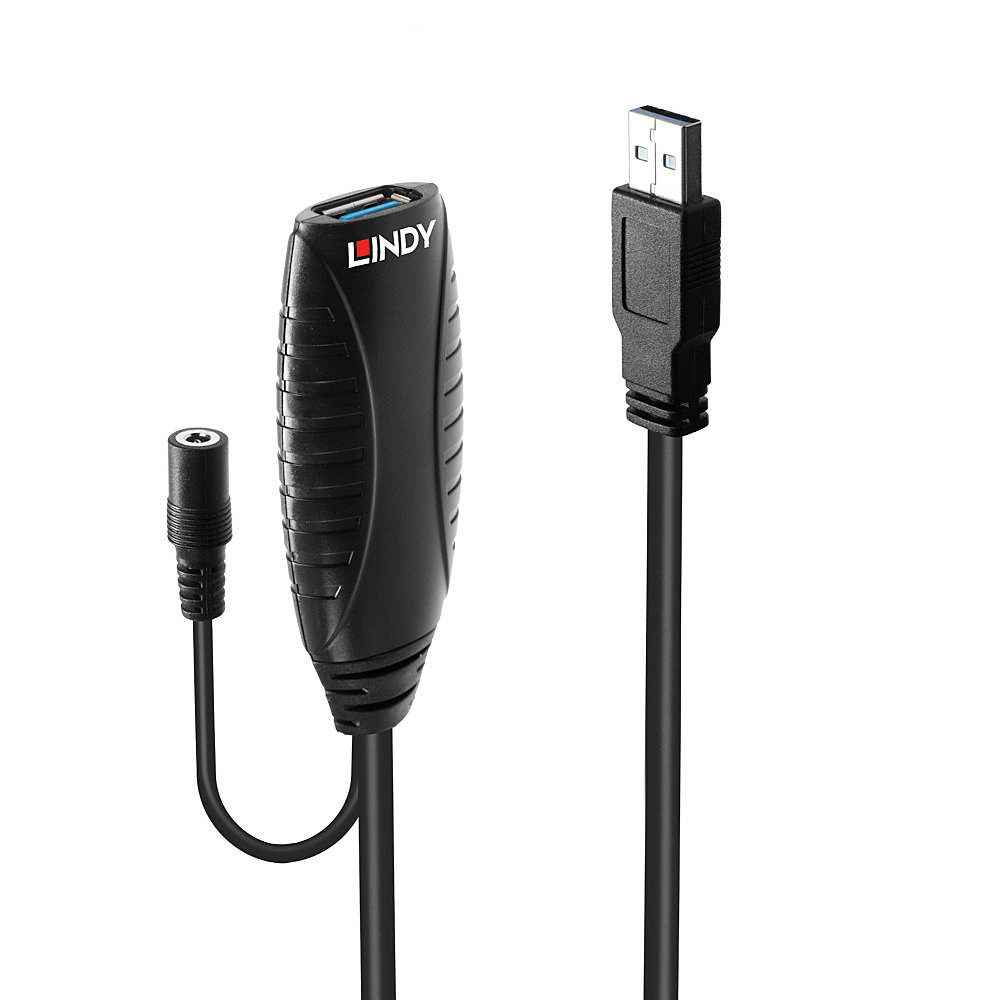

Lindy USB 3.0 Active Extension 10m

€56,93 ar pvn

Artikuls: ST05366375

Preces kods: 43156

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
PL	8 - 15 dienās	16	€56,93 ar pvn
LV	7 - 12 dienās	1020	€93,55 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3
Specifikācija 4

Krāsa	Melna
Īpašības	USB 3.0
Krāsa	Zelta
Īpašības	USB

Cable length	10 m
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB A
Connector 1 gender	Male
Connector 2 gender	Female
Product colour	Black
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	28/28/22
Connector material	Nickel
Contact material	Copper
Connector contacts plating	Gold
Cable jacket material	Polyvinyl chloride (PVC)
Conductor material	Tinned copper
Connector shielding	Yes
Connector shield material	Aluminium
Connector housing material	Plastic
Maximum data transfer rate	5000 Mbit/s
Cable type	Round cable
Plug and Play	Yes
Transmission medium	Twisted pair
Nominal attenuation	(100 MHz, -1.5 dB) (1.25 GHz, -5.0 dB) (2.5 GHz, -7.5 dB) (7.5 GHz, -25 dB)
Certification	CE, UKCA, FCC, RoHS, REACH
Power note	3.5/1.35mm DC
Cable diameter	6 mm
Bend radius (min)	6 cm
Connector 1 dimensions (WxDxH)	16 x 37 x 9.8 mm
Connector 2 dimensions (WxDxH)	32 x 85 x 10 mm
Weight	515 g
Quantity per pack	1 pc(s)
Package width	140 mm
Package depth	90 mm
Package height	150 mm
Package weight	600 g
Package type	Box
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 70 °C
Harmonized System (HS) code	84733080
Description
Description	Lindy USB 3.0 Active Extension 10m. Cable length: 10 m, Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5000 Mbit/s, Connector contacts plating: Gold, Product colour: Black

Description
	10m USB 3.0 Active Extension \| Cable length 10 m \| Weight 515 g \| Ver. USB 3.2 Gen 1 (3.1 Gen 1) \| Connector 1 USB A \| Connector 2 USB A \| Connector 1 gender Male \| Connector 2 gender Female \| Cable jacket material Polyvinyl chloride (PVC) \| Maximum data transfer rate 5 Gbit/s \| Maximum data transfer rate 5000 Mbit/s \| Colour Black \| Operating temperature (T-T) 0 - 55 °C

plug and play

Yes

weight

515 g

gross weight

0.50

maximum data transfer rate

5 Gbit/s

cable length

10 m

cable type

Round cable

country of origin

product colour

Black

operating temperature (t-t)

0 - 55 °C

storage temperature (t-t)

-20 - 70 °C

package width

140 mm

package depth

90 mm

package height

150 mm

package weight

600 g

certification

CE, UKCA, FCC, RoHS, REACH

connector 1

USB A

connector 2

USB A

connector 1 gender

Male

connector 2 gender

Female

harmonized system (hs) code

84733080

quantity per pack

1 pc(s)

package type

Box

connector contacts plating

Gold

conductor material

Tinned copper

awg wire size

28/28/22

connector shielding

Yes

connector shield material

Aluminium

usb version

USB 3.2 Gen 1 (3.1 Gen 1)

connector 1 form factor

Straight

connector 2 form factor

Straight

cable jacket material

Polyvinyl chloride (PVC)

cable diameter

6 mm

bend radius (min)

6 cm

connector housing material

Plastic

connector 1 dimensions (wxdxh)

16 x 37 x 9.8 mm

connector 2 dimensions (wxdxh)

32 x 85 x 10 mm

connector material

Nickel

nominal attenuation

(100 MHz, -1.5 dB) (1.25 GHz, -5.0 dB) (2.5 GHz, -7.5 dB) (7.5 GHz, -25 dB)

contact material

Copper

power note

3.5/1.35mm DC

transmission medium

Twisted pair

net weight

0.43

packaging height

33.50

packaging lenght

32.40

packaging width

4.00

warranty

tech data sheets

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f3/67/97/62/629767f3d0ebe20d37a65ef7/43156_TDS_v1.pdf

ce doc

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6f/55/97/62/6297556fa7fecca6d5a65ef3/CE_DoC_DE_43156.pdf

ce docs

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6f/55/97/62/6297556fa7fecca6d5a65ef3/CE_DoC_DE_43156.pdf

Description

Connectors

Connector A: USB Type A Male
Connector B: USB Type A Female
Power: 3.5/1.35mm DC Connector
Housing Material: Plastic
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: Golden
Dimensions (approx.) WxDxH:
- USB A Male: 16x37x9.8mm (0.63x1.46x0.39in)
- USB A Female: 32x85x10mm (1.26x3.35x0.39in)

Cable Construction

Length: 10m (32.81ft)
Standard: USB 3.2 / 3.1 Gen 1 / 3.0
Colour: Black
Type: Round
Jacket Diameter: 6mm (0.24in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 28/28/22AWG
Shielding: 85% Aluminium magnesium braid

Specifications

Supported Bandwidth: 5 Gbps
Nominal Attenuation:
- (100 MHz, -1.5 dB)
- (1.25 GHz, -5.0 dB)
- (2.5 GHz, -7.5 dB)
- (7.5 GHz, -25 dB)
Minimum Bend Radius: 60mm (2.36in)
Maximum Tensile Load: -
Operating Temperature: 0°C - 55°C (32°F - 131°F)
Storage Temperature: -20°C - 70°C (-4°F - 185°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 3.2 / 3.1 Gen 1 / 3.0

Miscellaneous

Packaging Type: Polybag
Packaging Dimensions: 324x335mm (12.76x13.19in)
Net Weight: 0.515kg (1.14lb)
Gross Weight: 0.6kg (1.32lb)
Warranty (Years): 2
Product Compliance: CE, FCC, RoHS & REACH

Packaging Content

USB 3.0 Active Extension 10m

Purchasing Information

No.: 43156
EAN: 4002888431569

This product is also available in other lengths

43155 - 5m (16.4ft)

CE Doc: CE_DoC_DE_43156.pdf
Tech Data Sheets: 43156_TDS_v1.pdf
