    Ražotājs: LINDY

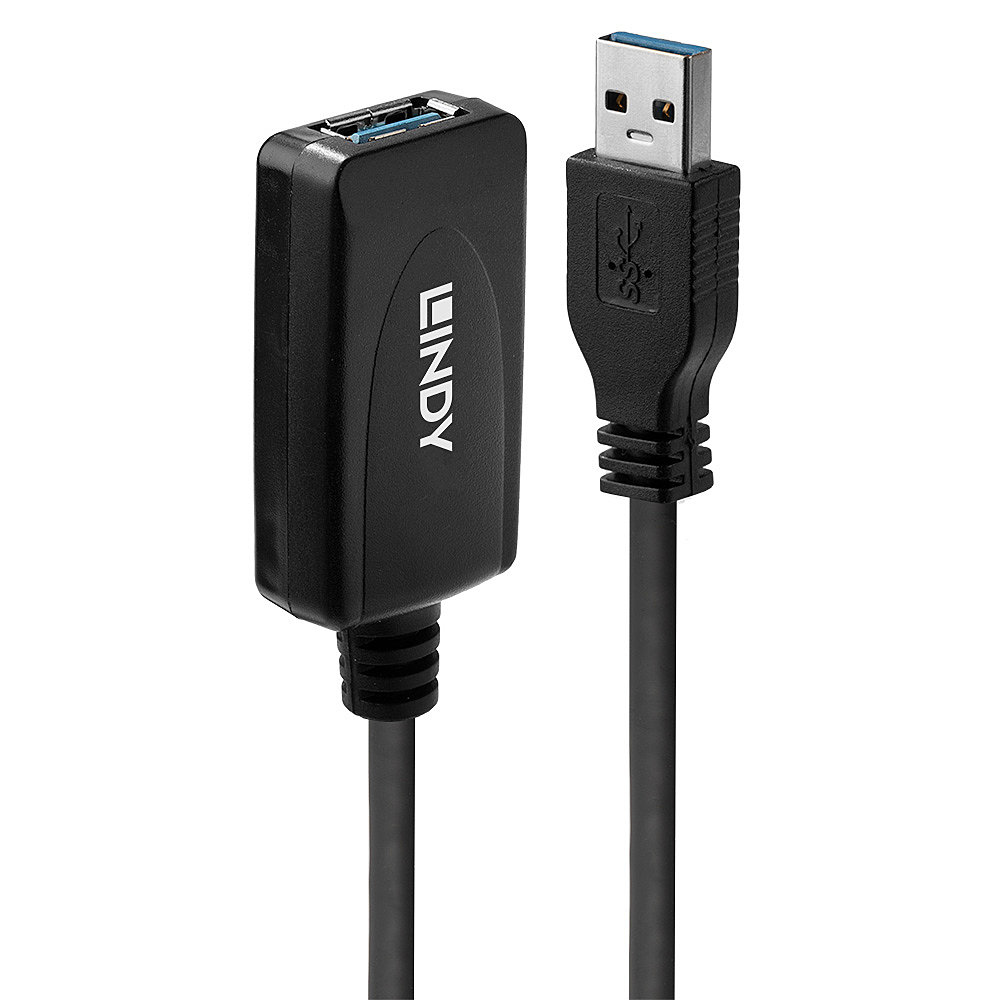

    Lindy USB 3.0 Active Extension, 5m


    €31,81 ar pvn

    Artikuls: ST05559206
    Preces kods: 43155
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL
    LV

    Specifikācija
    Krāsa Zelta
    Īpašības USB 3.0
    Krāsa Melna
    Īpašības USB
    Cable length5 m
    USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
    Connector 1USB A
    Connector 2USB A
    Connector 1 genderMale
    Connector 2 genderFemale
    Product colourBlack
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    AWG wire size28/24
    Connector materialGold
    Contact materialBrass
    Connector contacts platingGold
    Cable jacket materialPolyvinyl chloride (PVC)
    Conductor materialTinned copper
    Connector shieldingYes
    Connector shield materialAluminium
    Connector housing materialPlastic
    Maximum data transfer rate5000 Mbit/s
    Cable typeRound cable
    Transmission mediumTwisted pair
    Nominal attenuation1.5dB/2M@0.1GHz 5.0dB/2M@1.25GHz 7.5dB/2M@2.5GHz 25dB/2M@7.5GHz
    CertificationCE, UKCA, FCC, RoHS, REACH
    Cable diameter5.5 mm
    Bend radius (min)5.5 cm
    Connector 1 dimensions (WxDxH)16 x 48 x 6 mm
    Connector 2 dimensions (WxDxH)24 x 46 x 12 mm
    Weight220 g
    Quantity per pack1 pc(s)
    Package width237 mm
    Package depth60 mm
    Package height138 mm
    Package weight289 g
    Package typeBlister
    Operating temperature (T-T)0 - 60 °C
    Storage temperature (T-T)0 - 70 °C
    Harmonized System (HS) code84733080
    Description
    Lindy USB 3.0 Active Extension, 5m. Cable length: 5 m, Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5000 Mbit/s, Connector contacts plating: Gold, Product colour: Black
    Description
    5m USB 3.0 Active Extension | Cable length 5 m | Weight 220 g | Ver. USB 3.2 Gen 1 (3.1 Gen 1) | Connector 1 USB A | Connector 2 USB A | Connector 1 gender Male | Connector 2 gender Female | Cable jacket material Polyvinyl chloride (PVC) | Maximum data transfer rate 5 Gbit/s | Maximum data transfer rate 5000 Mbit/s | Colour Black | Operating temperature (T-T) 0 - 60 °C
    weight220 g
    gross weight0.23
    maximum data transfer rate5 Gbit/s
    cable length5 m
    cable typeRound cable
    country of originCN
    product colourBlack
    operating temperature (t-t)0 - 60 °C
    storage temperature (t-t)0 - 70 °C
    package width237 mm
    package depth60 mm
    package height138 mm
    package weight289 g
    certificationCE, UKCA, FCC, RoHS, REACH
    connector 1USB A
    connector 2USB A
    connector 1 genderMale
    connector 2 genderFemale
    harmonized system (hs) code84733080
    quantity per pack1 pc(s)
    package typeBlister
    connector contacts platingGold
    conductor materialTinned copper
    awg wire size28/24
    connector shieldingYes
    connector shield materialAluminium
    usb versionUSB 3.2 Gen 1 (3.1 Gen 1)
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    cable diameter5.5 mm
    bend radius (min)5.5 cm
    connector housing materialPlastic
    connector 1 dimensions (wxdxh)16 x 48 x 6 mm
    connector 2 dimensions (wxdxh)24 x 46 x 12 mm
    connector materialGold
    nominal attenuation1.5dB/2M@0.1GHz 5.0dB/2M@1.25GHz 7.5dB/2M@2.5GHz 25dB/2M@7.5GHz
    contact materialBrass
    transmission mediumTwisted pair
    net weight0.22
    packaging height25.50
    packaging lenght23.60
    packaging width3.20
    warranty2
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/42/c4/35/67/6735c44218eaf3e0453edf4b/CE_43155_V2.pdf
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/42/c4/35/67/6735c44218eaf3e0453edf4b/CE_43155_V2.pdf
    Description

    Connectors

    • Connector A: USB Type A Male
    • Connector B: USB Type A Female
    • Power: -
    • Housing Material: PVC
    • Connector Plating: Nickel
    • Pin Construction: Copper
    • Pin Plating: Gold
    • Dimensions (approx.) WxDxH:
      • USB A Male: 41x15.8x8.4mm (1.61x0.62x0.33in)
      • USB A Female: 61.5x25x14mm (2.42x0.98x0.55in)

    Cable Construction

    • Length:  5m (16.4ft)
    • Standard: USB 3.2 / 3.1 Gen 1 / 3.0
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 5.3mm (0.21in)
    • Jacket Material: PVC
    • Conductor Material: Tinned Copper
    • Conductor Gauge: 28AWG+22AWG
    • Shielding: 70% Tinned Copper

    Specifications

    • Supported Bandwidth: 5 Gbps
    • Nominal Attenuation: -12dB@2.5GHz
    • Minimum Bend Radius: 106mm (4.17in)
    • Operating Temperature: 0°C - 40°C (32°F - 104°F)
    • Storage Temperature: -10°C - 60°C (14°F - 140°F)
    • Transmission Medium: Twisted Pair
    • Transmission Technology: USB 3.2 / 3.1 Gen 1 / 3.0

    Miscellaneous

    • Packaging Type: Polybag
    • Packaging Dimensions: 236x255mm (9.29x10.04in)
    • Net Weight: 0.21kg (0.46lb)
    • Gross Weight: 0.23kg (0.51lb)
    • Warranty (Years): 2
    • Product Compliance: CE, FCC, RoHS & REACH, CP65

    Packaging Content

    • USB 3.0 Active Extension 5m

    Purchasing Information

    • No.: 43155
    • EAN: 4002888431552




    CE Doc: CE_43155_V2.pdf
