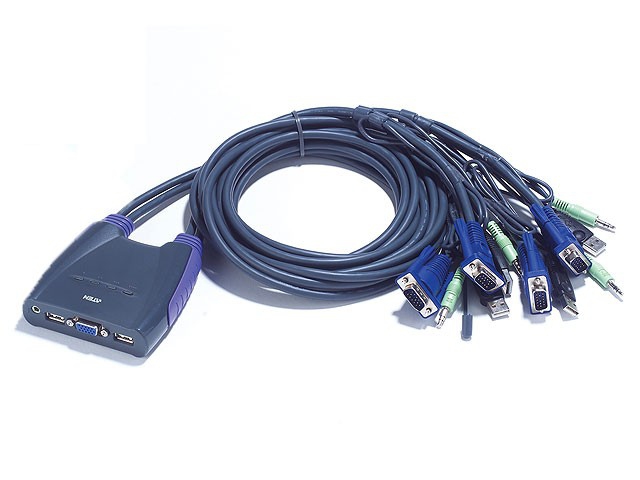

    • ATEN 4-Port USB VGA KVM Switch with Audio
    Ražotājs: ATEN

    ATEN 4-Port USB VGA KVM Switch with Audio


    €84,05 ar pvn

    Artikuls: ST02834555
    Preces kods: CS64US
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    Number of computers controlled4
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeVGA
    Console ports3.5mm headphone, USB A, VGA (D-Sub)
    VGA (D-Sub) ports quantity4
    Console USB ports quantity2
    USB 2.0 Type-A hub ports quantity4
    Audio connectionsY
    HD typeQXGA
    Maximum resolution2048 x 1536 pixels
    Scan interval1,5,99 s
    DDC2B supportY
    Product colourBlue
    Housing materialPlastic
    LED indicatorsY
    Hot keysY
    Built-in displayN
    Power sourceDC
    DC input voltage5 V
    Power consumption (typical)0.9 W
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width94.1 mm
    Depth97.2 mm
    Height26 mm
    Weight580 g
    Package width95 mm
    Package depth265 mm
    Package height220 mm
    Package weight765 g
    Quick installation guideY
    ManualY
    Master (outer) case net weight2.9 kg
    Harmonized System (HS) code85176200
    Master (outer) case width232 mm
    Master (outer) case length500 mm
    Master (outer) case height283 mm
    Master (outer) case gross weight4.24 kg
    Products per master (outer) case5 pc(s)
    Description
    ATEN 4-Port USB VGA KVM Switch with Audio. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,5,99 s. Product colour: Blue, Housing material: Plastic. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 0.9 W. Width: 94.1 mm, Depth: 97.2 mm, Height: 26 mm
    manufacturerATEN
    product groupKVM-Switches / PC-Shares
    product typeKVM-Switch, VGA
    colourblue
    weight0.58 kg
    height of packaging (single piece)230 mm
    width of packaging (single piece)100 mm
    depth of packaging (single piece)280 mm
    package weight (single piece)0.764 kg
    gross weight0.764
    current catalog edition24.1
    current catalog page3.06
    technical particularityLED-Anzeige für Kanalbelegung
    scope of delivery1x CS64US USB KVM-Switch mit 4 Ports, 2x Hotkey-Tastenauf...
    height2.6 cm
    width9.72 cm
    depth9.41 cm
    material (casing)Kunststoff
    quantity of pcs4
    supported pc-systemsUSB
    pc: monitor connection4x HD 15pol. ST
    pc: mouse/keyboard connection4x USB Typ A
    print button on devicenein
    switching over hot keysTastatur
    integrated hubnein
    19" compatiblenein
    cascadablenein
    hot plug compatiblenein
    max. resolution (nominal)2048x1536
    power supply unit requirednein
    analogue console: monitor connection1x HD 15pol. BU
    analogue console: mouse/keyboard connection4x USB Typ A
    pc: connection on moulded cablesja
    quantity of analogue consoles1
    integrated consolenein
    switching over scan runja
    switching over osdnein
    audio switchingLautsprecher
    audio switching separatelynein
    keyboard/mouse emulationja
    Description

    Specifikācija
    Number of computers controlled4
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeVGA
    Console ports3.5mm headphone, USB A, VGA (D-Sub)
    VGA (D-Sub) ports quantity4
    Console USB ports quantity2
    USB 2.0 Type-A hub ports quantity4
    Audio connectionsY
    HD typeQXGA
    Maximum resolution2048 x 1536 pixels
    Scan interval1,5,99 s
    DDC2B supportY
    Product colourBlue
    Housing materialPlastic
    LED indicatorsY
    Hot keysY
    Built-in displayN
    Power sourceDC
    DC input voltage5 V
    Power consumption (typical)0.9 W
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width94.1 mm
    Depth97.2 mm
    Height26 mm
    Weight580 g
    Package width95 mm
    Package depth265 mm
    Package height220 mm
    Package weight765 g
    Quick installation guideY
    ManualY
    Master (outer) case net weight2.9 kg
    Harmonized System (HS) code85176200
    Master (outer) case width232 mm
    Master (outer) case length500 mm
    Master (outer) case height283 mm
    Master (outer) case gross weight4.24 kg
    Products per master (outer) case5 pc(s)
    Description
    ATEN 4-Port USB VGA KVM Switch with Audio. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,5,99 s. Product colour: Blue, Housing material: Plastic. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 0.9 W. Width: 94.1 mm, Depth: 97.2 mm, Height: 26 mm
    manufacturerATEN
    product groupKVM-Switches / PC-Shares
    product typeKVM-Switch, VGA
    colourblue
    weight0.58 kg
    height of packaging (single piece)230 mm
    width of packaging (single piece)100 mm
    depth of packaging (single piece)280 mm
    package weight (single piece)0.764 kg
    gross weight0.764
    current catalog edition24.1
    current catalog page3.06
    technical particularityLED-Anzeige für Kanalbelegung
    scope of delivery1x CS64US USB KVM-Switch mit 4 Ports, 2x Hotkey-Tastenauf...
    height2.6 cm
    width9.72 cm
    depth9.41 cm
    material (casing)Kunststoff
    quantity of pcs4
    supported pc-systemsUSB
    pc: monitor connection4x HD 15pol. ST
    pc: mouse/keyboard connection4x USB Typ A
    print button on devicenein
    switching over hot keysTastatur
    integrated hubnein
    19" compatiblenein
    cascadablenein
    hot plug compatiblenein
    max. resolution (nominal)2048x1536
    power supply unit requirednein
    analogue console: monitor connection1x HD 15pol. BU
    analogue console: mouse/keyboard connection4x USB Typ A
    pc: connection on moulded cablesja
    quantity of analogue consoles1
    integrated consolenein
    switching over scan runja
    switching over osdnein
    audio switchingLautsprecher
    audio switching separatelynein
    keyboard/mouse emulationja
    Description
