Ražotājs: D-LINK

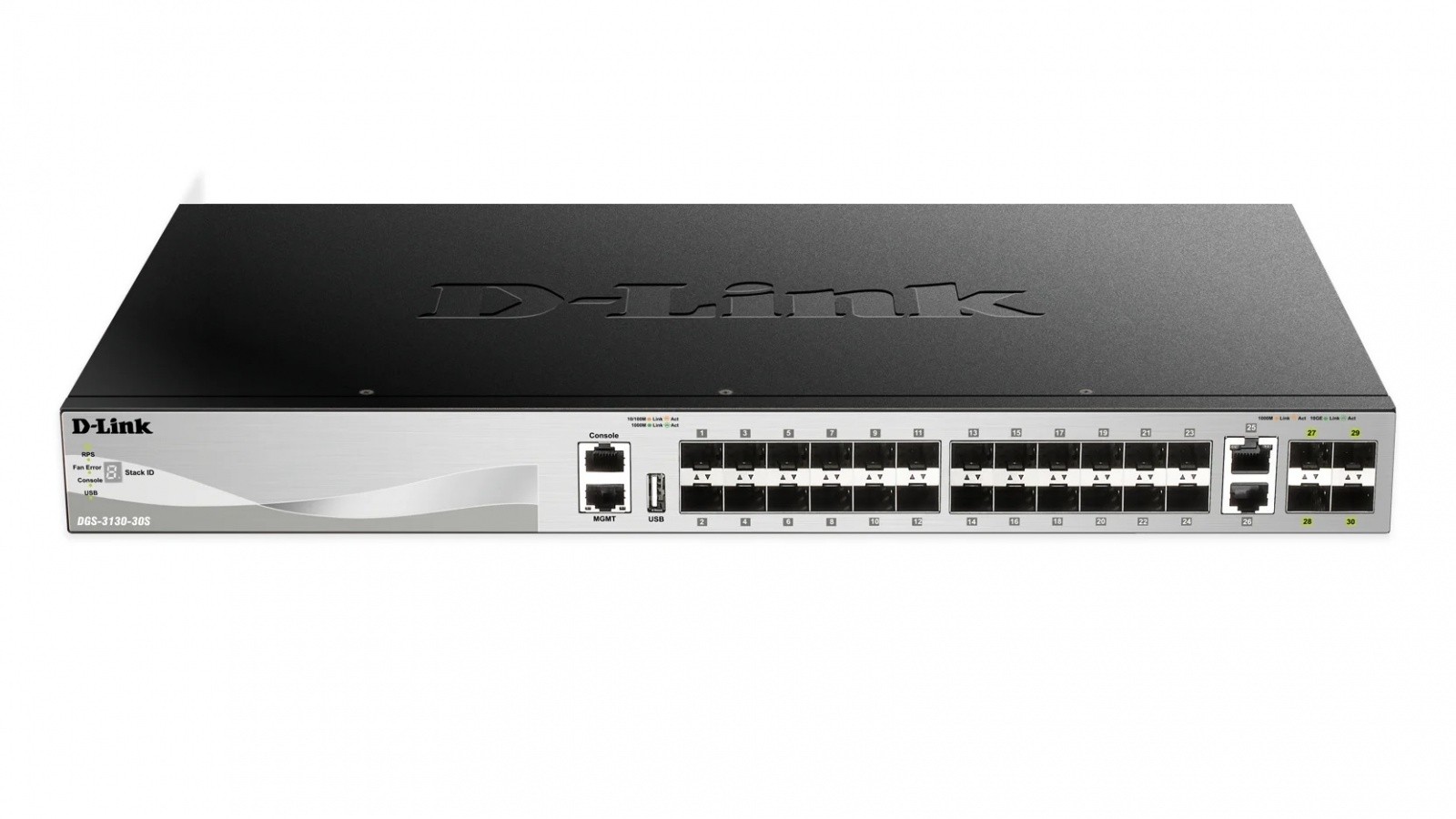

D-Link DGS-3130-30S/E network switch Managed L3 10G Ethernet (100/1000/10000) Grey

€1247,45 ar pvn

Artikuls: ST07501751

Preces kods: DGS-3130-30S/E

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	8 - 15 dienās	1	€1247,45 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3

Īpašības	RJ-45
Īpašības	USB
Portu skaits RJ-45	2
Portu skaits RJ-45	24

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
MIB support	RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737
Basic switching RJ-45 Ethernet ports quantity	2
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP module slots quantity	24
SFP+ module slots quantity	4
Fiber optic connector	SFP, SFP+
USB 2.0 ports quantity	1
Power connector	AC-in jack
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
MAC address table	16384 entries
Switching capacity	168 Gbit/s
Forwarding rate	125 Mpps
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	2 MB
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)	Yes
Access Control List (ACL) egress	512
Access Control List (ACL) ingress	2048
IGMP snooping	Yes
Security algorithms	SNMP, SNMPv3, SSH-2, SSL/TLS
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Queue scheduling algorithms	Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR)
Multicast support	Yes
Routing protocols	RIP
Stackable	Yes
Product colour	Grey
LED indicators	Yes
Number of fans	3 fan(s)
Certification	FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
Physical stacking (units)	9
Virtual stacking (units)	32
Noise level	52.3 dB
Mean time between failures (MTBF)	400490 h
Power source	DC
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	65.01 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	221.8 BTU/h
Width	440 mm
Depth	250 mm
Height	44 mm
Weight	3.5 kg
Description
Description	D-Link DGS-3130-30S/E. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 2, USB 2.0 ports quantity: 1. MAC address table: 16384 entries, Switching capacity: 168 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: AC-in jack

Gross depth (mm)	500.00
Gross depth (mm)	500.00
Gross height (mm)	90.00
Gross height (mm)	90.00
Gross weight	5.045
Gross width (mm)	380.00
Gross width (mm)	380.00
Net weight	3.90
Tare weight (kg)	1.145
Tare weight (kg)	1.145
Volume (m3)	0.02
Volume (m3)	0.02
