    • Review of the USB Uni-T UT658A
    Ražotājs: UNI-T

    Review of the USB Uni-T UT658A


    €14,88 ar pvn

    Artikuls: ST10474256
    Preces kods: UT658A
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL

    Specifikācija
    ManufacturerModelTypeInput and output portsData and charging protocolVoltage rangeVoltage resolutionCurrent rangeCurrent resolutionCapacityCapacity resolutionEnergyCircuit equivalent resistance measurementUSB data cable D+ voltageUSB data cable D- voltageData storageMaximum recording timeTime resolutionFast charging protocolColorWeightDimensionsCertifications
    Description

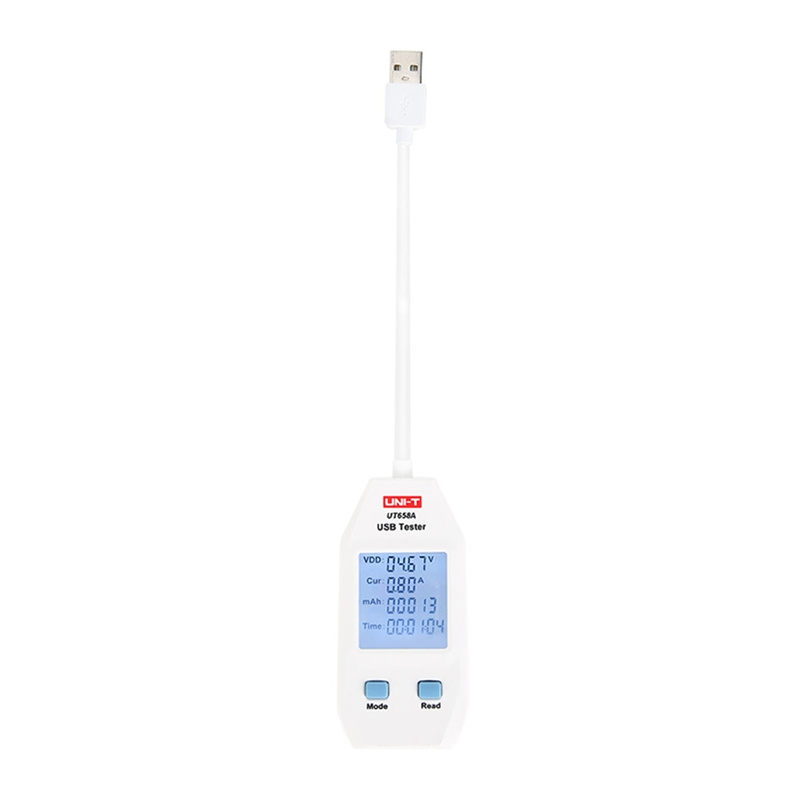

    Uni-T UT658A USB Tester

    The Uni-T UT658A is a compact USB tester designed to monitor the parameters of chargers, power banks, USB Type-A cables, and other power supply devices. The device measures voltage, current, energy, capacitance, equivalent circuit resistance, and D+ and D- line voltages, allowing you to quickly assess the power quality and condition of the tested accessory. It is a practical tool for service, engineering, and everyday equipment testing.

    Key measurements in a handy form

    The UT658A model supports USB Type-A ports and 2.0 and 3.0 protocols, offering voltage measurement in the range of 4–24 V DC and current from 0.05 to 3 A DC. The device also allows monitoring of capacitance up to 99,999 mAh, energy up to 1,000 Wh, equivalent circuit resistance from 1 to 480 Ω, and D+ and D- voltages up to 3.3 V. Support for the QC 3.0 protocol enhances the tester’s utility when working with fast-charging devices.

    Convenient data logging and compact design

    The UT658A allows you to save up to 10 data sets, with a maximum recording time of 99 h 59 min 59 s at a resolution of 1 s. Simultaneous on-screen display of key parameters facilitates daily work and speeds up result analysis. Weighing 50.6 g and measuring 93 × 45 × 13 mm, the model is significantly more compact, making it well-suited as a handy tool for quick diagnostics.

    Included in the set

    • USB tester
    • User manual

    Specifications

    Uni-T
    UT658A
    USB tester
    USB Type-A
    2.0 / 3.0
    4~24V DC
    0.01V
    0.05~3A DC
    0.01A
    0~99999mAh
    1mAh
    0~1000Wh
    1~480Ω
    0~3.3V
    0~3.3V
    10 sets
    99h 59min 59sec
    1s
    QC 3.0
    White
    50.6g
    93mm x 45mm x 13mm
    CE, UKCA
    Description
    Uni-T UT658A USB tester The Uni-T UT658A is a USB tester designed to monitor the parameters of chargers, power banks, USB Type-A cables, and other power supply devices. The device measures voltage in the range of 4–24 V DC, current from 0.05 to 3 A DC, capacity up to 99,999 mAh, energy up to 1000 Wh, equivalent circuit resistance from 1 to 480 Ω, and D+ and D- data line voltages up to 3.3 V, allowing for a quick assessment of power quality and the condition of the tested equipment. The model supports USB Type-A ports, USB 2.0 and 3.0 standards, and QC 3.0 fast charging. Additionally, it allows for the storage of 10 data sets and the recording of measurements for up to 99 hours, 59 minutes, and 59 seconds with a resolution of 1 second. Simultaneous display of key parameters on the screen facilitates result analysis, while the compact dimensions of 93 × 45 × 13 mm and a weight of 50.6 g make the device convenient for everyday use and easy to carry. Included USB tester User manual Specifications Manufacturer Uni-T Model UT658A Product type USB tester Input and output ports USB Type-A Data transmission standards USB 2.0 / 3.0 Voltage measurement range 4–24 V DC Voltage resolution 0.01 V Current measurement range 0.05–3 A DC Current resolution 0.01 A Capacity measurement range 0–99,999 mAh Capacity resolution 1 mAh Energy measurement range 0–1000 Wh Circuit equivalent resistance range 1–480 Ω Data line D+ voltage range 0–3.3 V Data line D- voltage range 0–3.3 V Data logging memory 10 data sets Maximum recording time 99 h 59 min 59 s Time resolution 1 s Supported fast charging protocols QC 3.0 Color White Dimensions 93 × 45 × 13 mm Weight 50.6 g Certifications CE, UKCA

    Specifikācija
    ManufacturerModelTypeInput and output portsData and charging protocolVoltage rangeVoltage resolutionCurrent rangeCurrent resolutionCapacityCapacity resolutionEnergyCircuit equivalent resistance measurementUSB data cable D+ voltageUSB data cable D- voltageData storageMaximum recording timeTime resolutionFast charging protocolColorWeightDimensionsCertifications
    Description

    Uni-T UT658A USB Tester

    The Uni-T UT658A is a compact USB tester designed to monitor the parameters of chargers, power banks, USB Type-A cables, and other power supply devices. The device measures voltage, current, energy, capacitance, equivalent circuit resistance, and D+ and D- line voltages, allowing you to quickly assess the power quality and condition of the tested accessory. It is a practical tool for service, engineering, and everyday equipment testing.

    Key measurements in a handy form

    The UT658A model supports USB Type-A ports and 2.0 and 3.0 protocols, offering voltage measurement in the range of 4–24 V DC and current from 0.05 to 3 A DC. The device also allows monitoring of capacitance up to 99,999 mAh, energy up to 1,000 Wh, equivalent circuit resistance from 1 to 480 Ω, and D+ and D- voltages up to 3.3 V. Support for the QC 3.0 protocol enhances the tester’s utility when working with fast-charging devices.

    Convenient data logging and compact design

    The UT658A allows you to save up to 10 data sets, with a maximum recording time of 99 h 59 min 59 s at a resolution of 1 s. Simultaneous on-screen display of key parameters facilitates daily work and speeds up result analysis. Weighing 50.6 g and measuring 93 × 45 × 13 mm, the model is significantly more compact, making it well-suited as a handy tool for quick diagnostics.

    Included in the set

    • USB tester
    • User manual

    Specifications

    Uni-T
    UT658A
    USB tester
    USB Type-A
    2.0 / 3.0
    4~24V DC
    0.01V
    0.05~3A DC
    0.01A
    0~99999mAh
    1mAh
    0~1000Wh
    1~480Ω
    0~3.3V
    0~3.3V
    10 sets
    99h 59min 59sec
    1s
    QC 3.0
    White
    50.6g
    93mm x 45mm x 13mm
    CE, UKCA
    Description
    Uni-T UT658A USB tester The Uni-T UT658A is a USB tester designed to monitor the parameters of chargers, power banks, USB Type-A cables, and other power supply devices. The device measures voltage in the range of 4–24 V DC, current from 0.05 to 3 A DC, capacity up to 99,999 mAh, energy up to 1000 Wh, equivalent circuit resistance from 1 to 480 Ω, and D+ and D- data line voltages up to 3.3 V, allowing for a quick assessment of power quality and the condition of the tested equipment. The model supports USB Type-A ports, USB 2.0 and 3.0 standards, and QC 3.0 fast charging. Additionally, it allows for the storage of 10 data sets and the recording of measurements for up to 99 hours, 59 minutes, and 59 seconds with a resolution of 1 second. Simultaneous display of key parameters on the screen facilitates result analysis, while the compact dimensions of 93 × 45 × 13 mm and a weight of 50.6 g make the device convenient for everyday use and easy to carry. Included USB tester User manual Specifications Manufacturer Uni-T Model UT658A Product type USB tester Input and output ports USB Type-A Data transmission standards USB 2.0 / 3.0 Voltage measurement range 4–24 V DC Voltage resolution 0.01 V Current measurement range 0.05–3 A DC Current resolution 0.01 A Capacity measurement range 0–99,999 mAh Capacity resolution 1 mAh Energy measurement range 0–1000 Wh Circuit equivalent resistance range 1–480 Ω Data line D+ voltage range 0–3.3 V Data line D- voltage range 0–3.3 V Data logging memory 10 data sets Maximum recording time 99 h 59 min 59 s Time resolution 1 s Supported fast charging protocols QC 3.0 Color White Dimensions 93 × 45 × 13 mm Weight 50.6 g Certifications CE, UKCA
