    Iepriekšējais produktsARCTIC P8 Silent Pressure-O...
    Nākamais produktsARCTIC P9 PWM PST CO Case F...
    Ražotājs: ARCTIC

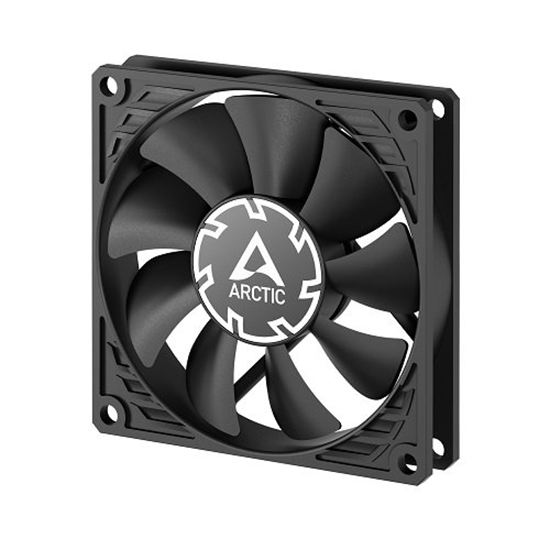

    Arctic P8 Slim PWM PST Fan 4-pin / 80mm


    €7,07 ar pvn

    Artikuls: ST08239166
    Preces kods: ACFAN00295A
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LT
    LV
    PL

    Specifikācija
    Pielietojums Korpusam 80 mm.
    Weight0.2
    Gross weight0.25
    Description

    The ARCTIC P8 Slim PWM PST fan (model ACFAN00295A) is a compact and efficient cooling solution for space-constrained environments.

    Technical Specifications:

    • Dimensions: 80 x 80 x 15 mm
    • Rotation Speed: 300–3000 RPM
    • Airflow: up to 22.5 CFM (38.23 m³/h)
    • Static Pressure: 2.35 mm H₂O
    • Noise Level: up to 22.5 dBa
    • Bearing Type: Fluid Dynamic Bearing
    • Speed Control: PWM (Pulse Width Modulation)
    • Cable Length: 400 mm
    • Operating Voltage: 12 V DC
    • Connector Type: 4-pin
    • Power Consumption: 1.14 W

    ARCTIC P8 Slim PWM PST ventilators (modelis ACFAN00295A) ir kompakts un efektīvs dzesēšanas risinājums ierobežotās telpās.

    Tehniskās specifikācijas:

    • Izmēri: 80 x 80 x 15 mm
    • Griešanās ātrums: 300–3000 apgr./min
    • Gaisa plūsma: līdz 22,5 CFM (38,23 m³/h)
    • Statiskā spiediena: 2,35 mm ūdens kolonna
    • Troksnis līmenis: līdz 22,5 dBa
    • Gultņa tips: Hidrodinamiskais
    • Ātruma kontrole: PWM (platuma impulsu modulācija)
    • Kabeļa garums: 400 mm
    • Barošanas spriegums: 12 V DC
    • Savienojuma tips: 4-pin
    • Patērētā jauda: 1,14 W

    Вентилятор ARCTIC P8 Slim PWM PST (модель ACFAN00295A) представляет собой компактное и эффективное решение для охлаждения в ограниченных пространствах.

    Технические характеристики:

    • Размеры: 80 x 80 x 15 мм
    • Скорость вращения: 300–3000 об/мин
    • Воздушный поток: до 22,5 CFM (38,23 м³/ч)
    • Статическое давление: 2,35 мм водяного столба
    • Уровень шума: до 22,5 дБа
    • Тип подшипника: Гидродинамический
    • Управление скоростью: PWM (широтно-импульсная модуляция)
    • Длина кабеля: 400 мм
    • Напряжение питания: 12 В DC
    • Тип подключения: 4-pin
    • Потребляемая мощность: 1,14 Вт
    Description
    Fan P8 Slim PWM PST, -pin, 80mm, lack.rFeatures:uIdeal for small spaces.uUnlike standard 80 mm case fans with a thickness of 25 mm, the P8 Slim PWM PST has a mounting height of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) uilds.u300 to 3000 rpm controlled via PWM PST.u With a wide speed range and innovative PWM Sharing Technology (PST), the P8 Slim PWM PST's fan speed can e controlled in sync with other fans. ARCTIC's PST fans come equipped with their own uilt-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can e connected in series.uHigh-quality sleeve earing.u Thanks to a comination of alloy and luricant developed in Germany, friction within the earing is minimized and greater efficiency is achieved. In addition to preventing luricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less earing noise is generated and the life of the fan is etended significantly.uOptimised for static pressure.uBecause the fan design of the P8 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enales etremely efficient cooling and good airflow — even with increased air resistance. This makes the P8 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.uMaimum smoothness, minimum viration.u The operating noise of the newly-developed ARCTIC motor is arely perceptile, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation virations of a conventional DC motor. As a result, there is far less viration on the housing at different speeds and no need for ruer uffering or additional decoupling.uImproved service life.u The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. The lower coil temperature therefore multiplies the service life and reduces frictional losses for more efficient operation.u0dB Mode - Zero rpm.u The speed of the P8 Slim PWM PST can e throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maimum performance on demand.rSpecifications:Fan speed: 300-3000 RPM (0 rpm elow 5% PWM).Air flow: 22.50 CFM 38.23 m³h.Static pressure: 2.35 (mm H2O).Fan earing: Fluid dynamic earing.Current voltage: 0.095A 12V DC.Connection: -pin connector.Cale length: 00+80 mm.Size: 808015 mm.Weight: 5 g.rWarranty: 6 years.

    Specifikācija
    Pielietojums Korpusam 80 mm.
    Weight0.2
    Gross weight0.25
    Description

    The ARCTIC P8 Slim PWM PST fan (model ACFAN00295A) is a compact and efficient cooling solution for space-constrained environments.

    Technical Specifications:

    • Dimensions: 80 x 80 x 15 mm
    • Rotation Speed: 300–3000 RPM
    • Airflow: up to 22.5 CFM (38.23 m³/h)
    • Static Pressure: 2.35 mm H₂O
    • Noise Level: up to 22.5 dBa
    • Bearing Type: Fluid Dynamic Bearing
    • Speed Control: PWM (Pulse Width Modulation)
    • Cable Length: 400 mm
    • Operating Voltage: 12 V DC
    • Connector Type: 4-pin
    • Power Consumption: 1.14 W

    ARCTIC P8 Slim PWM PST ventilators (modelis ACFAN00295A) ir kompakts un efektīvs dzesēšanas risinājums ierobežotās telpās.

    Tehniskās specifikācijas:

    • Izmēri: 80 x 80 x 15 mm
    • Griešanās ātrums: 300–3000 apgr./min
    • Gaisa plūsma: līdz 22,5 CFM (38,23 m³/h)
    • Statiskā spiediena: 2,35 mm ūdens kolonna
    • Troksnis līmenis: līdz 22,5 dBa
    • Gultņa tips: Hidrodinamiskais
    • Ātruma kontrole: PWM (platuma impulsu modulācija)
    • Kabeļa garums: 400 mm
    • Barošanas spriegums: 12 V DC
    • Savienojuma tips: 4-pin
    • Patērētā jauda: 1,14 W

    Вентилятор ARCTIC P8 Slim PWM PST (модель ACFAN00295A) представляет собой компактное и эффективное решение для охлаждения в ограниченных пространствах.

    Технические характеристики:

    • Размеры: 80 x 80 x 15 мм
    • Скорость вращения: 300–3000 об/мин
    • Воздушный поток: до 22,5 CFM (38,23 м³/ч)
    • Статическое давление: 2,35 мм водяного столба
    • Уровень шума: до 22,5 дБа
    • Тип подшипника: Гидродинамический
    • Управление скоростью: PWM (широтно-импульсная модуляция)
    • Длина кабеля: 400 мм
    • Напряжение питания: 12 В DC
    • Тип подключения: 4-pin
    • Потребляемая мощность: 1,14 Вт
    Description
    Fan P8 Slim PWM PST, -pin, 80mm, lack.rFeatures:uIdeal for small spaces.uUnlike standard 80 mm case fans with a thickness of 25 mm, the P8 Slim PWM PST has a mounting height of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) uilds.u300 to 3000 rpm controlled via PWM PST.u With a wide speed range and innovative PWM Sharing Technology (PST), the P8 Slim PWM PST's fan speed can e controlled in sync with other fans. ARCTIC's PST fans come equipped with their own uilt-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can e connected in series.uHigh-quality sleeve earing.u Thanks to a comination of alloy and luricant developed in Germany, friction within the earing is minimized and greater efficiency is achieved. In addition to preventing luricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less earing noise is generated and the life of the fan is etended significantly.uOptimised for static pressure.uBecause the fan design of the P8 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enales etremely efficient cooling and good airflow — even with increased air resistance. This makes the P8 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.uMaimum smoothness, minimum viration.u The operating noise of the newly-developed ARCTIC motor is arely perceptile, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation virations of a conventional DC motor. As a result, there is far less viration on the housing at different speeds and no need for ruer uffering or additional decoupling.uImproved service life.u The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. The lower coil temperature therefore multiplies the service life and reduces frictional losses for more efficient operation.u0dB Mode - Zero rpm.u The speed of the P8 Slim PWM PST can e throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maimum performance on demand.rSpecifications:Fan speed: 300-3000 RPM (0 rpm elow 5% PWM).Air flow: 22.50 CFM 38.23 m³h.Static pressure: 2.35 (mm H2O).Fan earing: Fluid dynamic earing.Current voltage: 0.095A 12V DC.Connection: -pin connector.Cale length: 00+80 mm.Size: 808015 mm.Weight: 5 g.rWarranty: 6 years.
