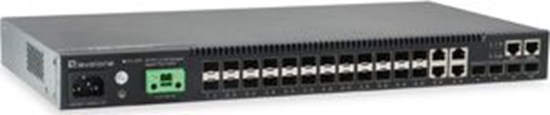

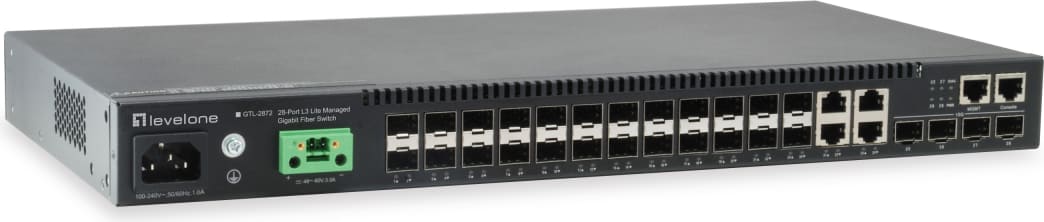

The GTL-2872 switch is a Gigabit Ethernet access switch with four 10G uplink ports. The switch is ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) to provide home users with triple-play services with up to Gigabit bandwidth. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks. The GTL-2872 switch is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment. ISPs can expand their services from home to business users by providing a more reliable and resilient network (ITU-T G.8032 ERPS), L2 VPNs, and advanced OAM (Operations, Administration, and Maintenance) functions to ensure service-level agreements.
| | Switch type | Managed | | Switch layer | L3 | | Quality of Service (QoS) support | Y | | ARP inspection | Y | | Basic switching RJ-45 Ethernet ports type | None | | Combo SFP ports quantity | 4 | | SFP module slots quantity | 20 | | SFP+ module slots quantity | 4 | | Fiber optic connector | SFP | | Console port | RJ-45 | | Networking standards | IEEE 802.1D, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3z | | 10G support | Y | | Full duplex | Y | | Link aggregation | Y | | Auto MDI/MDI-X | Y | | Auto-negotiation | Y | | VLAN support | Y | | Virtual LAN features | Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN | | Fiber ethernet cabling technology | 10GBASE-ER, 10GBASE-LR, 10GBASE-SR, 1000BASE-LHX, 1000BASE-SX, 1000BASE‑LX, 1000BASE‑ZX | | MAC address table | 16000 entries | | Switching capacity | 128 Gbit/s | | Forwarding rate | 95 Mpps | | Static route | Y | | Jumbo frames support | Y | | Jumbo frames | 9000 | | Access Control List (ACL) | Y | | IGMP snooping | Y | | Static port security | Y | | Loop protection | Y | | Authentication | MAC-based authentication, Port-based authentication, Web-based authentication | | Packet filtering | CDP/PVST+ | | Management protocols | CLI, WEB, TELNET | | GARP VLAN Registration Protocol (GVRP) | Y | | IPv4 & IPv6 features | Dual stack IPv4/IPv6 | | Rack mounting | Y | | Product colour | Black | | LED indicators | Diagnostic, Link, Power | | Country of origin | China | | Safety | UL (UL60950-1) | | Certification | CE, FCC, CISPR, BSMI | | Memory type | DRAM | | Internal memory | 512 MB | | Flash memory | 256 MB | | Telnet | Y | | Mean time between failures (MTBF) | 298951 h | | Redundant power supply (RPS) support | Y | | AC input voltage | 100 - 240 V | | AC input frequency | 50 - 60 Hz | | Input voltage | 48 - 60 V | | Power consumption (typical) | 21.48 W | | Power over Ethernet (PoE) | N | | Operating temperature (T-T) | 0 - 50 °C | | Operating relative humidity (H-H) | 10 - 90% | | Width | 440 mm | | Depth | 220 mm | | Height | 44 mm | | Weight | 2.82 kg | | Cables included | AC | | Quick start guide | Y | | Package type | Box | | Rack mount kit | Y | | Resource CD | Y | | Package width | 580 mm | | Package depth | 405 mm | | Package height | 80 mm | | Package weight | 3.77 kg | | Master (outer) case width | 600 mm | | Master (outer) case length | 435 mm | | Master (outer) case height | 340 mm | | Harmonized System (HS) code | 85176990 | | Master (outer) case gross weight | 16.6 kg | | Products per master (outer) case | 4 pc(s) |
|
|
