Производитель: LEVELONE

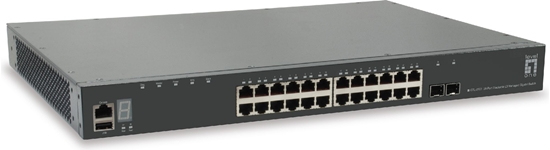

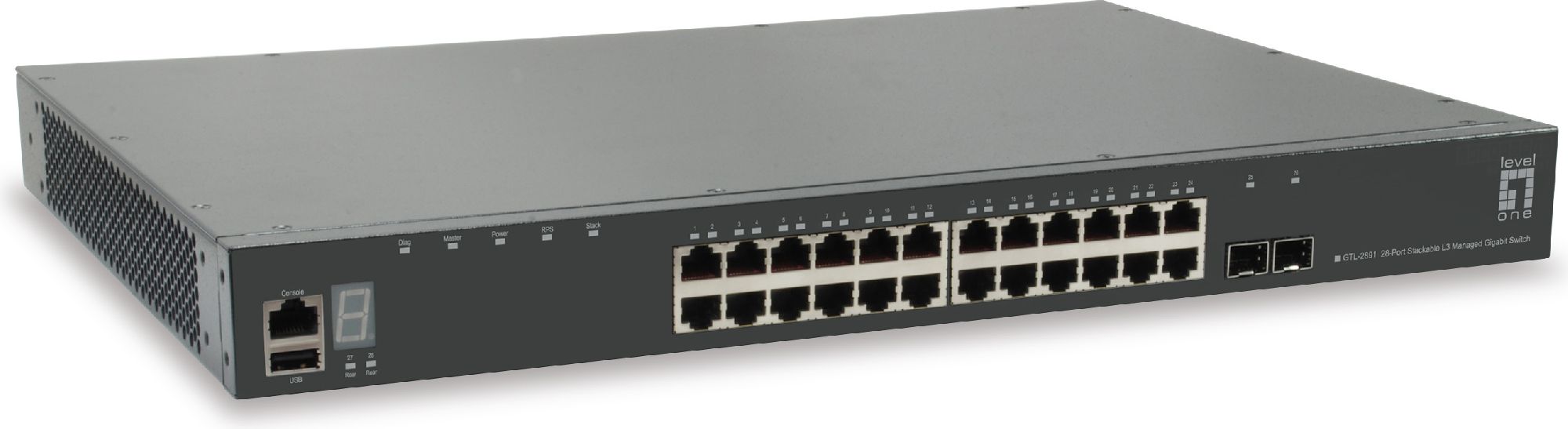

LevelOne GTL-2891 KILBY 28-Port L3 Managed-Switch

€1500,62 с налогом

Артикул: ST04498279

Код производителя: GTL-2891

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
LV	7 - 12 дня	6	€1500,62 с налогом
PL	8 - 15 дня	4	€1525,10 с налогом

Количество:

Specifications

Характеристики

1
Details 2

Количество портов RJ-45	8
Количество портов RJ-45	28
Свойства	RJ-45

power over ethernet (poe)

No

telnet

Yes

sflow

Yes

weight

3.7 kg

height

44 mm

width

440 mm

depth

315 mm

full duplex

Yes

switch type

Managed

stackable

Yes

country of origin

China

switch layer

L3

quality of service (qos) support

Yes

basic switching rj-45 ethernet ports quantity

24

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

Yes

link aggregation

Yes

mac address table

16000 entries

switching capacity

128 Gbit/s

forwarding rate

95.23 Mpps

store-and-forward

Yes

packet buffer memory

1.5 MB

access control list (acl)

Yes

rack mounting

Yes

product colour

Grey

led indicators

Yes

mean time between failures (mtbf)

904213 h

operating temperature (t-t)

0 - 45 °C

storage temperature (t-t)

-40 - 70 °C

operating relative humidity (h-h)

10 - 90%

storage relative humidity (h-h)

10 - 90%

package width

590 mm

package depth

390 mm

package height

133 mm

package weight

5.3 kg

certification

FCC, CE, VCCI Class A, WEEE, RoHS

harmonized system (hs) code

85176990

package type

Box

ac input voltage

100 - 240 V

ac input frequency

50 - 60 Hz

output current

1.5 A

cables included

AC, LAN (RJ-45)

master (outer) case gross weight

5.3 kg

master (outer) case width

590 mm

master (outer) case length

390 mm

master (outer) case height

133 mm

products per master (outer) case

1 pc(s)

power consumption (typical)

35 W

resource cd

Yes

quick start guide

Yes

igmp snooping

Yes

rack mount kit

Yes

internal memory

256 MB

spanning tree protocol

Yes

supported network protocols

IPv4/IPv6

static route

Yes

vlan support

Yes

firmware upgradeable

Yes

dos attack prevention

Yes

flash memory

128 MB

sfp+ module slots quantity

2

dhcp features

DHCP snooping, DHCP relay

static port security

Yes

ssh/ssl support

Yes

virtual lan features

Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN

management protocols

CLI/WEB, Telnet/SNMP v1/v2/v3, RMON I,BOOTP/DHCP, SNTP, DNS,

console port

RJ-45

traffic classification

Yes

arp inspection

Yes

bpdu filtering/protection

Yes

authentication

MAC-based authentication, Web-based authentication

physical stacking (units)

8

rubber feet

Yes

garp vlan registration protocol (gvrp)

Yes

Description

LevelOne GTL-2891. Slēdža tips: Vadīts, Slēdža līmenis: L3. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24, Konsoles pieslēgvieta: RJ-45. Pilns duplekss. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 128 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Statņa montāža
