Производитель: LEVELONE

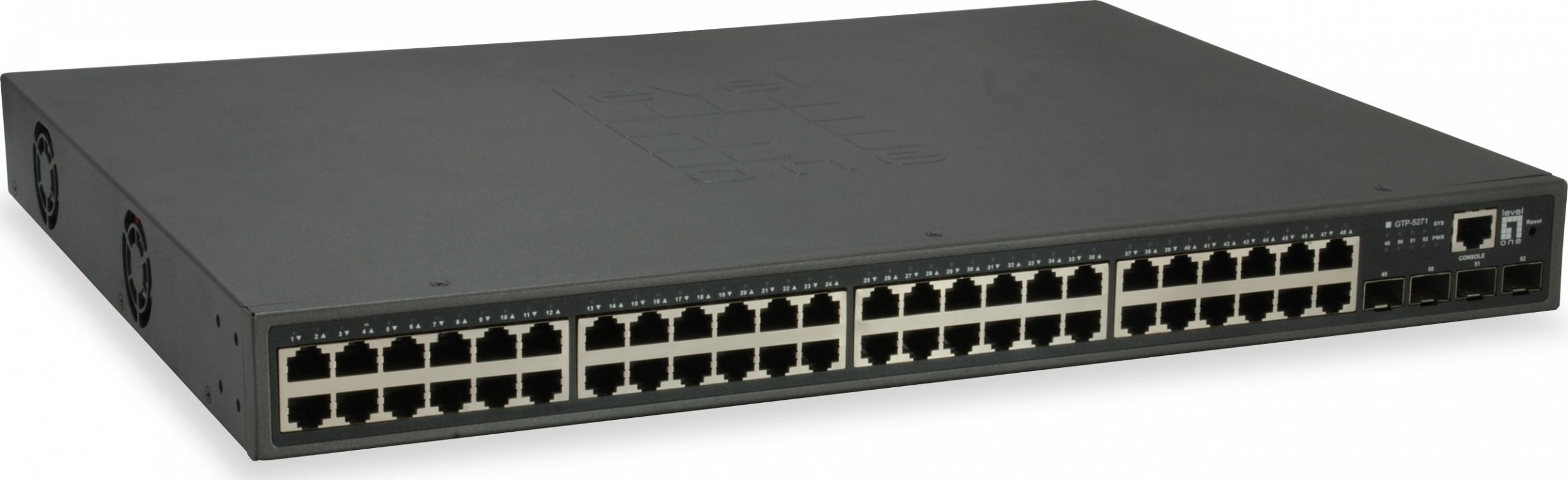

LevelOne GTP-5271 52-Port L3 Lite Managed Switch

€1243,18 с налогом

Артикул: ST07374833

Код производителя: GTP-5271

Сайт производителя

гарантия: 12 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	LV	7 - 12 дня	2	€1243,18 с налогом

Количество:

Specifications

Характеристики

1
Details 2

Количество портов RJ-45	52
Свойства	RJ-45

power over ethernet (poe)

Yes

telnet

Yes

weight

4.52 kg

height

44.5 mm

width

440 mm

depth

330 mm

switch type

Managed

country of origin

China

switch layer

quality of service (qos) support

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

gigabit ethernet (copper) ports quantity

power connector

AC-in jack

networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z

10g support

Yes

port mirroring

Yes

link aggregation

Yes

mac address table

16000 entries

forwarding rate

130.944 Mpps

store-and-forward

Yes

packet buffer memory

512 MB

access control list (acl)

Yes

multicast support

Yes

rack mounting

Yes

product colour

Grey

led indicators

Link, PoE, Power

power consumption (max)

473.7 W

power over ethernet (poe) ports quantity

total power over ethernet (poe) budget

400 W

operating temperature (t-t)

0 - 45 °C

storage temperature (t-t)

-40 - 70 °C

operating relative humidity (h-h)

10 - 90%

storage relative humidity (h-h)

5 - 90%

package width

596 mm

package depth

390 mm

package height

80 mm

package weight

6 kg

certification

harmonized system (hs) code

85176990

package type

Box

compliance certificates

RoHS

ac input voltage

100 - 240 V

ac input frequency

50 - 60 Hz

housing material

Metal

input current

6 A

cables included

jumbo frames support

Yes

security algorithms

SNMPv3

reset button

Yes

quick start guide

Yes

jumbo frames

12000

igmp snooping

Yes

rack mount kit

Yes

internal memory

32 MB

spanning tree protocol

Yes

vlan support

Yes

firmware upgradeable

Yes

dos attack prevention

Yes

sfp+ module slots quantity

broadcast storm control

Yes

rate limiting

Yes

dhcp features

DHCP relay, DHCP server, DHCP snooping

ssh/ssl support

Yes

number of vlans

4096

virtual lan features

MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN

console port

RJ-45

power over ethernet (poe) power per port

30 W

arp inspection

Yes

authentication

Guest VLAN, Web-based authentication

configuring location settings (cli)

Yes

multicast listener discovery (mld) snooping

v1/v2

ipv4 & ipv6 features

IPv6 Telnet

rubber feet

Yes

password protection

Yes

igmp proxy

Yes

garp vlan registration protocol (gvrp)

Yes

authentication type

RADIUS

queue scheduling algorithms

Priority queuing (PQ), Weighted Round Robin (WRR)

network virtualization technologies

Q-in-Q tunneling

qinq implementation

Selective QinQ

Description

LevelOne GTP-5271. Slēdža tips: Vadīts, Slēdža līmenis: L3. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 48, Konsoles pieslēgvieta: RJ-45. Adrešu tabulas izmērs: 16000 ieraksti. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Saspraudnis: AC barošanas spraudnis. Power over Ethernet (PoE). Statņa montāža
