Производитель: MSI

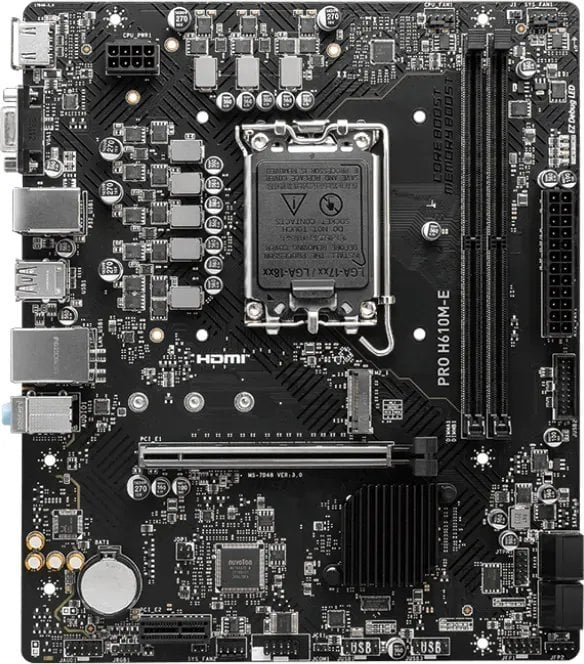

MSI PRO H610M-E Intel H610 LGA1700 DDR5

€85,60 с налогом

Артикул: ST07930751

Код производителя: PRO H610M-E

Сайт производителя

гарантия: 36 месяцы

Stock *

Склад	Доставка	Наличие	Цена
LT	3 - 5 дня	170	€85,60 с налогом
PL	9 - 12 дня	30	€90,39 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3
Details 4

Form Factor	mATX
Видеоинтерфейс	HDMI
Разъём процессора (Socket)	LGA 1700
Видеоинтерфейс	D-Sub

Model	PRO H610M-E
CPU socket	LGA1700
Processor family	Intel Celeron
Processor family	Intel Core i3
Processor family	Intel Core i5
Processor family	Intel Core i7
Processor family	Intel Pentium Gold
Processor family	Intel Core i9
Integrated CPU	No
Chipset manufacturer	Intel
Chipset type	INTEL H610
Memory type	DDR5
Number of DDR5 slots	2
Memory bus frequency	5600 MHz
Max memory size	96 (GigaBajt)
Expansion slots	1 x PCIe 3.0 x 1
Expansion slots	1 x PCIe 4.0 x 16
Max. number of SATA devices	4
RAID	No
Detailed data on disk/drive interfaces	1 x M.2 - M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G
Graphics	1 x HDMI - Obsługa HDMI 1.4 z HDR, maksymalna rozdzielczość 4K 30 Hz 1 x VGA
Sound card	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface	1 x 10/100/1000 Mbit/s
Network interface	Realtek RTL8111H Gigabit LAN
USB ports at back panel	6
USB ports on motherboard	6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports	0
FireWire (IEEE 1394)	No
COM connector / port	Yes
LPT connector / port	No
External connectors	1 x PS/2 Keyboard/MouseCombo
External connectors	1 x MIC
External connectors	1 x RJ-45
External connectors	1 x D-Sub
External connectors	1 x HDMI
External connectors	1 x Line In
External connectors	1 x Line Out
External connectors	4 x USB 2.0
External connectors	2 x USB 3.0
Onboard connectors	1 x Front panel audio header
Onboard connectors	1 x TPM header
Onboard connectors	2 x System panel header
Onboard connectors	1 x 4pin CPU fan
Onboard connectors	2 x 4pin Chassis fan
Onboard connectors	1 x 24pin ATX zasilanie
Onboard connectors	1 x M.2
Onboard connectors	4 x SATA III 6Gb/s
Onboard connectors	4 x USB 2.0/1.1
Onboard connectors	2 x USB 3.0 header
Onboard connectors	1 x Serial port header
Onboard connectors	4 x EZ Debug LED
Onboard connectors	1 x Chassis intrusion header
Onboard connectors	1 x RGB LED strip header
Form factor	micro ATX
Dimensions	200 x 236.16 mm
Supported operating systems	Windows 10
Supported operating systems	Windows 11
Designation	CE+WEEE
Width	265
Height	260
Depth	60
Weight	705

Description	MSI PRO H610M-E Intel H610 LGA1700 DDR5
VatType	VAT
Weight	0.700000000
Height	60.000000000
Width	260.000000000
Length	260.000000000
Description
Description	MSI PRO H610M-E Intel H610 LGA1700 2XDDR5 mATX HDMI VGA MB

Gross depth (mm)	257
Gross depth (mm)	257
Gross height (mm)	260
Gross height (mm)	260
Gross weight	1.64
Gross width (mm)	55
Gross width (mm)	55
Net weight	0.97
Tare weight (kg)	0.68
Tare weight (kg)	0.68
TI weight (kg)	0.05
TI weight (kg)	0.05
Volume (m3)	0.0036751
Volume (m3)	0.0036751
